DO GUIDE

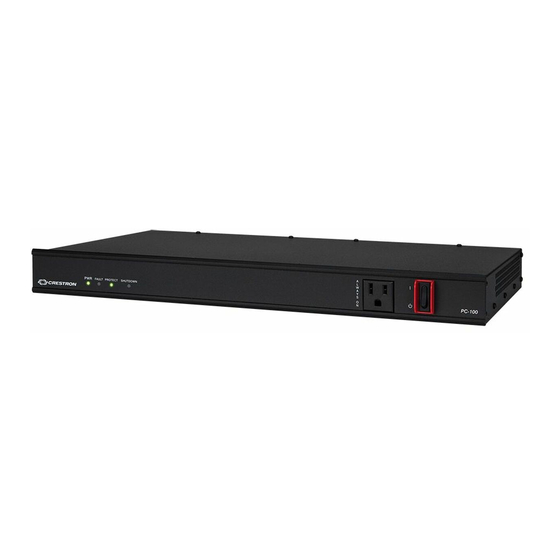

PC-100
8-Outlet Power Conditioner and Surge Protector
DO Install the Device
The Crestron PC-100 is designed to be rack mounted. It occupies 1U of rack space. Using a #1 or
®
#2 Phillips screwdriver, attach the two included rack ears to the device, and then mount the device
into the rack using four mounting screws (not included).
DO Connect the Device
Make connections to the PC-100 using Crestron power supplies for Crestron equipment.
CAUTION: The PC-100 must be plugged into a circuit that has a 20-amp circuit breaker.
Front Panel Connections
DO Check the Box
QTY PRODUCT
2 Bracket, Rack Ear, 1U
1 Connector, 2-Pin
Rear Panel Connections
NOTE:
protected from surges and has EMI filtering. However, if the unit is out of voltage range (93 to
135 volts), has incorrect wiring, or has failed surge protection, all eight rear panel outlets turn
off, but the front outlet remains on. If this occurs, the yellow SHUTDOWN LED lights and the
PWR LED turns yellow.
NOTE:
panel switch is turned on (moved to the up position). The outlets marked "DELAYED ON 1" turn
on one second after the front panel switch is turned on. The outlets marked "DELAYED ON 2"
turn on two seconds after the front panel switch is turned on.
NOTE:
internally opened while all surge protection is active. The connection is closed when any surge
protection is compromised. This provides surge protection notification to a connected control
system.
NOTE:
LED
ALWAYS ON:
PWR
Unswitched ac output
FAULT
PROTECTION Green
SHUTDOWN
SWITCHED ON 1 and 2:
Switched ac outputs
The front panel outlet is always on, independent of the front panel switch position. It is
The rear panel outlets marked "SWITCHED ON" turn on immediately when the front
The 2-pin PROTECTION port on the rear panel is an isolated contact and has the pins
The front panel LEDs behave as follows:
COLOR FUNCTIONALITY
Amber: Power is present on ac cord.
Amber/Green
Green: Switch is in ON position, and power is present.
One of the following is true:
- Surge protection is compromised.
Red
- No ground is detected.
- Line and neutral are reversed.
All surge protection is functional.
An over- or undervoltage condition is causing the
Amber/Green
outputs to turn off.
COLOR PART NUM.
2032122
2003574
DELAYED ON 1 and 2: PROTECTION:
To alarm, light, or
Switched ac outputs
logic input of a device Ground
