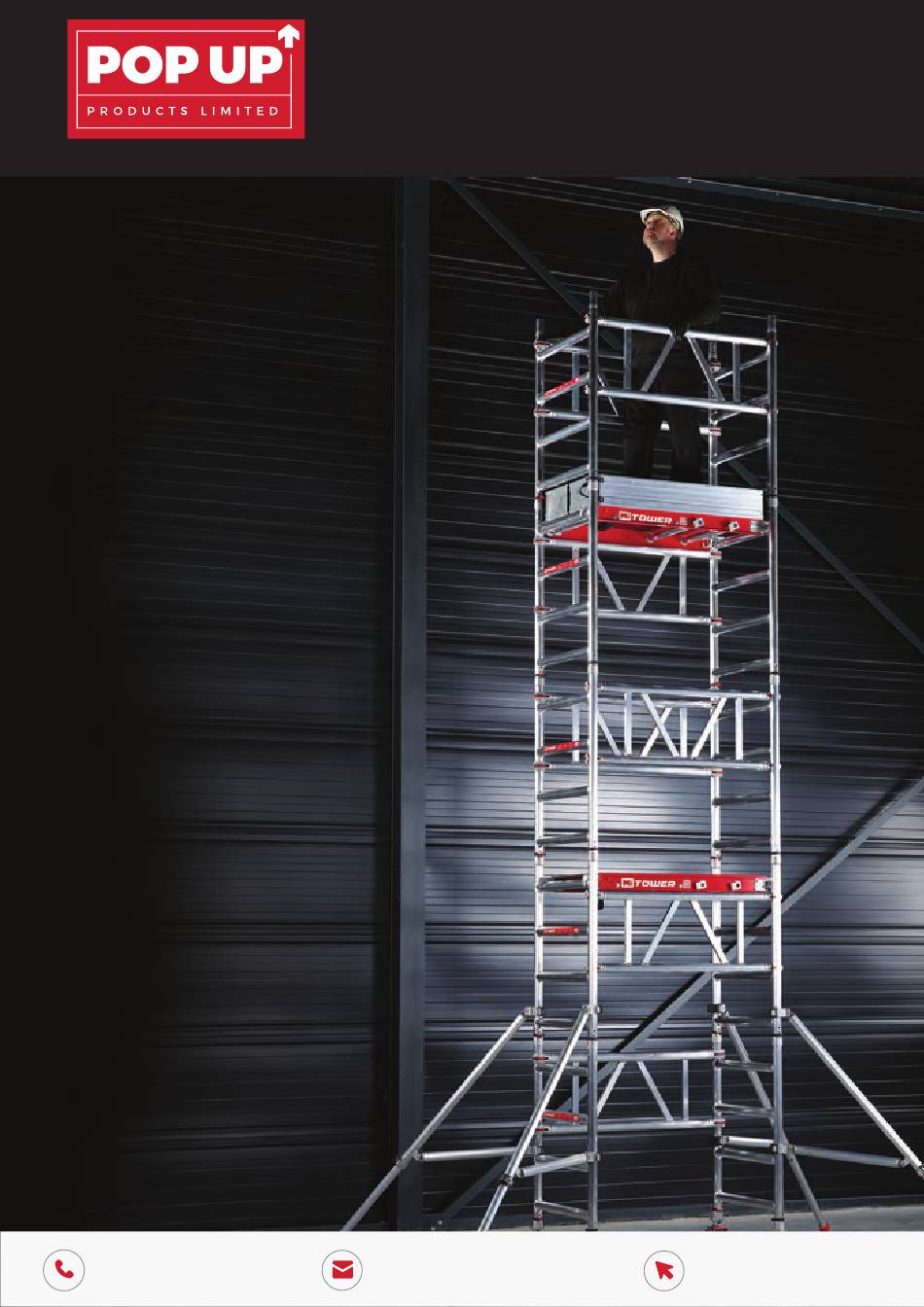

- Page 1 A S S E M B L Y G U I D E FO R M I TOW E R+ TOWER+ +44 (0)1244 833 933 info@popupproducts.co.uk popupproducts.co.uk...
-
Page 2: Table Of Contents
A S S E M B L Y G U I D E FO R M I TOW E R+ CONTENTS CONTENTS GETTING STARTED INTRODUCTION MITOWER+ 2M - ASSEMBLY 11-12 KNOW YOUR MITOWER+ MITOWER+ 3M - ASSEMBLY 13-14 KNOW YOUR MITOWER+’S COMPONENTS MITOWER+ 4M - ASSEMBLY 15-16 KNOW YOUR KIT LIST AND SPECIFICATIONS... -
Page 3: Introduction
INTRODUCTION MiTOWER+ is a safe, versatile and high quality tower. It can be built by ONE PERSON and provides a work platform for up to TWO PEOPLE. It is designed in accordance with the latest testing and quality standards. Our priority is to help ensure the safe operation of our products, so please pay particular attention to the safety tips on pages 7 and 8. -
Page 4: Know Your Mitower
KNOW YOUR MI TOWER+ PA R T S L I S T I N G 4 RUNG F RA M E A DJU STABLE LEG A ND CASTO R TO E BOA RD G UA RD RA IL BR AC E PA NEL TEL ES COP I C STABI LI S E R H ATCH PL ATFO RM Page 3... -
Page 5: Know Your Mitower+'S Components
KNOW YOUR MI TOWER+’S COMPONENTS 1 GUARDRAIL BRACE PANEL Claws are fitted to the guardrail brace panels and each has an automatic locking jaw which is released by simply moving the jaw’s trigger. The claw must only be attached to the frame with the opening facing outward. Attachment with the jaw’s opening facing inward will not fully protect the user if lent upon and may cause serious injury or death. -
Page 6: Know Your Kit List And Specifications
KNOW YOUR KIT LIST AND SPECIFICATIONS COMPONENT MATRIX AND WEIGHTS GROUND CONDITIONS Weight (Unit) 4 RUNG FRAME 3.55 TELESCOPIC OUTRIGGER 4.35 HATCH PLATFORM 12.20 GUARDRAIL BRACE PANEL 4.15 220MM ADJUSTABLE LEG 0.85 125MM LOCKING CASTOR 2.45 TOE BOARD SET 6.50 164.90 MITOWER+ WEIGHT (KG) 87.20... -
Page 7: Know Your Storage And Transport Pack
KNOW YOUR STORAGE AND TRANSPORT PACK TRANSPORT AND STORAGE TROLLEY COMPONENTS For ease of storage and of transportation, GUARDRAIL BRACE PANEL X2 MiTOWER+ has been designed so that all TOE BOARD SET components can be safely stored within the HATCH PLATFORM ADJUSTABLE LEG AND CASTOR X4 tower’s base assembly. -
Page 8: Safety Dos And Don'ts - Always
SAFETY DOS AND DON’TS - ALWAYS Read and understand this guide before you begin assembly. ALWAYS Ensure that all safety requirements are met and that MiTOWER+ is the correct access solution ALWAYS for the task you wish to perform. Ensure that MiTOWER+ is assembled and dismantled by a qualified, competent person. ALWAYS Cordon off the work area creating a zone with a radius that is 1m greater than the total height ALWAYS... -
Page 9: Safety Dos And Don'ts - Never
SAFETY DOS AND DON’TS - NEVER Use MiTOWER+ if you don’t understand something in this guide; please contact the supplier NEVER for advice. Assemble, use, move or dismantle MiTOWER+ if you are tired or unwell or if you are under the NEVER influence of alcohol or drugs. -
Page 10: Before You Start
BEFORE YOU START PREPARATION The floor area must be clear of any obstructions including materials and debris. Check that you have all the components necessary to construct the tower height you require. Check also each component for condition and correct function. If any part is missing or damaged/not working correctly it must be replaced before assembling the tower. -
Page 11: Getting Started
GETTING STARTED GETTING STARTED MiTOWER+ requires only one person to assemble and dismantle it. Your MiTOWER+ is supplied with uniform 1m high 4 rung frames which can be used at any stage of the assembly. During erection, the frames may be connected together to create 2m high frames which makes assembly both quicker and easier. -
Page 12: Mitower+ 2M - Assembly
MI TOWER+ 2m - ASSEMBLY STEP 1 FROM TROLLEY For ease of storage and transportation your MiTOWER+ is designed so that all the components can be safely stored within the tower’s base. Start by removing the free-standing components from within the trolley and stack safely nearby for use. - Page 13 MI TOWER+ 2m - ASSEMBLY STEP 5 Stand inside the tower and fit a platform on to the eighth rung, making sure that the wind-lock catches engage. STEP 6 Fit a stabiliser to each corner of the tower. Position the lower horizontal stabiliser coupling clamp just above the frame’s second rung, then secure the top stabiliser coupling clamp just above the frame’s fifth rung.
-
Page 14: Mitower+ 3M - Assembly
MI TOWER+ 3m - ASSEMBLY STEP 1 REPLICATE STEPS 1 AND 2 FROM 2M BUILD. Fit a platform on to the fourth rung, making sure that the wind-lock catches engage. Next fit a single 1m frame to a base frame and apply the frame clips, then fit a second 1m frame to the other base frame and apply the frame clips. - Page 15 MI TOWER+ 3m - ASSEMBLY STEP 5 Access the first platform. Fit one set of conjoined frames to each end of the tower and apply the frame clips. Next, attach the guardrail brace panel with its lower jaw positioned above the ninth frame rung. Ensure all claws are facing outward and correctly locked on to the frame tube.
-
Page 16: Mitower+ 4M - Assembly
MI TOWER+ 4m - ASSEMBLY STEP 1 REPLICATE STEPS 1 TO 6 FROM 2M BUILD. Extend and lock the four component hangers located on either side of the platform. From the ground place three guardrail brace panels onto the hangers on one side of the platform and two sets of conjoined four rung frames on the other side. - Page 17 MiTOWER+ 4m - ASSEMBLY STEP 5 Access the first platform and carefully fit the second platform on to the sixteenth rung, making sure that the wind-lock catches engage. Next extend and lock the four component hangers located on either side of the second platform. Move the two guardrail brace panels from the hangers on the first platform on to the the hangers of the second platform and then repeat the process with the toeboard set on the other side of the platform.
-
Page 18: Mitower+ 5M - Assembly
MI TOWER+ 5m - ASSEMBLY STEP 1 REPLICATE STEPS 1 TO 5 FROM 3M BUILD. Extend and lock the four component hangers located on either side of the platform. From the ground place three guardrail brace panels onto the hangers on one side of the platform and two sets of conjoined four rung frames on the other side. - Page 19 MI TOWER+ 5m - ASSEMBLY STEP 5 Access the second platform and carefully fit the third platform on to the twentieth rung, making sure that the wind-lock catches engage. Next extend and lock the four component hangers located on either side of the second platform.
-
Page 20: Mitower+ 6M - Assembly
MI TOWER+ 6m - ASSEMBLY STEP 1 REPLICATE STEPS 1 TO 3 FROM 4M BUILD. Extend and lock the four component hangers located on either side of the platform. From the ground place two guardrail brace panels onto the hangers on one side of the platform and a platform on the other side. - Page 21 MI TOWER+ 6m - ASSEMBLY STEP 6 Descend the tower and from the ground place a toeboard set on to the hangers of the tower platform on the same side that the two guardrail brace panels are hanging. Then place a platform on the hangers on the other side of the lower platform.
-
Page 22: 10 Point Pre-Use Safety Checklist
10 POINT PRE-USE SAFETY CHECKLIST 10 POINT PRE-USE CHECKLIST FOR USERS BEFORE USE Completed tower must be checked by a competent person. COMPONENTS Check all components are free from damage. CASTORS Ensure they are locked. ENVIRONMENT Check your MiTOWER+ is level. STABILISER COUPLER CLAMPS Check they are secure. -
Page 23: Registrations
REGISTRATIONS Page 22... - Page 24 popu p pr o duct s. co.uk + 44 (0) 1 24 4 8 33 933 in fo@ po p up pr oduct s. co. u k...
