Summary of Contents for POP UP DELTADECK

  • Page 1 A S S E M B L Y G U I D E ® DELTADECK +44 (0)1244 833 933 info@popupproducts.co.uk popupproducts.co.uk...
  • Page 2: Table Of Contents

    A S S E M B L Y G U I D E ® DELTADECK CONTENTS CONTENTS INTRODUCTION KNOW YOUR DELTADECK KNOW YOUR DELTADECK’S COMPONENTS KNOW YOUR DELTADECK’S HEIGHTS SAFETY DOS AND DON’TS - ALWAYS SAFETY DOS AND DON’TS - NEVER BEFORE YOU START DELTADECK - ASSEMBLY DELTADECK - DISASSEMBLY...
  • Page 3: Introduction

    (by user) relative to the project to be undertaken. This assembly guide has been compiled in accordance with BS EN 1298 and the DELTADECK is manufactured in accordance with ISO 9001 : 2015.

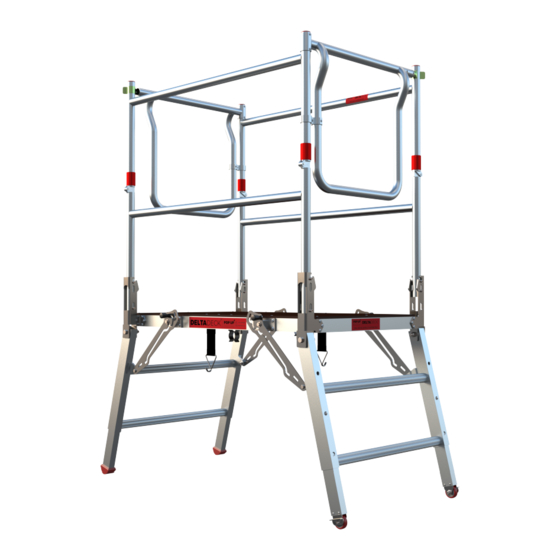

  • Page 4 ® KNOW YOUR DELTADECK PA R T S L I S T I N G GATE CATC HE S AD JU ST AB LE LEGS GATES LO CKING CAST O RS SI DE GUARD RA I L LO CK I N G D EVI C E S...
  • Page 5 ® KNOW YOUR DELTADECK COMPONENTS GATE CATCH The gate catch is a steel spring clip that can be released by pushing on the tab indicated by the arrow. To close the gate simply pull the gate and ensure the catch springs over the side guardrail vertical tube gripping it fully.
  • Page 6: Know Your Deltadeck

    ® KNOW YOUR DELTADECK COMPONENTS Cont..LEG ASSEMBLY The leg assembly holds the adjustable legs in place and also adjusts the height of the unit by using the leg adjustment levers. When not in use the leg assembly is packed under the platform and held in this position by the leg retaining clips.
  • Page 7: Know Your Deltadeck's Components

    ® KNOW YOUR DELTADECK HEIGHTS UPPER MIDDLE LOWER HEIGHT TABLE LEVER POS 1 LEVER POS 2 LEVER POS 3 (mm) (mm) (mm) LEG UPPER PIN LEG MIDDLE PIN LEG LOWER PIN Page 6...
  • Page 8: Safety Dos And Don'ts - Always

    ALWAYS Read and understand this guide before you begin assembly. ALWAYS Ensure that all safety requirements are met and that DELTADECK is the correct access solution for the task you wish to perform. ALWAYS Ensure that DELTADECK is assembled and dismantled by a qualified, competent person.
  • Page 9: Safety Dos And Don'ts - Never

    Use DELTADECK if you don’t understand something in this guide; please contact the supplier for NEVER advice. NEVER Assemble, use, move or dismantle DELTADECK if you are tired or unwell or if you are under the NEVER Use DELTADECK in adverse weather conditions which may endanger the user. NEVER Use in wind conditions of Beaufort Force 5 and above.
  • Page 10: Before You Start

    A copy of our Pre - Use checks, Inspection & Maintenance guide can be downloaded from our website. www.popupproducts.co.uk DISMANTLING YOUR DELTADECK DELTADECK is easily dismantled by simply reversing the assembly procedure. SAFE WORKING LOAD (SWL) ® DELTADECK The SWL of is 200kg, this includes the weight of the user plus tools and materials.
  • Page 11: Deltadeck - Assembly

    ® DELTADECK - ASSEMBLY STEP 1 Place the unit on the floor and leave the transport straps in place. STEP 2 Lift one end of the platform and simultaneously pull the leg assembly out, until the legs automatically lock in place.
  • Page 12: Deltadeck - Disassembly

    ® DELTADECK - DISASSEMBLY STEP 1 Identify the first side guardrail to collapse by looking for the side guardrail with the pin located in the lowest slot as shown here. STEP 2 Open both gates and rotate top half of side guardrail through 180 degrees (reversal of assembly procedure).
  • Page 13 ® DELTADECK po p up products . co. uk +44 (0 ) 12 44 83 3 933 info @ po pup produ cts . co.uk...
