Combination suction units
Installation and operating instructions
0297
9000-606-79/30
*9000-606-79/30*
VS 900 S,
VS 1200 S
VS 600
EN
Advertisement
Table of Contents
Related Manuals for Durr Dental VS 900 S
Summary of Contents for Durr Dental VS 900 S

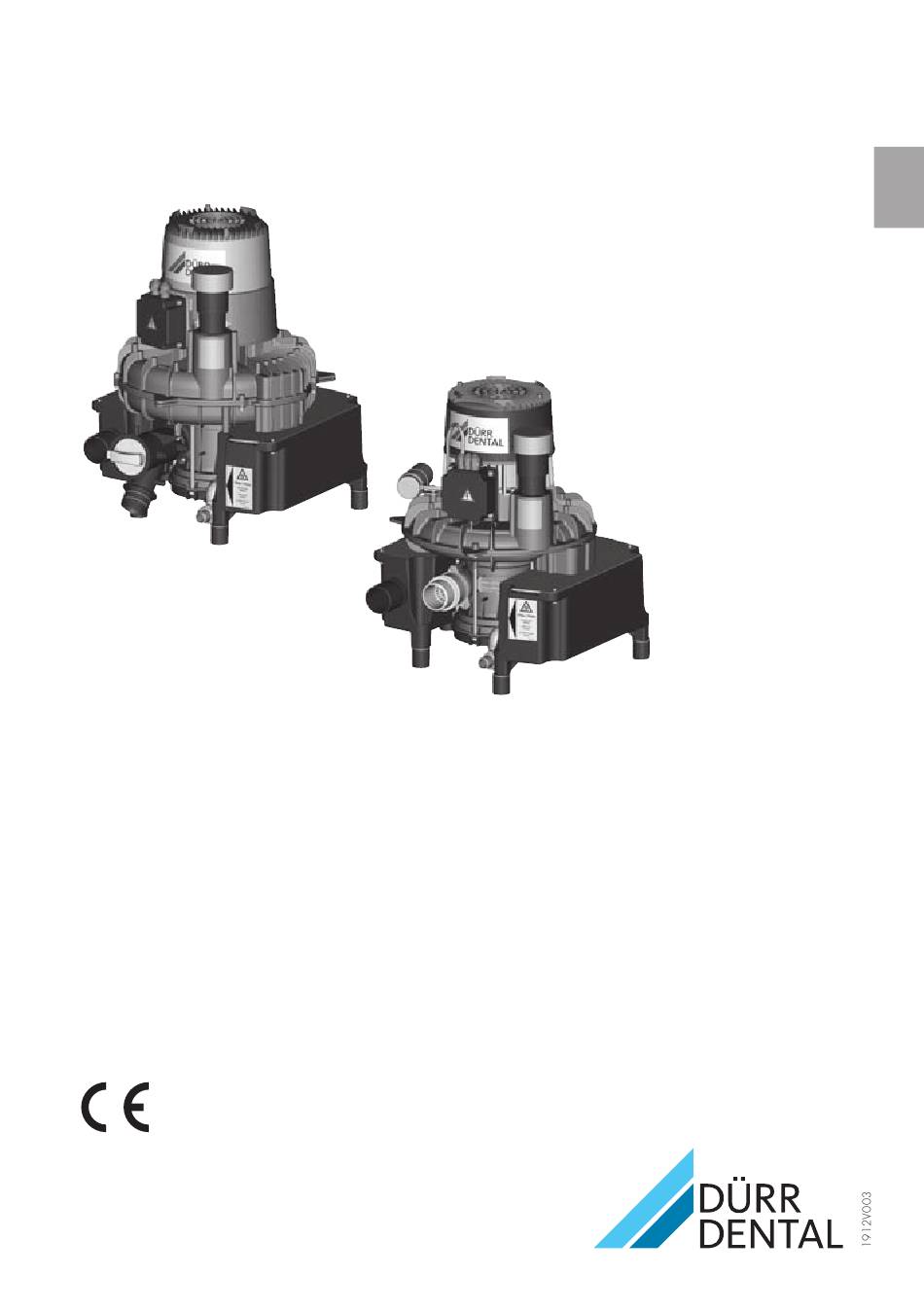

- Page 1 Combination suction units VS 900 S, VS 900 S, VS 1200 S VS 1200 S VS 600 VS 600 Installation and operating instructions 0297 9000-606-79/30 *9000-606-79/30*...
- Page 3 VS 600 ....11.2 Daily after the end of treatment . . VS 900 S ....11.3 Once or twice a week before the VS 1200 S .
- Page 4 Contents Troubleshooting 14 Tips for operators and service techni- cians ......15 Transporting the unit ....Appendix 16 Handover record .
- Page 5 7128-01/021; 7128-02; 7128-02/002; These symbols are used in the document and on 7128-02/003; 7128100900 or in the unit: VS 900 S Note, e.g. specific instructions regarding Order number: 7134-01; 7134-01/002; efficient and cost-effective use of the unit. 7134-01/021; 7134-02; 7134-02/002;...
- Page 6 Important information Safety CE labelling with the number of the noti- fied body Dürr Dental has designed and constructed this unit so that when used properly and for the Serial number intended purpose it does not pose any danger to people or property.
- Page 7 Important information The unit must not be used as a vacuum Specialist personnel ❯ cleaner. Operation Do not use chemicals containing chlorine or ❯ Unit operating personnel must ensure safe and foaming chemicals. correct handling based on their training and Operation in operating theatres of explosive ❯...
- Page 8 Important information Dürr Dental accepts no liability for dam- ages or injury resulting from the use of non-approved accessories or optional accessories, or from the use of non-origi- nal wear parts or replacement parts. The use of non-approved accessories, optional accessories or non-genuine wear parts / replacement parts (e.g.
- Page 9 Product description Product description Overview Combination suction unit Control box Set of connection fittings Suction hose Exhaust air hose Waste hose LW 20 9000-606-79/30 1912V003...
- Page 10 – OroCup 0732-100-57 for Modell 7138-02/003 VS 900 S, 230 V, 1~, 50 Hz 0732-100-61 for Modell 7138-03/002 (basic unit) ..... . . 7134-01...
- Page 11 Product description Ventilation kit for cabinet installa- tion ......7122-981-50 Exhaust air valve ....0732-020-00 Consumables The following materials are consumed during operation of the device and must be ordered...
- Page 12 Product description Technical data VS 600 Electrical data 7128-01 7128100900 Rated voltage 230, 1~ Mains frequency Nominal current ≤ 5.0 Start-up current ~ 22 Motor protection * Type of protection IP 24 Protection class Motor winding overheat protector Connections Æ 40 Suction connection (outside) Æ...
- Page 13 Product description Ambient conditions during operation Temperature °C +10 to +40 Relative humidity < 70 Classification Medical devices class 9000-606-79/30 1912V003...
- Page 14 Product description VS 600 Electrical data 7128-02 Rated voltage 400, 3~ 230, 3~ Mains frequency Nominal current ≤ 2.2 ≤ 2.3 ≤ 3.8 ≤ 4.0 Start-up current ~ 16 ~ 14 ~ 16 ~ 14 Motor protection * Type of protection IP 24 Protection class Max.
- Page 15 Product description Ambient conditions during operation Relative humidity < 70 Classification Medical devices class 9000-606-79/30 1912V003...
- Page 16 Product description VS 900 S Electrical data 7134-01 7134-02 Rated voltage 230, 1~ 400, 3~ Mains frequency Nominal current ≤ 7.4 ≤ 3.6 Start-up current ~ 32 ~ 25 Motor protection * 10.0 Type of protection IP 24 Protection class Max.
- Page 17 Product description Ambient conditions during operation Relative humidity < 70 Classification Medical devices class 9000-606-79/30 1912V003...
- Page 18 Product description VS 1200 S Electrical data 7138-02 7138-03 Rated voltage 230, 3~ 400, 3~ 230, 3~ 400, 3~ Mains frequency Nominal current ≤ 6.5 ≤ 3.8 ≤ 6.8 ≤ 3.9 Start-up current ~ 43 ~ 25 ~ 30 ~ 17 Motor protection * Type of protection IP 24...
- Page 19 Product description Ambient conditions during operation Relative humidity < 70 Classification Medical devices class 9000-606-79/30 1912V003...
- Page 20 VS 600 The type plate is located on the upper part of the turbine housing. Type plate VS 900 S, VS 1200 S The type plate is located on the upper part of the turbine housing. Type plate Evaluation of conformity...
- Page 21 Product description Operation 9000-606-79/30 1912V003...
- Page 22 Product description Motor Turbine wheel Separation turbine Cyclone separator Waste water pump Exhaust air muffler Diaphragm valve Waste water connection Intake nozzle 10 Exhaust air connection 11 Protective strainer 12 Auxiliary air valve The VS suction units are used in wet suction systems. The suction units can be installed on the same floor as the treatment units or on the floor underneath.
- Page 23 Assembly Hose materials Assembly For waste connections and suction lines only use the following hose types: – Flexible spiral hoses made of PVC with inte- Requirements grated spiral or equivalent hoses The unit can be installed on the same level as the –...
- Page 24 Assembly System components Current consumption of Cross-section unit [A] The system components listed below are required or recommended for various procedures > 25 and < 32 or for installation. > 32 and < 40 Control box > 40 and < 50 The unit is connected via a control box.
- Page 25 > 20 cm ent so that the waste water can drain off. Waste water connections must be imple- ❯ VS 900 S combination suction unit mented in accordance with applicable local Surge tank and national regulations. Amalgam separator CA 4...
- Page 26 Assembly VS 600 9 10 Hose clamp 40-60 mm Waste air pipe (aluminium)Æ 50 mm inside Hose clamp 35-50 mm Suction hose Æ 40 mm Hose connection DN 40/50 O-ring Æ 30x2 Connector Æ 36 mm (external) O-ring Æ 20x2 mm Ring clamp 10 Hose sleeve Æ...
- Page 27 Assembly VS 900 S, VS 1200 S Hose clamp 40-60 mm Waste air pipe (aluminium)Æ 50 mm inside Elbow DN 50 / 87 Straight adaptor bush Connecting sleeve Sealing sleeve Union nut Suction hose Æ 50 mm O-ring Æ 30x2 10 Connector Æ...
- Page 28 Assembly 230 V 1/N/PE Electrical connections DANGER Electric shock due to incorrectly con- nected device Never install a mains plug instead of ❯ the fixed connection. NOTICE Short circuit due to defective lead Do not route wires near hot surfaces. ❯...
- Page 29 Assembly 10 Commissioning In many countries technical medical prod- ucts and electrical devices are subject to regular checks at set intervals. The owner must be instructed accordingly. NOTICE Interference caused by larger parti- cles such as pieces of tooth or fillings Do not operate the unit without a ❯...
- Page 30 Usage The following are required for disinfection/clean- Usage ing: ü Non-foaming disinfectant/cleaning agent that is compatible with the materials. 11 Disinfection and cleaning ü Unit care system, e.g. OroCup To pre-clean, suck up 2 litres of water with the ❯ NOTICE care system.
- Page 31 ❯ Push the protective strainer into the connection ❯ piece on the separation housing. Reconnect the suction hose. ❯ 12.2 VS 900 S, VS 1200 S Loosen the protective strainer by twisting it half ❯ a turn anti-clockwise. 9000-606-79/30 1912V003...
- Page 32 Usage 13 Maintenance All maintenance work must be performed by a qualified expert or by one of our Service Techni- cians. WARNING Infection due to contaminated unit Clean and disinfect the suction before working on the unit. ❯ Wear protective equipment when working (e. g. impermeable gloves, protective goggles and ❯...
- Page 33 Troubleshooting Troubleshooting 14 Tips for operators and service technicians Any repairs exceeding routine maintenance may only be carried out by qualified personnel or our service. WARNING Infection due to contaminated unit Clean and disinfect the suction before working on the unit. ❯...
- Page 34 Troubleshooting Error Possible cause Remedy Water leaking from the Membrane valve blocked Check the membrane valve at ❯ the waste water connection exhaust air connection and if necessary clean or replace. * Foam in turbine due to use of Use non-foaming cleaning ❯...
- Page 35 Seal all connections with sealing caps. ❯ Pack the unit securely in preparation for trans- ❯ port. Fig. 3: VS 900 S, VS 1200 S Exhaust air connection sealing cap Suction connection sealing caps Water outflow sealing cap Rinse connection sealing cap...
- Page 36 Appendix Appendix 16 Handover record This document confirms that a qualified handover of the medical device has taken place and that appropriate instructions have been provided for it. This must be carried out by a qualified adviser for the medical device, who will instruct you in the proper handling and operation of the medical device. Product name Order number (REF) Serial number (SN)
