Working Instruction, Mechanical
Applicable for W380
CONTENTS
1
Introduction ............................................................................................................ 3
1.1
1.2
1.3
1.4
1.5
1.6
1.7
2
Disassembly........................................................................................................... 6
2.1
3
Replacement ........................................................................................................ 25
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
3.10 Hinge FPC Replacement............................................................................ 39
3.11 Hinge Plug Replacement............................................................................ 43
3.12 Keyboard Replacement.............................................................................. 45
3.13 Keyboard FPC Assembly Replacement ..................................................... 47
3.14 Key Locking Assembly Replacement ......................................................... 49
3.15 Label Replacement .................................................................................... 51
3.16 Loudspeaker Replacement ........................................................................ 52
3.17 Lower Back Cover Replacement................................................................ 52
1208-3927 2
©
Company Internal
Sony Ericsson Mobile
Communications AB
View of W380 ............................................................................................... 3
Tools and Equipment ................................................................................... 3
General Cautions ......................................................................................... 4
Adhesives..................................................................................................... 4
Using Hand and ESD Protection .................................................................. 4
Protection of Displays, Lenses, and Windows ............................................. 5
Acceptable Pry Tools ................................................................................... 5
Overview ...................................................................................................... 6
2.1.1
Battery Cover Removal .................................................................. 7
2.1.2
Battery Removal ............................................................................. 8
2.1.3
Screw Cover Removal.................................................................... 9
2.1.4
Lower Back Screw Removal .......................................................... 9
2.1.5
Lower Back Cover Removal ......................................................... 10
2.1.6
Vibrator Removal.......................................................................... 12
2.1.7
SIM/M2 Flex Removal .................................................................. 13
2.1.8
Lower PCB Removal .................................................................... 15
2.1.9
Main Window Label Removal ....................................................... 17
2.1.10
Upper Front Screw Removal ........................................................ 18
2.1.11
Upper Back Cover Removal ......................................................... 18
2.1.12
Loudspeaker Removal ................................................................. 21
2.1.13
Outer Display Removal ................................................................ 22
2.1.14
Upper PBA Removal .................................................................... 23
Antenna Assembly Replacement ............................................................... 25
Battery Cover Replacement ....................................................................... 28
Camera Replacement ................................................................................ 28
Coax Cable Gasket Replacement .............................................................. 29
Co-brand Inlay Assembly Replacement ..................................................... 30
Cover Light Panel Replacement................................................................. 32
Ear Speaker Replacement ......................................................................... 34
Flex Plug Replacement .............................................................................. 35
Hinge Replacement.................................................................................... 37
Working Instruction, Mechanical
1(79)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W380 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony Ericsson W380

  • Page 1: Table Of Contents

    Working Instruction, Mechanical Working Instruction, Mechanical Applicable for W380 CONTENTS Introduction ......................3 View of W380 ....................3 Tools and Equipment ................... 3 General Cautions ..................4 Adhesives..................... 4 Using Hand and ESD Protection ..............4 Protection of Displays, Lenses, and Windows ..........5 Acceptable Pry Tools ...................
  • Page 2 Lower Back Cover Installation............76 4.1.11 Lower Back Screw Installation ............. 77 4.1.12 Screw Cover Installation............... 77 4.1.13 Battery Installation................ 78 4.1.14 Battery Cover Installation ............. 79 Revision History ....................79 2(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 3: Introduction

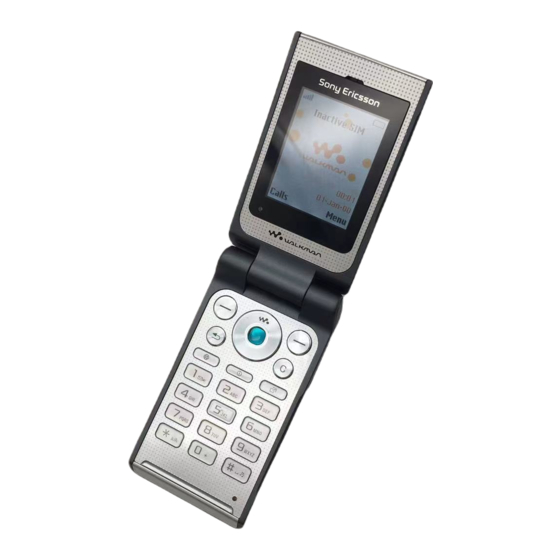

    Working Instruction, Mechanical 1 Introduction 1.1 View of W380 1.2 Tools and Equipment The following tools and equipment should be available while performing the procedures. STANDARD TOOLS • Style 2A Tweezers – Rounded Tip • Nylon Pointer • Torque Driver •...
  • Page 4: General Cautions

    When handling this product, keep all surfaces clean of dirt, dust, debris, and hand oil. Use appropriate ESD precautions when working on this product. The use of finger cots or gloves, an ESD mat, and an ESD wrist strap are required at minimum. 4(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 5: Protection Of Displays, Lenses, And Windows

    1.7 Acceptable Pry Tools Whenever the phrase “pry tool” is used, a nylon pointer, a plectrum, or a front opening tool may be used depending on the user’s preference. 5(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 6: Disassembly

    Upper back cover (11) and cover light panel assembly (12) from upper front (13) • Loudspeaker (14) • Outer display (15) • Upper PBA screws (16) and upper PBA (17) from upper front (13) 1208-3927 2 6(79) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 7: Battery Cover Removal

    Working Instruction, Mechanical Lower Half 2.1.1 Battery Cover Removal Lift up on the battery cover at its notch. Remove battery cover. 1208-3927 2 7(79) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 8: Battery Removal

    Working Instruction, Mechanical 2.1.2 Battery Removal Lift up on the lower sides of the battery from the notches. Remove battery. 8(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 9: Screw Cover Removal

    Pry the other screw cover off using round tipped tweezers. NSURE NO ADHESIVE RESIDUE REMAINS IN THE SCREW RECESS 2.1.4 Lower Back Screw Removal Remove the 4 screws using a T5 bit. 9(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 10: Lower Back Cover Removal

    Slide the plectrum along the seam up to the system connector or volume key to release the latches. Repeat for the other side. 10(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 11 SIM card reader as shown and unlatch the tabs. Use the plectrum to separate the lower rear cover from the antenna. Lift up on the lower end of the lower rear cover. Remove the lower rear cover. 11(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 12: Vibrator Removal

    Working Instruction, Mechanical 2.1.6 Vibrator Removal Lift up on the vibrator cap by inserting the round tipped tweezers between the flex and the vibrator. Pull the vibrator out of its housing. 12(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 13: Sim/M2 Flex Removal

    SIM/M2 flex from its positioning latch and lift it from the lower front cover. Rotate the SIM/M2 flex up from the circuit board as shown to expose the flex connector. 13(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 14 Working Instruction, Mechanical Separate the flex connector from the PCB by prying with the pry tool. O NOT DAMAGE THE GASKET Remove the SIM/M2 flex. 14(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 15: Lower Pcb Removal

    Pry the flex connector off of the lower PCB using a pry tool. O NOT DAMAGE THE GASKET Remove the ESD gasket using round tipped tweezers. Disconnect the coax cable. Pry in the location shown to release the first latch. 15(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 16 Pull the PCB away as shown. Rotate the PCB away from the lower inner cover so that you can see the underside. Unplug the keyboard flex from the PCB using a pry tool. 16(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 17: Main Window Label Removal

    Upper Half 2.1.9 Main Window Label Removal Open the phone. Pry the edge of the gasket up with the round tipped tweezers as shown. Peel the gasket off the upper front cover. 17(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 18: Upper Front Screw Removal

    Insert the plectrum between the upper back and upper front covers at the top of the phone. Angle the plectrum and push it into the seam. Slide the plectrum along the seam to release the three side latches. 18(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 19 Pry one end of the cover light panel assembly free using round tipped tweezers. Grip the free end of the cover light panel assembly and pull it off the phone. O NOT REUSE COVER LIGHT PANEL 19(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 20 Working Instruction, Mechanical Hold the phone as shown. Pull down with your index finger and thumb while pushing up with your hand to release the end latch. Remove upper rear cover. 20(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 21: Loudspeaker Removal

    Pry the loudspeaker up in the location shown using round tipped tweezers. Pry the loudspeaker out in the location shown using round tipped tweezers. NOTE: B E CAREFUL NOT TO DAMAGE METAL HOLDER FEATURES 21(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 22: Outer Display Removal

    Flip the bar of the ZIF connector up using a pry tool. Lift up on the display with a pry tool so that you can grab the sides. Remove the display. 22(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 23: Upper Pba Removal

    Open the display ZIF connector. Carefully pull the flex out of the hinge ZIF connector using round tipped tweezers. Carefully pull the flex out of the display ZIF connector using round tipped tweezers. 23(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 24 Working Instruction, Mechanical Remove the two upper PBA screws using a JCIS No. 0 bit. Lift on the lower end of the PBA and remove it from the upper front cover. 24(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 25: Replacement

    Using the round tipped tweezers, release the side key portion of the SIM/M2 flex from its positioning latch and lift it from the lower front cover. Lift up on the vibrator clip. 1208-3927 2 25(79) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 26 Lift up on the flex to expose the lower PCB. Disconnect the coax cable from the lower PCB Remove the coax cable gasket. Pry the antenna off the lower front cover. 26(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 27 O NOT REUSE THE COAX CABLE GASKET Position the coax cable gasket over the cable so that the notches on the gasket align with the features along the edge of the lower front cover. 27(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 28: Battery Cover Replacement

    3.2 Battery Cover Replacement Removal Complete 2.1.1 of the disassembly procedure. Installation Obtain a new battery cover. Complete 4.1.14 of the reassembly procedure. 3.3 Camera Replacement See 3.10 Hinge FPC Replacement 28(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 29: Coax Cable Gasket Replacement

    Position the coax cable gasket over the cable so that the notches on the gasket align with the features along the edge of the lower front cover. Complete 4.1.13-4.1.14 of the reassembly procedure. 29(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 30: Co-Brand Inlay Assembly Replacement

    Working Instruction, Mechanical 3.5 Co-brand Inlay Assembly Replacement Removal Lift up on the co-brand label with round tipped tweezers to separate the keyboard from the dome foil. Peel the keyboard off the phone. 30(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 31 Line the bottom of the keyboard up with the co-brand label. Lay the keyboard in the recessed area on the phone and apply pressure around the edge of the keyboard as shown so that a good bond forms. 31(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 32: Cover Light Panel Replacement

    Pry one end of the cover light panel free using round tipped tweezers. Grip the free end of the cover light panel and pull it off the phone. Installation Obtain a new cover light panel. 32(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 33 Place the cover light panel over the end of the phone so that the four positioning features line up. Then press the two tabs under the upper rear cover. Complete the installation portion of 3.20 Main Window Label Replacement. 33(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 34: Ear Speaker Replacement

    E SURE TO REMOVE ANY ADHESIVE RESIDUE Installation Obtain a new ear speaker. Place the ear speaker in the position shown. O NOT PRESS ON THE SPRING FINGERS Complete 4.1.1-4.1.6 and 4.1.13-4.1.14 of the reassembly procedure. 34(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 35: Flex Plug Replacement

    3.8 Flex Plug Replacement Complete 2.1.1-2.1.8 of the disassembly procedure. Removal Pry the flex plug with round tipped tweezers using the frame for leverage as shown. Pull the flex plug out. 35(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 36 Working Instruction, Mechanical Installation Obtain a new flex plug. Position the flex as shown and insert the plug. Complete 4.1.7-4.1.14 of the reassembly procedure. 36(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 37: Hinge Replacement

    Complete 2.1.1-2.1.8 of the disassembly procedure. Complete the removal portion of 3.11 Hinge Plug Replacement. Removal Grip the sides of the hinge with a pair of needle-nose pliers and remove it. Installation Obtain a new hinge. 37(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 38 Insert the hinge using needle-nose pliers with the orientation shown. HE NOTCH IN THE HINGE SHOULD FACE THE TAB WITHIN THE HINGE CAVITY Complete the installation portion of 3.11 Hinge Plug Replacement. Complete 4.1.7-4.1.14 of the reassembly procedure. 38(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 39: Hinge Fpc Replacement

    Complete the removal portion of 3.8, 3.11, and 3.9. Removal Open the hinge FPC ZIF connector. Pull the flex out using round tipped tweezers. Lift the hinge FPC off the frame. 39(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 40 Feed the hinge flex through the cavity in the lower half. Rotate the flex connector away from you so that you see the back. Pull the flex through far enough that you can flip the FPC over 40(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 41 Rotate the connector towards you so that you see the green side. Feed the flex through. Installation Obtain a new hinge FPC. Carefully feed the flex connector into the hinge. Pull the flex through the hinge. 41(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 42 Snap the two halves together. Insert the hinge flex into the ZIF connector. Close the connector. Complete the installation portion of 3.9, 3.11, and 3.8. Complete 4.1.3-4.1.14 of the reassembly instructions. 42(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 43: Hinge Plug Replacement

    Working Instruction, Mechanical 3.11 Hinge Plug Replacement Complete 2.1.1-2.1.8 of the disassembly procedure. Removal Insert the tip of the round tipped tweezers into the opening shown. Pry the hinge plug out. 43(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 44 Working Instruction, Mechanical Grip the hinge plug with the tweezers as shown and remove Installation Obtain a new hinge plug. Open the phone. 44(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 45: Keyboard Replacement

    Complete 4.1.8-4.1.14 of the reassembly procedure. 3.12 Keyboard Replacement Removal Lift up on the co-brand label with round tipped tweezers to separate the keyboard from the dome foil. Peel the keyboard off the dome foil. 45(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 46 Place the co-brand label on the phone. Line the bottom of the keyboard up with the co-brand label. Lay the keyboard across the phone and press firmly to create a good bond. 46(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 47: Keyboard Fpc Assembly Replacement

    Complete the removal portions of 3.5. Removal Use the round tipped tweezers to pry the microphone up. Starting from the bottom right corner, peel the keypad FPC off the lower front cover. Remove any remaining adhesive. 47(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 48 Line the top of the keypad FPC up with the recess and smooth the keypad across the phone. Snap the microphone flex down into the recess. Complete the installation portions of 3.5. Complete 4.1.8-4.1.14 of the reassembly instructions. 48(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 49: Key Locking Assembly Replacement

    Remove the key locking assembly with a pair of round tipped tweezers. Flex the top of the lower back cover to release the tab. Installation Obtain a new key locking assembly. Insert the key locking assembly. NSURE THE TAB LATCHES 49(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 50 Working Instruction, Mechanical Insert the keylock cover tab into the gap and snap the cover into place. Complete 4.1.11-4.1.14 of the reassembly procedure. 50(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 51: Label Replacement

    Peel up a corner of the label using round tipped tweezers and remove the label. Installation Print a new label. Align the corner of the label as shown. Smooth the label out onto the surface. Complete 4.1.13-4.1.14 of the reassembly procedure. 51(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 52: Loudspeaker Replacement

    Complete 2.1.1-2.1.7 of the disassembly procedure. Removal Remove the liquid intrusion indicator with round tipped tweezers. Installation Obtain a new liquid intrusion indicator. Place the indicator as shown. Complete 4.1.9-4.1.14 of the reassembly procedure. 52(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 53: Lower Front Cover Replacement

    Removal Carefully wiggle the two halves apart. Feed the hinge flex through the hinge cavity. Installation Obtain a new lower front cover assembly. Feed the hinge flex through the hinge cavity. 53(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 54: Main Window Label Replacement

    Obtain a new outer display. Complete 4.1.2-4.1.6 and 4.1.13-4.1.14 of the reassembly procedure. 3.22 Screw Cover Replacement Complete 2.1.1-2.1.3 of the disassembly procedure. Installation Obtain a new screw cover. Complete 4.1.12-4.1.14 of the reassembly procedure. 54(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 55: Sim Flex Replacement

    Obtain a new SIM flex and vibrator cap. Peel the backing off the adhesive flex strip. Place the flex strip into the vibrator cap. Complete 4.1.9-4.1.14 of the reassembly section. E SURE TO REPLACE THE CUSHION 55(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 56: Touch Key Assembly Replacement

    Flip the ZIF connector open using round tipped tweezers. Carefully pull the flex out of the connector as shown. Peel the touch keys off the upper PBA. Installation Obtain a new touch key assembly. 56(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 57 HE TOUCH KEY ASSEMBLY SHOULD CLEAR THE ALIGNMENT PEG Insert the flex into the connector using round tipped tweezers as shown. Close the ZIF connector. Complete 4.1.4-4.1.6 and 4.1.13-4.1.14 of the reassembly procedure. 57(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 58: Upper Back Cover Replacement

    Complete 2.1.1-2.1.14 of the disassembly instructions. Complete the removal portion 3.8, 3.11, and 3.9. Removal Wiggle the two phone halves carefully to separate them. Feed the hinge flex through the cavity in the lower half. 58(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 59 Pull the flex through far enough that you can flip the FPC over Rotate the connector towards you so that you see the green side. Feed the flex through. Installation Obtain a new hinge FPC. 59(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 60 Pull the flex through the hinge. Feed the connector through the hinge of the lower half. Snap the two halves together. Complete the installation portion of 3.8, 3.9, and 3.11. Complete 4.1.4-4.1.14 of the reassembly instructions. 60(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 61: Upper Pba Replacement

    Complete 4.1.9-4.1.14 of the reassembly procedure. 3.29 Volume Key Replacement Complete 2.1.1-2.1.5 of the disassembly procedure. Removal Push the volume key in as shown. Grip the volume key with round tipped tweezers. 61(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 62 Obtain a new volume key. Insert the back of the key in front of the tab on the back cover. Push the key into place. Complete 4.1.10-4.1.14 of the reassembly procedure. 62(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 63: Reassembly

    Vibrator (11) • SIM/M2 Flex (12) • Lower Back Cover (13) to Lower Front (14) • Lower Back Screws (15) • Screw Covers (16) • Battery • Battery Cover (17) 1208-3927 2 63(79) © Company Internal Sony Ericsson Mobile Communications AB...
  • Page 64: Upper Pba Installation

    NOTE: MAKE SURE THE HINGE FLEX AND MAIN DISPLAY FLEX ARE NOT UNDER THE BOARD Insert two inner screws in the locations shown. Tighten to 9 Ncm using a JCIS-0 bit. 64(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 65 Insert the hinge flex into the ZIF connector on the PCB using round tipped tweezers. Close the ZIF connector. Insert the display flex into the ZIF connector. Close the ZIF connector. 65(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 66: Outer Display Installation

    Place a new outer display adhesive in the recess, lining the edge up as shown. Lay the adhesive flat out over the recess. Insert the outer display flex into the ZIF connector as shown. 66(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 67 Working Instruction, Mechanical Lay the outer display into place on the upper front cover as shown. Close the ZIF connector. 67(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 68: Loudspeaker Installation

    Press down on the edge of the loudspeaker shown so that the metal tabs that hold that side of the speaker box lock in place. NSURE THE GROUNDING TAB DOES NOT GET BENT 68(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 69: Upper Back Cover Installation

    Insert the two tabs of the upper back cover into their notches on the frame. Snap the end of the cover onto the frame. Press in the locations shown along the sides to lock the latches. 69(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 70: Upper Front Screw Installation

    O NOT REUSE COVER LIGHT PANEL ASSEMBLY 4.1.5 Upper Front Screw Installation Insert four screws in the locations shown. Tighten to 13 Ncm using a T5 bit. 70(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 71: Main Window Label Installation

    Line the bottom of the main window label up with its cavity. Work the label into its cavity and press over the surface of the entire gasket so a good bond forms. 71(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 72: Lower Pcb Installation

    Lay the board into place and press on the board so that the two latches snap into place. NSURE THE COAX CABLE IS NOT UNDER THE Lay the foam gasket into place. 72(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 73: Vibrator Installation

    Connect the flex as shown. Connect the coax cable and position the connection so that it oriented as shown. 4.1.8 Vibrator Installation Place the vibrator in its cavity. O NOT PRESS ON THE CONTACT FINGERS 73(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 74: Sim/M2 Flex Installation

    HE VIBRATOR CAP SHOULD FIT OUTSIDE THE RUBBER VIBRATOR GASKET NSURE THE IBRATOR CAP IS ABLE TO SPRING OFF THE VIBRATOR WHEN PRESSED ON Position the volume key flex around the tab shown using the round tipped tweezers. 74(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 75 Working Instruction, Mechanical Place the ESD cushion on the hinge flex as shown. Push the edges of the cushion into the gap as shown. 75(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 76: Lower Back Cover Installation

    Carefully lay the cover over the SIM/M2 flex and snap it into place. Snap the bottom half of the cover into place. 76(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 77: Lower Back Screw Installation

    Insert the four screws in the locations shown. Tighten to 13 Ncm using a T5 bit. 4.1.12 Screw Cover Installation Place the screw covers in the screw cavities. DO NOT REUSE SCREW COVERS 77(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 78: Battery Installation

    Working Instruction, Mechanical 4.1.13 Battery Installation Insert the battery with the contacts aligned with the contact pins. Push the battery into place. 78(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
  • Page 79: Battery Cover Installation

    Rotate the battery cover onto the phone and snap the battery cover into place. 5 Revision History Rev. Date Changes / Comments February 26, 2008 Initial Release April 14, 2008 Updated minor spelling and grammar errors 79(79) 1208-3927 2 © Sony Ericsson Mobile Communications AB...
