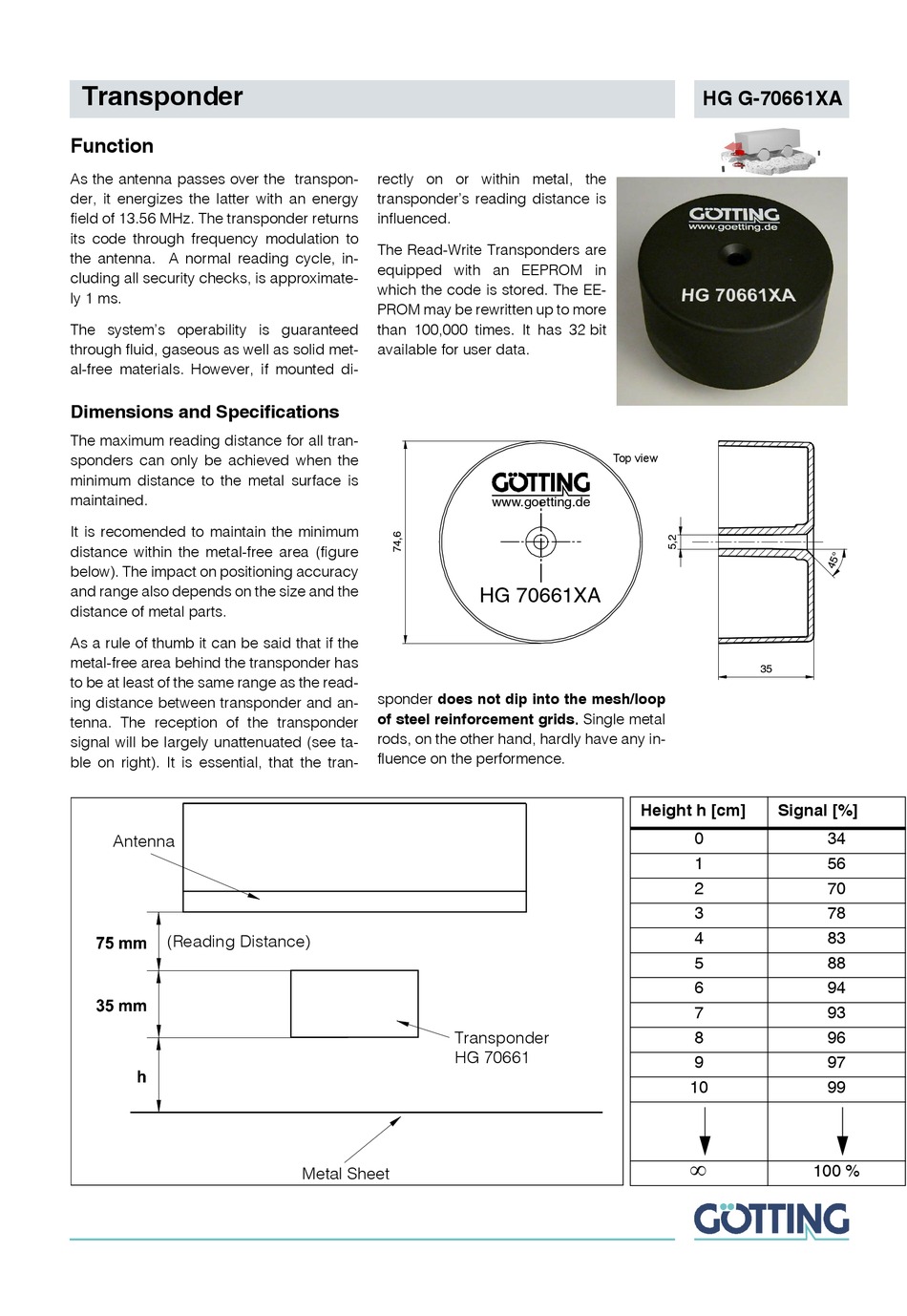

Transponder
Function
As the antenna passes over the transpon-
der, it energizes the latter with an energy
field of 13.56 MHz. The transponder returns
its code through frequency modulation to
the antenna. A normal reading cycle, in-
cluding all security checks, is approximate-
ly 1 ms.
The system's operability is guaranteed
through fluid, gaseous as well as solid met-
al-free materials. However, if mounted di-
Dimensions and Specifications
The maximum reading distance for all tran-
sponders can only be achieved when the
minimum distance to the metal surface is
maintained.
It is recomended to maintain the minimum
distance within the metal-free area (figure
below). The impact on positioning accuracy
and range also depends on the size and the
distance of metal parts.
As a rule of thumb it can be said that if the
metal-free area behind the transponder has
to be at least of the same range as the read-
ing distance between transponder and an-
tenna. The reception of the transponder
signal will be largely unattenuated (see ta-
ble on right). It is essential, that the tran-
Antenna
(Reading Distance)
rectly on or within metal, the
transponder's reading distance is
influenced.
The Read-Write Transponders are
equipped with an EEPROM in
which the code is stored. The EE-
PROM may be rewritten up to more
than 100,000 times. It has 32 bit
available for user data.
sponder does not dip into the mesh/loop
of steel reinforcement grids. Single metal
rods, on the other hand, hardly have any in-
fluence on the performence.
Transponder
HG 70661
Metal Sheet
Top view
www.goetting.de
HG 70661XA
Height h [cm]
HG G-70661XA
35
Signal [%]
0 34
1 56
2 70
3 78
4 83
5 88
6 94
7 93
8 96
9 97
10 99

100 %
