Summary of Contents for Harman Kardon CITATION OASIS

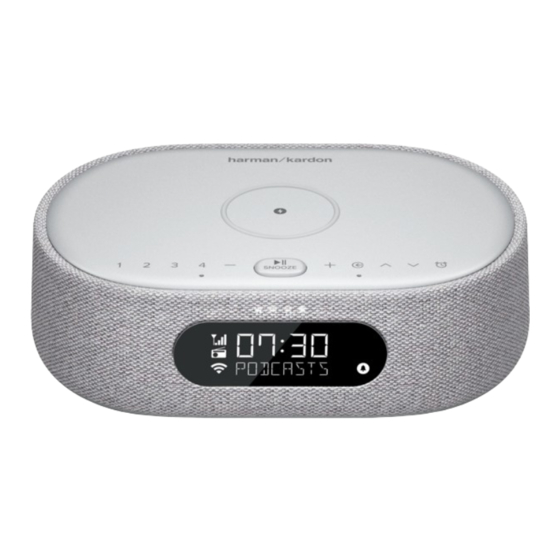

- Page 1 CITATION OASIS OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Verify Line Voltage Before Use The CITATION OASIS DAB has been designed for use with 100-240 volt, 50/60 Hz AC current. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........2 INTRODUCTION ..................4 APP ........................5 PRODUCT TOUR ..................6 SETUP ......................11 PLAY ......................13 SPECIFICATIONS ..................21 TRADEMARKS ..................22... -
Page 4: Introduction
Design and specifications are subject to change without notice. If you have any questions about these products, their installation or their operation, please contact your Harman Kardon retailer or customer service, or visit us at www.harmankardon.com... -
Page 5: App
The Google Assistant setup Google Home Download the Google Home app and set up your Citation OASIS DAB. All product features will be set up. -
Page 6: Product Tour
PRODUCT TOUR 1. Citation OASIS DAB x1 2. Regional power cord (varies depending on country) x1 3. DAB antenna x1... - Page 7 Front (Qi-enabled phone) Wireless charging in progress Source selector Select a DAB station Check alarm time DAB presets Volume down/up Press briefly: Snooze alarm for 10 minutes; pause or resume playback Press and hold (> 5s): Start DAB station scanning Wireless charging pad NOTES: •...
- Page 8 Back 1.0 A Power cable connector Service only 3.5 mm audio input connector for external devices DAB antenna connector Night Wi-Fi : Wi-Fi on (00:00 - 24:00) : Wi-Fi is switched off automatically from 00:00 to 06:00. To change the time duration, go to the Night mode settings in Google Home app.
- Page 9 Bottom >5s Factory reset Backup battery compartment (CR2032 x1) CR2032...
- Page 10 Display information Clock time Status information Bluetooth status indicator Wireless charging in progress Alarm set Alarm time displayed Wi-Fi signal strength Night Wi-Fi activated, Wi-Fi disconnected DAB signal strength DAB source selected Microphone mute...
-
Page 11: Setup
SETUP POWER... - Page 12 OASIS DAB join your home Wi-Fi network. Sign in with your Google account. If you do not have one, create a new one. After Wi-Fi setup, the CITATION OASIS DAB starts to sync clock time and scan DAB stations automatically.
-
Page 13: Play
PLAY 4.1 DAB Press repeatedly to select the DAB mode. Press briefly: Select a DAB station. Press and hold (>3s): Fast search for a station. During playback, press and hold (> 3s) to store current station as a preset. Press 1 / 2 / 3 / 4 to play the preset station. - Page 14 4.2 Google Assistant Mute Unmute “Hey Google”/ “Ok Google” Google LED (status indicator) Set and manage your alarms Voice Command Desired Action (Say “Ok Google” or “Hey Google”, then...) Set new alarm “Set alarm for 6am tomorrow” Set alarm with name “Set an alarm for 7 am called Medicine” ...
- Page 15 * Set your favorite music as an alarm Select a song, artist, genre or playlist from your default music service in the Google Home app. Voice Command Desired Action (Say “Ok Google” or “Hey Google”, then...) “Set J-pop radio alarm for 6am tomorrow“ or ”Set Set media or music alarm birthday music alarm for 7:30 am Monday”...
- Page 16 Change alarm volume 1. Make sure that your mobile device or tablet is connected to the same Wi-Fi as the Citation OASIS DAB. 2. Launch the Google Home app 3. Select the Citation OASIS DAB. 4. At the top right, tap Settings Alarms &...
- Page 17 4.3 Alarms To snooze the alarm for 10 minutes, press To stop the alarm, press To check the alarms you have set, press repeatedly. PLAY/PAUSE, SNOOZE...
- Page 18 4.4 Chromecast Step 1: Open a Chromecast supported app. Step 2: Play Music. Step 3: Tap the cast icon and select “Citation OASIS DAB”. e.g. Spotify Pandora TuneIn Deezer Google Play Music * The Citation OASIS DAB can be included into a multi-room system with other products that support Chromecast.
- Page 19 4.5 AirPlay Music iPhone Citation Oasis DAB 1. On an iOS device, enter the Control Center. to select “Citation OASIS DAB” as speaker. 2. Tap 3. Start audio streaming from an app.
- Page 20 4.6 Bluetooth Settings Bluetooth Bluetooth DEVICES Citation Oasis DAB Connected Now Discoverable >3s < 10 m / 33 ft 1. Press repeatedly to select the Bluetooth source. 2. Press and hold (> 3s) to enter the Bluetooth pairing mode. 3. On the Bluetooth device, enable Bluetooth and search for “Citation OASIS DAB”.
-
Page 21: Specifications
SPECIFICATIONS • Model Name: Citation OASIS DAB • Transducer: 2 x 45 mm (full range) • Output power: 12 W RMS • Signal-to-noise ratio: > 80 dB • Power Supply: 100-240 V ~ 50/60 Hz • Bluetooth version: 4.2 • Bluetooth transmitter frequency range: 2402 – 2480 MHz •... -
Page 22: Trademarks
TRADEMARKS The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. The Wi-Fi CERTIFIED Logo is certification marks of the Wi-Fi Alliance.
