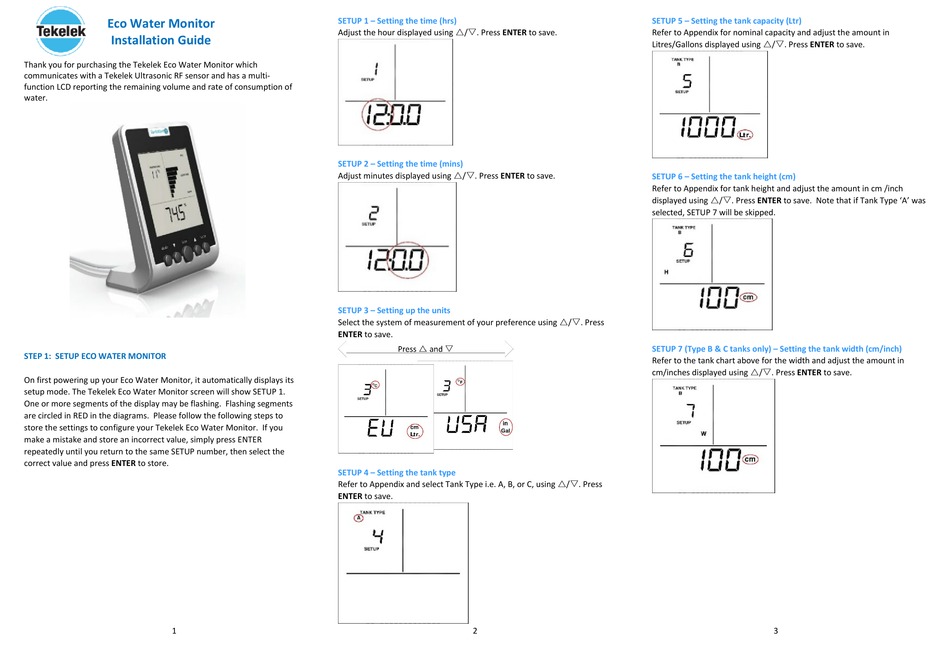

TEKELEK TEK-603 Installation Manual

Eco Water Monitor
Installation Guide
Thank you for purchasing the Tekelek Eco Water Monitor which
communicates with a Tekelek Ultrasonic RF sensor and has a multi-
function LCD reporting the remaining volume and rate of consumption of
water.

STEP 1: SETUP ECO WATER MONITOR

On first powering up your Eco Water Monitor, it automatically displays its
setup mode. The Tekelek Eco Water Monitor screen will show SETUP 1.
One or more segments of the display may be flashing. Flashing segments
are circled in RED in the diagrams. Please follow the following steps to
store the settings to configure your Tekelek Eco Water Monitor. If you
make a mistake and store an incorrect value, simply press ENTER
repeatedly until you return to the same SETUP number, then select the
correct value and press ENTER to store.
1
SETUP 1 – Setting the time (hrs)
Adjust the hour displayed using /. Press ENTER to save.
SETUP 2 – Setting the time (mins)
Adjust minutes displayed using /. Press ENTER to save.
SETUP 3 – Setting up the units
Select the system of measurement of your preference using /. Press
ENTER to save.
SETUP 4 – Setting the tank type
Refer to Appendix and select Tank Type i.e. A, B, or C, using /. Press
ENTER to save.
2
SETUP 5 – Setting the tank capacity (Ltr)
Refer to Appendix for nominal capacity and adjust the amount in
Litres/Gallons displayed using /. Press ENTER to save.
SETUP 6 – Setting the tank height (cm)
Refer to Appendix for tank height and adjust the amount in cm /inch
displayed using /. Press ENTER to save. Note that if Tank Type 'A' was
selected, SETUP 7 will be skipped.
SETUP 7 (Type B & C tanks only) – Setting the tank width (cm/inch)
Refer to the tank chart above for the width and adjust the amount in
cm/inches displayed using /. Press ENTER to save.
3
