Eco Oil Monitor
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEK 603 and is the answer not in the manual?

Questions and answers

Related Manuals for TEKELEK TEK 603

Summary of Contents for TEKELEK TEK 603

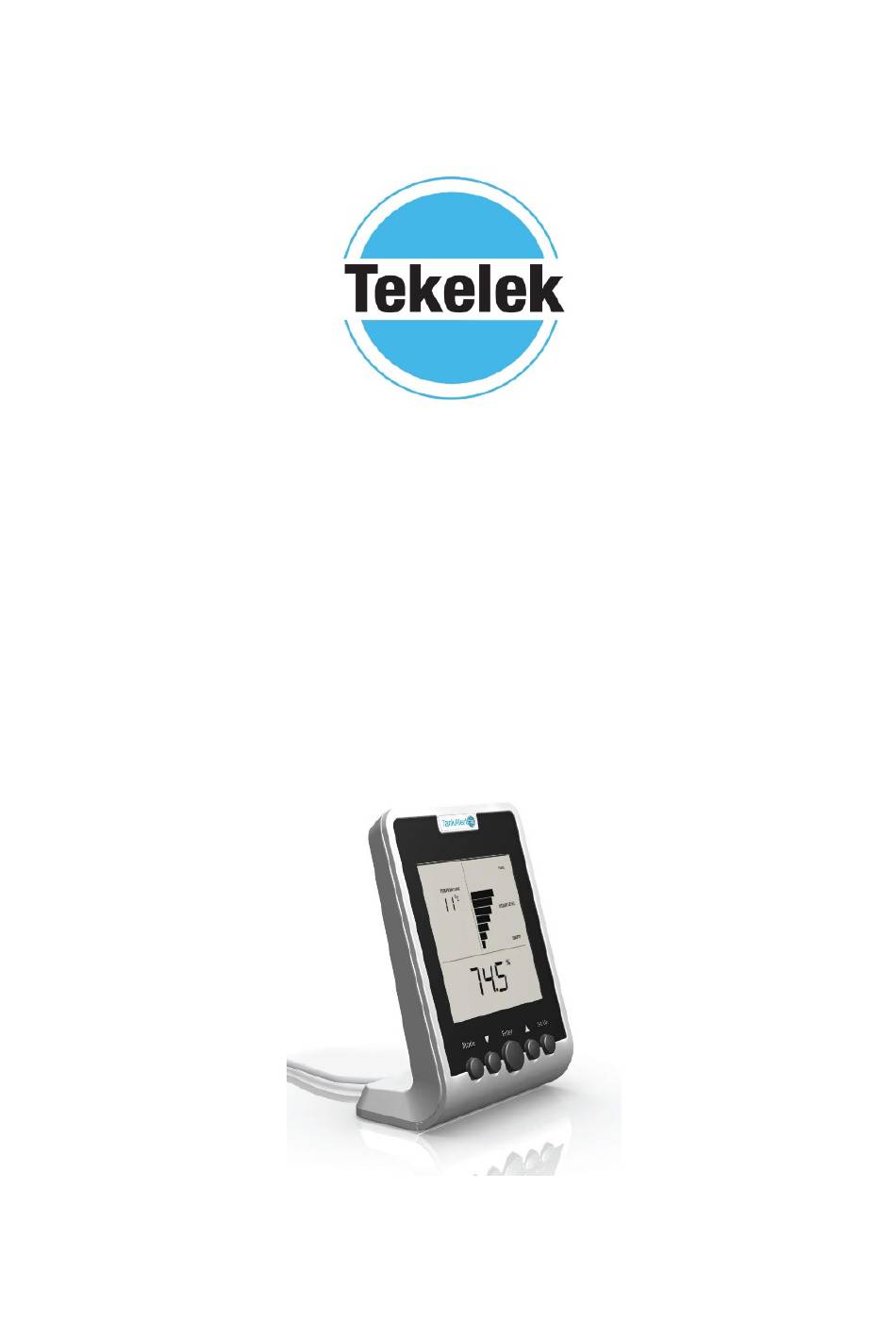

  • Page 1 Eco Oil Monitor User Manual...

  • Page 2: Table Of Contents

    Wireless Communications ......................9 Dimensions (Sensor) ........................9 Dimensions (Monitor) ........................ 9 Power Supply ..........................9 Mains Power Supply (incl.) for Tekelek Eco Oil Monitor ............9 4.10 Battery Life ..........................9 4.11 Max and Min Operation (Sensor) ....................9 4.12...

  • Page 3: Product Information

    The Tekelek Eco Oil product from Tekelek Europe Ltd consists of the Tekelek Sensor and the Tekelek Eco Oil Monitor. The Tekelek Sensor is easily installed on your oil storage tank to measure the level of the oil. It transmits the oil level information wirelessly to the Tekelek Eco Oil Monitor which may be located in a convenient location inside your home.
  • Page 4 Costs By entering the cost you pay for your oil during the setup process of your Tekelek Eco Oil Monitor and subsequently when you take deliveries of oil (if the price has changed), the Tekelek Eco Oil can present your oil usage in terms of its costs, i.e.

  • Page 5: Features And Functions

    18 Self-tapping screws x 2 Beeper aperture 19 Weather seal (Gasket) 10 RESET button access 20 Tekelek Eco Oil Sensor oil level display Functions When in NORMAL mode press MODE to move between the current and the historical MODE information screens.

  • Page 6: Led

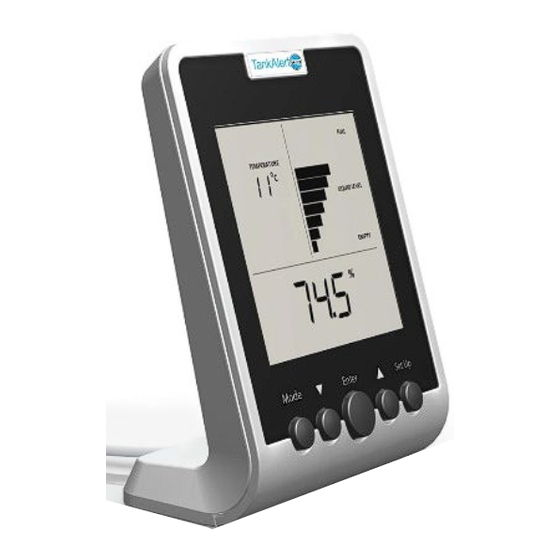

    Display – Symbols & Indicators The Tekelek Eco Oil Monitor contains a display that conveys a variety of information during normal use and during its initial setup and configuration for use with your oil tank. The display contains three sections (1, 2, &...
  • Page 7 Monitor Display: Bar graph indicator of liquid level - each bar represents 10% of tank height. . Tekelek Eco Oil Sensor Display: Tanks 1m/3.3ft. in height or greater - each bar represents 1/10th of the top 1m/3.3ft of the tank.

  • Page 8: Display Screens

    Change between the ‘Ltr.’, ‘%’, ‘Days to empty’, and Clock screens using the  and  keys. For approximately 1 week after the Tekelek Eco Oil is installed, it collects data so that the ‘Average per day’ value may be calculated. During this period the screen will flash ‘---‘ when showing ‘Days to empty’. (In the picture, ‘flashing’...

  • Page 9: Alarms

    Eco Oil Monitor User Manual Alarms Full Indication When the level in your tank reaches 12 cm from the top of the tank, i.e. from the bottom of the Tekelek Sensor, the main display will show ‘FULL’. Low Level Indications When the tank level falls to within 14cm of the bottom of the tank the ‘re-fuel’...

  • Page 10: Max Communication Distance

    Tekelek Sensor: 5 years (estimated life) Tekelek Eco Oil Monitor – Receiver memory back-up battery: 3yr if device is not plugged in Note: The Eco Oil Monitor contains a small battery to keep time during power cuts. If the device is left unpowered for an extended period, then the battery will deplete.

  • Page 11: Tekelek Sensor Battery Change

    Keep the product away from heat sources i.e. radiators, stoves, heaters, etc. • Do not use the Tekelek Eco Oil Monitor in or near water or in high moisture areas i.e. Bathroom • Do not tamper with the Tekelek Eco Oil Monitor’s internal components. This will invalidate the warranty.

  • Page 12: Troubleshooting

    Eco Oil Monitor User Manual Troubleshooting If the Tekelek Eco Oil Monitor does not receive or cannot understand the RF signal from the Tekelek Sensor, an error message will be displayed on the Tekelek Eco Oil Monitor. The error message appears as an alternating screen showing ‘Err’...

  • Page 13: Notes

    • The Tekelek Eco Oil owner should note that the first fill amount of oil into a tank will differ from the amount shown on the display. This is due to the fact that the Tekelek Eco Oil Monitor displays the volume of Usable oil available.

  • Page 14: Warranty

    Tekelek Europe Ltd’s obligations are limited to the repair, or at its sole discretion, replacement of the unit. The unit should only be returned to Tekelek upon receiving confirmation from Tekelek that the return will be accepted.
