Summary of Contents for TEKELEK Eco Water Monitor

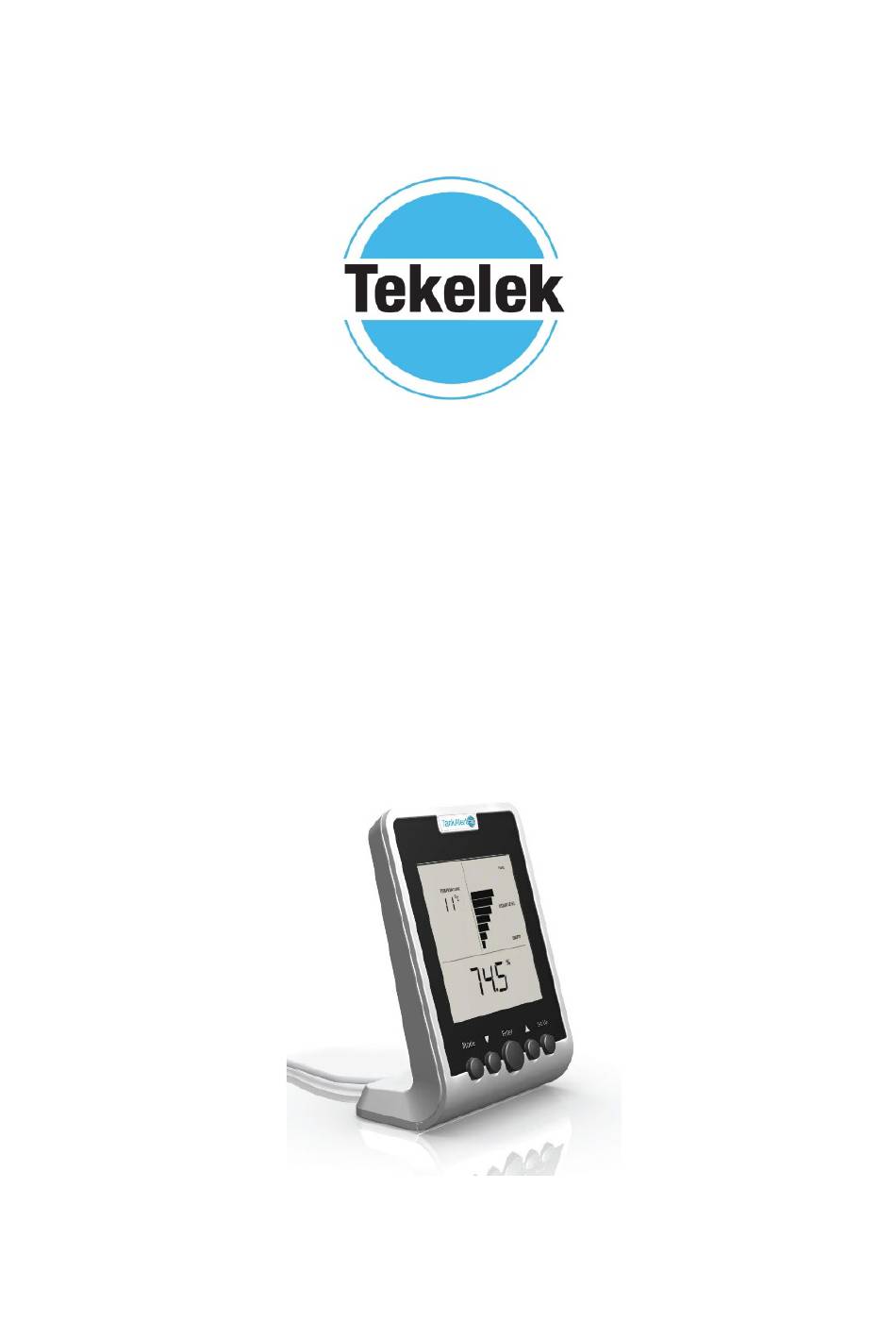

- Page 1 Eco Water Monitor User Manual...
-
Page 2: Table Of Contents
Max communication distance ....................8 Wireless Communications ......................8 Dimensions (Sensor) ........................8 Dimensions (Monitor) ........................ 9 Power Supply ..........................9 Mains Power Supply (incl.) for Tekelek Eco-Water Monitor ............9 4.10 Battery Life ..........................9 4.11 Max and Min Operation (Sensor) ....................9 4.12... -
Page 3: Product Information
Monitor which may be located in a convenient location inside your home. The Tekelek Eco-Water Sensor uses ultrasonic technology to measure the distance from the Sensor on top of the tank to the surface of the liquid in your water tank. As the amount of water in your tank decreases, the distance measured increases accordingly. - Page 4 Installation The Tekelek Eco-Water Sensor fits into 32mm hole found on many water storage tanks and is suitable for use with almost any plastic or metal tank up to 3m tall, it may also be easily installed on tanks with pre-threaded holes by using the supplied multi-thread mounting adaptor which has threads compatible with 2”, 1.5”, and...
-
Page 5: Features And Functions
18 Self-tapping screws x 2 Beeper aperture 19 Weather seal (Gasket) 10 RESET button access 20 Tekelek Eco Water Sensor Water level display Functions When in NORMAL mode press MODE to move between the current and the historical MODE information screens. -
Page 6: Led
Tekelek Sensor. Display – Symbols & Indicators The Tekelek Eco Water Monitor contains a display that conveys a variety of information during normal use and during its initial setup and configuration for use with your water tank. The display contains three sections (1, 2, &... - Page 7 Bar graph indicator of liquid level - each bar represents 10% of tank height. . Tekelek Eco Water Sensor Display (If equipped with a display): Tanks 1m/3.3ft. in height or greater - each bar represents 1/10th of the top 1m/3.3ft of the tank.
-
Page 8: Display Screens
During use the Tekelek Eco Water sensor takes a level measurement twice a minute and sends measurement information to the Eco Water monitor every 30 minutes. At the Eco Water monitor the level information is presented as the remaining volume or as a % of the tank capacity or as the height of the liquid in the tank. -
Page 9: Alarms
Displays Multi-function LCD display including: · 10 bar-graph level indication on both Tekelek Eco-Water Monitor and Sensor* (Note: The graph displayed on the sensor only represents the top 1M of the tank contents) · Display control with five control buttons ·... -
Page 10: Dimensions (Monitor)
Hole size for fitting sensor: 32mm/1.25inch diameter * The Tekelek Eco Level Sensor and Tekelek Eco-Water Monitor bar-graph displays may differ (see Display symbol reference table). ** This device contains a small battery to keep time during power cuts. If the device is left unpowered for an extended period, then the battery will deplete. -
Page 11: Tekelek Sensor Battery Change
Eco Water Monitor User Manual Tekelek sensor battery change If the battery in the Tekelek Sensor needs to be changed the display will provide advance warning by showing the ‘TANK LOW BATTERY’ text below the bar-graph. • Remove the Tekelek Sensor from the tank and move to a safe location The battery can be accessed by removing the 4 self-tapping screws from the base of the unit. -
Page 12: Troubleshooting
Eco Water Monitor User Manual Troubleshooting If the Tekelek Eco-Water Monitor does not receive or cannot understand the RF signal from the Tekelek Eco- Water Sensor, an error message will be displayed on the Tekelek Eco-Water Monitor. The error message appears as an alternating screen showing ‘Err’... -
Page 13: Notes
When you are not using water system, you may unplug the Tekelek Eco-Water and store it until you wish to use your water system again. Its back-up battery and internal clock keep track of the settings previously entered. -
Page 14: Warranty
Tekelek Europe Ltd’s obligations are limited to the repair, or at its sole discretion, replacement of the unit. The unit should only be returned to Tekelek upon receiving confirmation from Tekelek that the return will be accepted.
