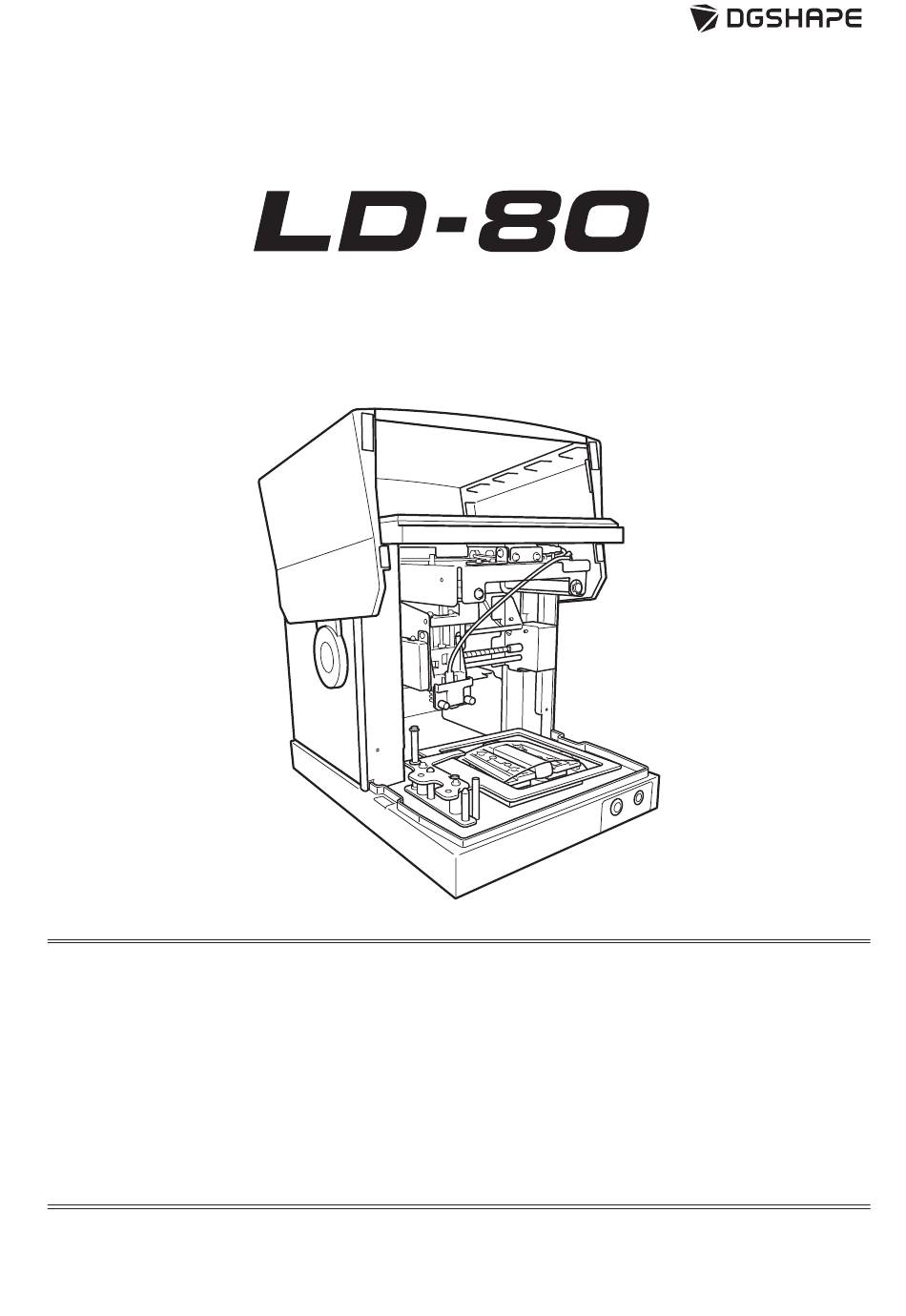

DGSHAPE LD-80 Setup Manual

Hide thumbs Also See for LD-80:
Table of Contents

Advertisement

Quick Links

Download this manual
• To ensure safe usage with a full understanding of this product's performance, please be sure to read through
this manual completely.
• Store this manual in a safe place where it can be referred to when needed.
• Reproduction, citation, or translation, in whole or in part, of this manual is prohibited without express written
consent.
• The contents of this document and the specifications of this product are subject to change without notice.
• DGSHAPE Corporation assumes no responsibility for any damage that may occur through use of this product,
regardless of any failure to perform on the part of this product or of any errors in this document. Damages
include but are not limited to damage caused by the specifications or performance of the product, damage
caused by non-use of the product, and damage caused by deliverables obtained through use of this product.
Such damages can be either direct or indirect.
FA01639
Setup Guide
R4-190628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD-80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DGSHAPE LD-80

Summary of Contents for DGSHAPE LD-80

  • Page 1 • The contents of this document and the specifications of this product are subject to change without notice. • DGSHAPE Corporation assumes no responsibility for any damage that may occur through use of this product, regardless of any failure to perform on the part of this product or of any errors in this document. Damages include but are not limited to damage caused by the specifications or performance of the product, damage caused by non-use of the product, and damage caused by deliverables obtained through use of this product.
  • Page 2 Use only I/O cables that have been designed and manufactured specifically for this device. For EU Countries Manufacturer: DGSHAPE Corporation 1-6-4 Shinmiyakoda, Kita-ku, Hamamatsu-shi, Shizuoka-ken, 431-2103 JAPAN The importer in the EU: Roland DG Europe Holdings, B.V. Prof. J.H. Bavincklaan 2, 1183 AT, Amstelveen, The Netherlands...

  • Page 3: Table Of Contents

    Loading the Light-absorbing Film ................23 Windows® is a registered trademark or trademark of Microsoft® Corporation in the United States and/or other countries. Company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2017-2019 DGSHAPE Corporation https://www.dgshape.com/...

  • Page 4: To Ensure Safe Use

    To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points that must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe injury WARNING should the unit be used improperly.
  • Page 5 To Ensure Safe Use Incorrect operation may cause injury WARNING WARNING Always unplug the power cord when attach- Never climb or lean on the machine. ing or removing parts and optional parts The machine is not made to support a and when performing cleaning or mainte- person.
  • Page 6 To Ensure Safe Use Danger of electrical short, electrical shock, or fire WARNING WARNING Connect to an electrical outlet that Never place any flammable object complies with this machine’s ratings (for nearby. Never use a combustible aerosol voltage, frequency and current). spray nearby.
  • Page 7 To Ensure Safe Use Important notes about the power cord, plug, and electrical outlet Never place any object on Never bend or twist with Never pull with excessive Never bundle, bind, or roll top or subject to damage. excessive force. force.

  • Page 8: Pour Utiliser En Toute Sécurité

    Pour utiliser en toute sécurité La manipulation ou l’utilisation inadéquate de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. À propos des avis ATTENTION et PRUDENCE Utilisé...
  • Page 9 Pour utiliser en toute sécurité Une utilisation incorrecte peut causer des blessures ATTENTION ATTENTION Toujours débrancher le câble d’alimen- Ne jamais grimper ni s’appuyer sur la ma- tation lors de la fixation ou du retrait chine. de pièces et de pièces en option et du La machine n’est pas conçue pour sup- nettoyage ou des travaux d’entretien qui porter le poids d’une personne.
  • Page 10 Pour utiliser en toute sécurité Risque de court-circuit, de choc électrique ou d’incendie ATTENTION ATTENTION Brancher à une prise électrique conforme Ne jamais placer d’objet inflammable à prox- aux caractéristiques de cet appareil (tension, imité de l’appareil. Ne jamais utiliser de pro- fréquence et courant).
  • Page 11 Pour utiliser en toute sécurité Remarques importantes à propos du câble d’alimentation, de la fiche et de la prise électrique Ne jamais déposer aucun Ne jamais plier ni tordre Ne jamais tirer Ne jamais plier ni enroul- objet dessus au risque de avec une force excessive.

  • Page 12: Important Notes On Handling And Use

    Important Notes on Handling and Use This machine is a precision device. To ensure the full performance of this machine, be sure to ob- serve the following important points. Failure to observe these points may not only result in loss of performance but may cause faulty operation or a malfunction.

  • Page 13: About The User's Manuals

    This contains important notes for ensuring safe use as well as detailed information on how to install and operate the machine. LD-80 Setup Guide (this document) This document also provides instructions for how to install the included software. Be sure to read this first.

  • Page 14: Checking The Included Items

    Power cord (1) USB cable (1) Grid table (1) Adhesive sheet (1) Hexagonal wrench (1) Center vise (1) Light-absorbing film (1) Setup Guide (this document; 1) DGSHAPE Software Package CD (1) Film retainers Film retainer (1) Cap screws (3) Film frame (1)

  • Page 15: Installing The Software

    * As this software is a 32-bit application, it runs on WOW64 (Windows-On-Windows 64) on the 64-bit version of Windows. For the latest information, see the DGSHAPE Corporation website (https://www.dgshape.com/). The Software You Can Install and Set Up This is a program for creating imprint data. It enables you to import and...

  • Page 16: Installing The Software

    Log on to Windows as an administrator or as a member of the Administrators group. Insert the DGSHAPE Software Package CD into the computer's CD-ROM drive. When the automatic playback window appears, click [Run menu.exe]. If the [User Account Con- trol] window appears, click [Allow] or [Yes].
  • Page 17 Installing the Software Select [Install], select [DGSHAPE LD-80] as the model name, select [USB] as the port, and then click [Start]. Installation starts. Proceed by following the on-screen instructions. If the screen shown below appears during installation, click [Install]. Follow the displayed instructions and continue with the installation.
  • Page 18 Click [View devices and printers]. Windows 8.1 Right-click the [Start] menu on the computer. Click [Control Panel]. Click [Devices and Printers]. Windows 7 Click the [Start] menu. Click [Devices and Printers]. Right-click the [DGSHAPE LD-80] icon, and then click [Printing preferences].
  • Page 19 Installing the Software The METAZA Driver Printing Preferences dialog box is displayed. How to Open the METAZA Driver Help Open the METAZA Driver Printing Preferences dialog box, and then click [Help]. " P.16 “How to Open the METAZA Driver Printing Preferences Dialog Box”...
  • Page 20 From the [Start] menu, click [DGSHAPE LD-80] then [User’s Manual]. Windows 8.1 On the [Start] screen, click . On the [Apps] screen, click the [User’s Manual] icon under [DGSHAPE LD-80]. Windows 7 From the [Start] menu, click [All Programs], [DGSHAPE LD-80], and then click [User’s Manual].

  • Page 21: Installation

    Installation Installation Environment Never install this machine outside or in any location where exposure to WARNING water or high humidity may occur. Current leakage may cause electrical shock or fire. Never install the machine close to any flammable object or in a gas-filled WARNING location.

  • Page 22: Removing And Storing The Retainers

    Installation Removing and Storing the Retainers Retainers are attached to protect the machine from vibration during shipment. Remove these after installation. Removing the Retainers The machine is secured at three points. Remove all the cap screws and retainers with the included hexagonal wrench.
  • Page 23 Installation Storing the Retainers The retainers, cap screws, and package are required when moving the machine to a different loca- tion. Store them carefully so that they do not get misplaced. Store the retainers and cap screws by attaching them to the position shown in the figure.

  • Page 24: Connecting The Machine To A Computer

    Installation Connecting the Machine to a Computer Do not use any electrical power supply that does not meet the ratings dis WARNING played on the AC adapter. Doing so may result in fire or electrical shock. Never use any AC adapter or power cord other than those included with WARNING the machine.

  • Page 25: Loading The Light-Absorbing Film

    Installation Loading the Light-absorbing Film Item used Light-absorbing film Film retainer Cap screws (3) Film frame Prepare the head. * This work for preparing the head is only required the first time that you load the light-ab- sorbing film after installing (or moving) the machine. Press the [Power/Movement] button.
  • Page 26 Installation Tighten the knob. If you perform imprinting while the knob is loose, the knob might come off during imprinting due to vibrations caused by the operation of the head. Tighten the knob with it positioned at the front of the machine. Not OK Tighten the knob.
  • Page 27 Installation Lift up and turn to the left the handle of the film retainer. Hold here. Tighten the cap screws. Cap screw Affix the light-absorbing film. Orient the film frame so that the adhesive sheet surface faces up. Orient the film frame so that the adhesive sheet surface faces up, and then position the film frame so that the part indicated with the circle in the following figure is on the left.
  • Page 28 Installation Affix the light-absorbing film to the film frame. Important: The light-absorbing film has a material side and a lens side. Affix it with the correct side facing up. Light-absorbing film When the notch is in When the notch opens to the right, the side that the bottom-right corner comes into contact with the material faces up.
  • Page 29 Installation Orient the film frame so that the adhesive sheet surface faces down. Light-absorbing film Light-absorbing film Ensure that the notch is in the upper right. Side that comes into contact with the lens Side that comes into contact with the material Insert the film frame with its protrusions and indentations aligned with the handle supports.
  • Page 30 For China 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(Ⅵ)) (PBB) (PBDE) 印刷电路板 × ○ × ○ ○ ○ 头部 × ○ ○ ○ ○ ○ 壳体、底架 × ○ ○ ○ ○ ○ 电源 × ○ × ○ ○...
