Summary of Contents for TECHWOOD TMAC-1096

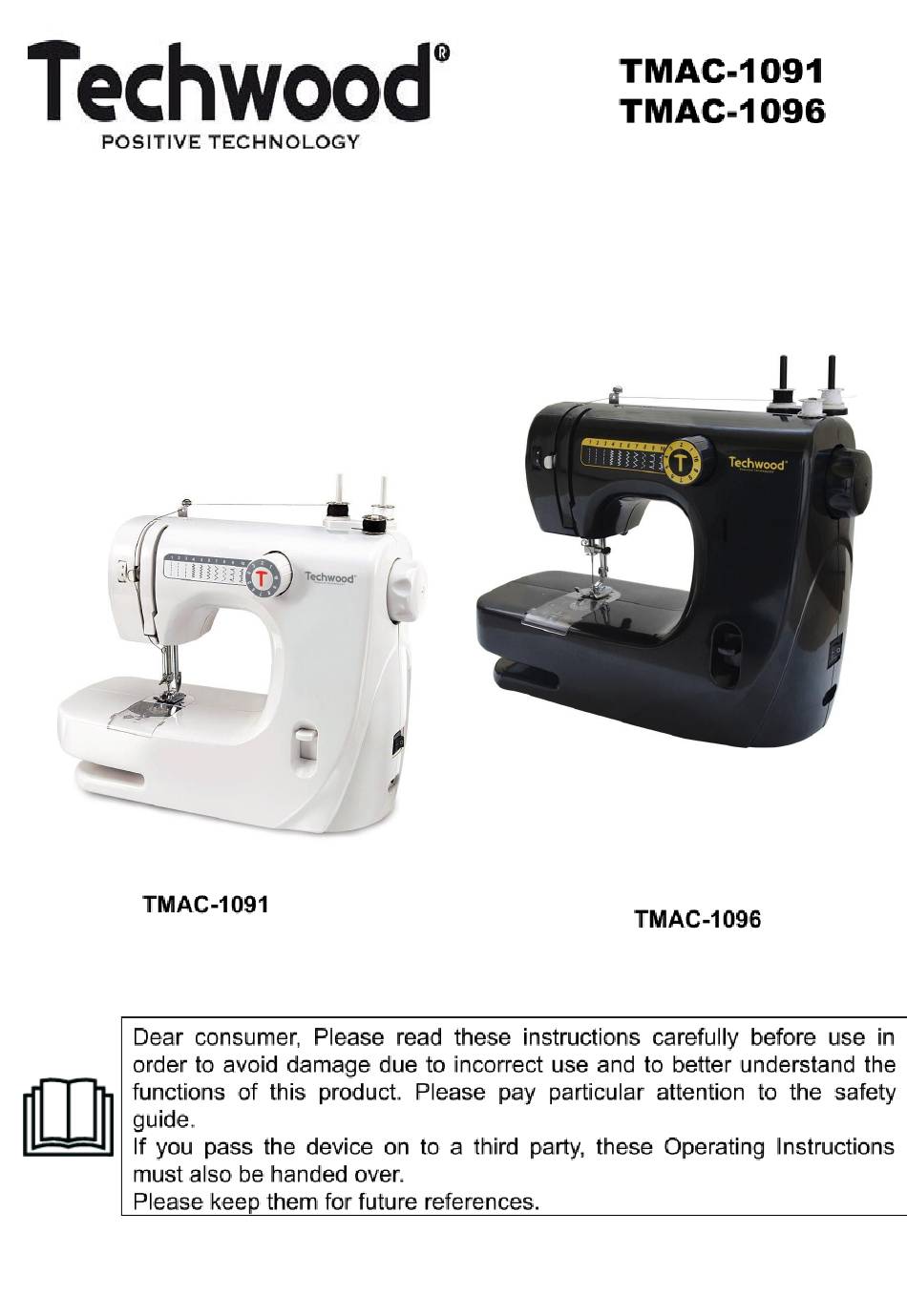

Page 1 SEWING MACHINE Instruction manual...
Page 2 IMPORTANT SAFEGUARDS Please read these instructions carefully before use. ❑ Keep present instructions for future references. ❑ Check that your mains voltage corresponds to that stated ❑ on the appliance. Only use the appliance for domestic purposes and ❑ household or similar applications such as: - staff kitchen areas, in shops, offices and other working environments;...
Page 3 This device is not a toy, do not leave children or people ❑ with disabilities to play with. Cleaning and maintenance must not be made b y children ❑ without supervision. Keep the appliance and its cord out of reach of children ❑...
Page 4 Never move the appliance by pulling the cord. Make sure ❑ the cord cannot get caught in any way. Never wind the cord around the appliance and do not bend ❑ Ensure that the power cord does not come into contact with ❑...
Page 5 The item must not be left unattended when it is connected ❑ to main supply. The item is not to be used, if it has been dropped or if there ❑ are visible signs of damage or if it is leaking. This appliance is only intended for household use.
Page 6 PBDE, the peak concentration is equal to or less than 0.1% of the weight of homogeneous material, and 0.01% for the 6th • cadmium. The symbol "DOUBLE SQUARE" means a double insulated. A basic insulation and supplementary insulation. This device requires no connection to the mass of a protective conductor grounded.
Page 7 –Function adjustment wheel –Function indication panel –Take up lever –Winding slice –Thread guide 1 –Thread guide 2 –Thread tension adjustment wheel –Thread clamp –Thread cutter –Thread guiding spring 1 –Needle bar –Thimble screw - Thread guiding spring 1 –Presser bar –Needle –Presser foot –Transparent cover...
Page 8 3. It is forbidden to apply other power adapter to this product. Preparation before operation Power connection The power jack of the sewing machine locates in the bottom right, show in Fig. Plug the power adapter (32) into corresponding jack (27. Plug the power plug of the power adapter (32) to AC socket, shown in the Fig.
Page 9 Extraction and installation of sewing needle must be implemented with power off and comply with the following steps: Turn “OFF” the power and rotate the hand wheel (24). Lift the needle bar(12) and sewing needle (16) to the height shown in the Fig after the hand wheel (24) rotated, and then stop rotating hand wheel (24) to keep it in static.
Page 10 3. Pull the thread to thread guide 1(6), shown in Fig 3 4.Put the thread into thread clamp (9) after passing through the thread guide 1(6), shown in Fig 4. 5. Wind the thread to thread guide 2 (7) from thread guide 1(6 )after passing through the thread clamp (9), shown in Fig 5.
Page 11 1. Lift presser foot and hold the upper thread by hand with a extraction length of about 10cm, shown in Fig1. 2. Take down transparent cover (18), shown in Fig2. 3.Put the bobbin (33) into the rotating shuttle of bobbin thread, shown in Fig3. 4.
Page 12 2. Function adjustment wheel (2) is not allowed to rotate when the machine is running. 4. Adjustment of function adjustment wheel (2) requires rotating counter clockwise the hand wheel (24) to lift the sewing needle (16) to the highest position. Texture-relative attentions: The machine can’t provide ordinary sewing to elastic textures, such as towel cloth, lint, elastic knitted fabric, etc.
Page 13 3. Adjust the function adjustment wheel (2) to function 1.2 or 3, shown in Fig. 4.Move presser bar lifter(20) upward, lift presser foot (17) and pull the bobbin thread and upper thread backward for about 10cm, shown in Fig4. 5. Put texture under the presser foot (17) and move presser bar lifter(20) downward to hold the texture, shown in Fig5.
Page 14 1. Adjust the function adjustment wheel (2) to function 4, 5, 6 and 7, shown in Fig1. 2.Sewing by same steps of straight sewing Three-needle “Zigzag” sewing Sewing method of three-needle “Zigzag” sewing is same as that of straight sewing except for adjusting the function adjustment wheel (2) to function 8.
Page 15 1.Put the bobbin on the Spool Pin (22), shown in Fig 1. 2. Wind the thread of the bobbin through the clamp above winding slice (5), shown in Fig2. 3. Put the winding pin(35) shown in Fig3. 4. Insert the empty bobbin onto winding pin(35), shown in Fig4. 5.
Page 16 A. Normal tension (Upper thread and bobbin thread show consistency between front and back) B. Over tension (Bobbin thread shows cycles on texture front side) C. Over loose (Upper thread shows cycles on texture back side) Adjustment for upper thread’s tension: 1.First, poke thread clamp (9) to make sure whether thread is jammed or not.
Page 17 Set the stitch selector dial to stitches”1,2,or 3” Insert the twin needle in the same way as a single needle. Follow instructions for single needle threading .To thread the left needle ,pass the thread through the left side of the needle clamp screw. To thread the right needle, pass the thread form the right side of the needle clamp screw.
Page 18 7.Threading didn’t follow requirement. Loose stitch 1.Incorrect threading; 1.Check threading; (looping 2.Incorrect installation of 2.Put bobbin correctly; stitches) bobbin 3.Choose sewing needle with thread bobbin; right specification; 3.Unreasonable adjustment 4. Adjust tension; stitch length; 4.Oven tension Puckers or 1.Over bigger needle for 1.Choose better needle;...
Page 19 SPECIFICATIONS Sewing Machine Rated Voltage: 6V DC Rated Current: 1500mA Adapter Input: 100-240V~ 50/60Hz / 0,4A Output: 6V DC 1500mA Norm Class II Made in P.R.C INFORMATION PUBLIEE VALEUR ET PRECISION UNITE INFORMATION PUBLISHED VALUE AND PRECISION UNIT MARQUE TECHWOOD...
Page 20 BRAND Sotech International Commercial Registration Number/N°SIRET: 4250992000016 33 Avenue du Maréchal de Lattre de Tassigny 94120 Fontenay sous Bois - France REFERENCE TMAC-1091 - TMAC-1096 MODEL IDENTIFIER Tension d’Entrée 100-240 Input Voltage Fréquence du CA d’entrée 50/60 Input AC frequency...

This manual is also suitable for:

Tmac-1091
