Toro TXL 2000 Operator's Manual
Compact tool carriers
Hide thumbs
Also See for TXL 2000:
- Operator's manual (60 pages) ,
- Installation instructions (4 pages) ,
- Operator's manual (16 pages)
Related Manuals for Toro TXL 2000
Summary of Contents for Toro TXL 2000

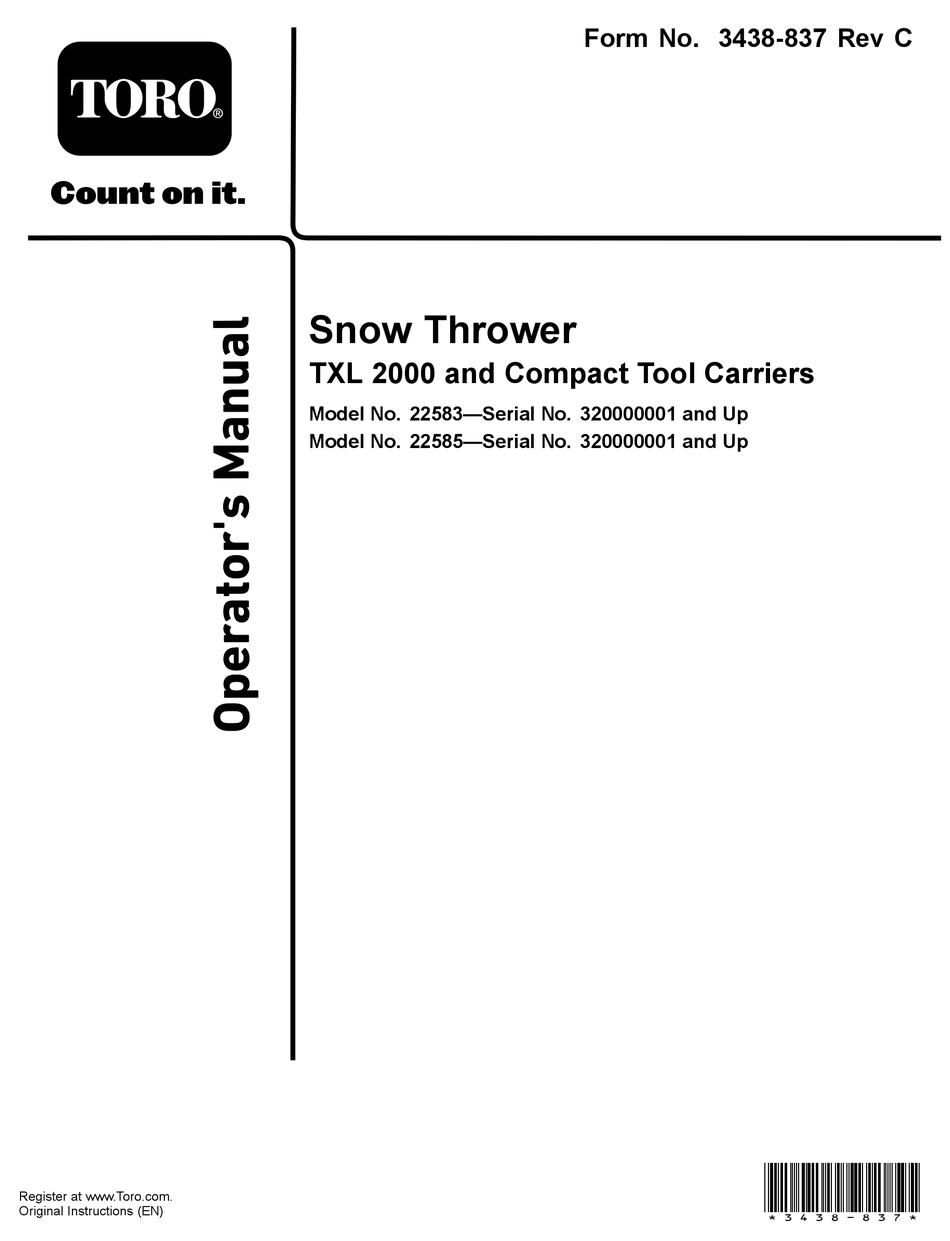

- Page 1 Form No. 3438-837 Rev C Snow Thrower TXL 2000 and Compact Tool Carriers Model No. 22583—Serial No. 320000001 and Up Model No. 22585—Serial No. 320000001 and Up *3438-837* Register at www.Toro.com. Original Instructions (EN)
- Page 2 Introduction g327524 Figure 1 This snow thrower is intended to be used on a Toro Model 22585 shown tool carrier or compact tool carrier. It is designed primarily for removing snow from paved surfaces, 1. Model and serial number location such as driveways and sidewalks, and other surfaces for traffic on residential or commercial properties.
-
Page 3: Table Of Contents
Contents Safety This machine has been designed in accordance with Safety ............... 3 General Safety ........... 3 ANSI B71.3-2014. Slope Safety ............3 Snow Thrower Safety ......... 4 General Safety Maintenance and Storage Safety......4 Safety and Instructional Decals ......5 This product is capable of amputating hands and Setup ................ -
Page 4: Snow Thrower Safety
• • Slopes are a major factor related to loss of control Let the engine and machine adjust to outdoor and tip-over accidents, which can result in severe temperatures before starting to clear the snow. injury or death. Operating the machine on any •... -
Page 5: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. Decal 93-7309 is used on Model 22583 only. decal139-8895 139-8895 1. -
Page 6: Setup
Setup Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. Accessory port kit (sold separately) Install the accessory port. – No parts required Install the attachment. – No parts required Install the control box. WARNING If you do not fully seat the quick-attach pins through the attachment mount plate,... -
Page 7: Installing The Control Box
• Allow the machine to cool before touching hydraulic components. • Do not touch hydraulic fluid spills. g328045 Figure 4 TXL 2000 with telescoping arms Installing the Control Box Place the control box on the control panel. Note: The magnets under the controller will No Parts Required hold it in place. -
Page 8: Product Overview
To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty. -
Page 9: Operation
Operation CAUTION Hydraulic couplers, hydraulic lines/valves, Determine the left and right sides of the machine from and hydraulic fluid may be hot. If you contact the normal operating position. hot components, you may be burned. • Wear gloves when operating the hydraulic Installing and Removing couplers. -
Page 10: Operating The Snow Thrower
Note: You can also place a sturdy object of the Position the skids evenly on both sides so that desired scraper height under the scraper and they are parallel with the surface and install the lower the scraper onto it. fasteners. -
Page 11: Clearing A Clogged Snow Thrower
Clearing a Clogged Snow Operating Tips Thrower • Engage and disengage the snow thrower auger at low throttle. • Use the chute direction control to rotate the chute WARNING 180° side to side . If the auger/impeller is running but there is no •... -
Page 12: Maintenance
Maintenance Determine the left and right sides of the machine from the normal operating position. CAUTION If you leave the key in the switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the switch before you perform any maintenance. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure... -
Page 13: Checking And Replacing The Skids
Shut off the engine and remove the key. Remove the nuts, carriage bolts, and scraper blade. g327729 Note: The snow thrower for the TXL 2000 uses Figure 11 10 carriage bolts and 10 nuts. Model 22585 1. Nut (2) 3. Washer (2) 2. -
Page 14: Checking The Hydraulic Lines
Checking the Hydraulic Storage Lines Before long term storage, wash the attachment with mild detergent and water to remove dirt and Service Interval: Before each use or daily grime. WARNING Check the condition of the scraper blade. Hydraulic fluid escaping under pressure can Check and tighten all bolts, nuts, and screws. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The snow thrower does not operate. 1. A hydraulic coupler is not completely 1. Check and tighten all couplers. connected 2. A hydraulic coupler is damaged. 2. Check the couplers and replace any that are damaged. 3. - Page 16 While the exposure from Toro products may be negligible or well within the “no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
