Safety Vision SV-IR-THRM User Manual

High-precision temperature measurement sensor
Hide thumbs Also See for SV-IR-THRM:
Table of Contents

Advertisement

Quick Links

sv-ir-thrm
UsEr GUiDE
PAtENt PENDiNG

Advertisement

Table of Contents
loading

Related Manuals for Safety Vision SV-IR-THRM

Summary of Contents for Safety Vision SV-IR-THRM

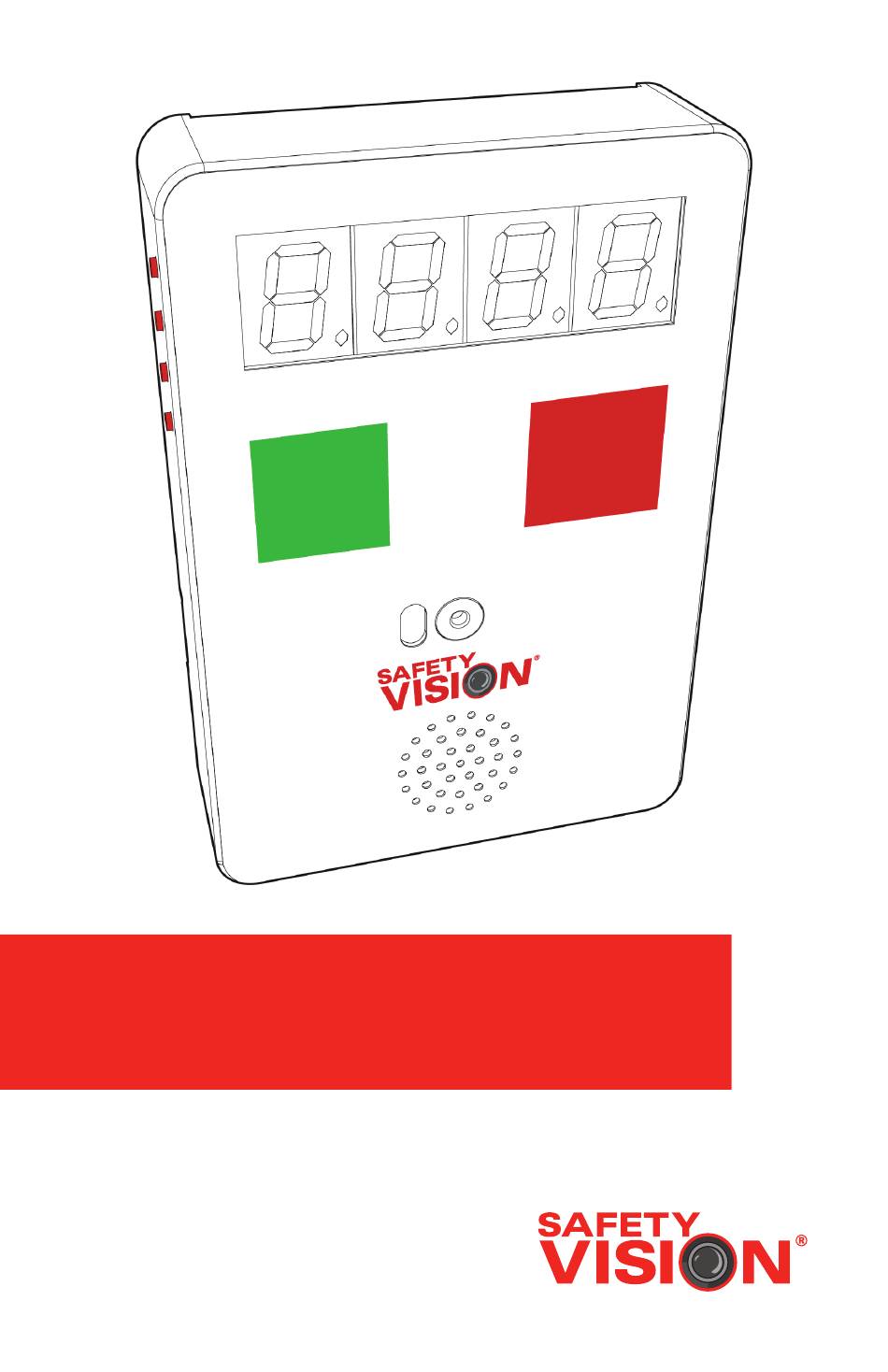

  • Page 1 UsEr GUiDE PAtENt PENDiNG...
  • Page 2 Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

  • Page 3: Table Of Contents

    Contents Overview Features Installation Horizontally Rotating Mounting Bracket 1-1/4” U-bracket SV-LCD-RM1.0-4 SV-IR-THRM-BRKT Components Operating the SV-IR-THRM Start up Shutdown Display Version Number Check the Device ID Settings Volume Temperature Display Units Not Used Minimum Temperature Alert Maximum Detection Distance...
  • Page 4 ID Number Restore Factory Settings Thermo Detection Notes Appendix A: Specifications Appendix B: Dimensions FCC Compliance Statement...

  • Page 5: Features

    Overview Using a high-precision temperature measurement sensor imported from Belgium, the mini thermo detector measures the human body surface temperature without any contact. When an abnormal body temperature is detected, an audible voice warning will occur. This can be used as a stand-alone product or integrate with walk-through metal detectors, doors, intelligent access control systems, and more.

  • Page 6: Installation

    Installation The SV-IR-THRM can be installed using any of four mounting brackets. Each bracket lines up with a specific hole pattern on the back of the thermometer. The types of mounting brackets are: 1 Horizontally rotating (included) 2 1-1/4” U-bracket (included) 3 SV-LCD-RM1.0-4...

  • Page 7: Horizontally Rotating Mounting Bracket

    Horizontally Rotating Mounting Bracket The horizontally rotating mounting bracket uses the holes indicated below on the back of the thermometer shroud. Remove the two (2) Phillps head screws that secure the shroud to the thermometer.
  • Page 8 Line up the holes of the bracket to the center two holes (shown on page 3). Using the two Phillips head screws (removed in step 1) to secure the bracket to the shroud. Using the included three self-tapping screws (and wall anchors if necessary),...
  • Page 9 Slide the thermometer with attached bracket into the bracket arm and secure it in place with the included two Phillips head screws and washers.

  • Page 10: 1-1/4" U-Bracket

    1-1/4” U-bracket The 1-1/4” U-bracket uses any two holes shown below, on the back of the thermometer shroud, to mount the thermometer to a rail or pole. Using two of the included Phillips head screws, secure the U-bracket, around a railing...

  • Page 11: Lcd-Rm1.0-4

    SV-LCD-RM1.0-4 NOTE: When installing the SV-LCD-RM1.0-4, it’s necessary to use the included hardware kit SV-IR-THRM-SCRW. The SV-LCD-RM1.0-4 mount uses the indicated holes below on the back of the thermometer shroud.
  • Page 12 Line up the holes of the diamond ball base to the center two holes and use the 2 Phillips head screws included in SV-IR-THRM-SCRW to securely fasten the base to the thermometer. Using the four self-tapping screws (and wall anchors if necessary), secure the...

  • Page 13: Sv-Ir-Thrm-Brkt

    SV-IR-THRM-BRKT The SV-IR-THRM-BRKT bracket uses the four outermost shown below, on the back of the thermometer shroud, to mount the thermometer to a rail or pole. Remove the retaining screw and slide the mounting plate off.
  • Page 14 Align the diagonal slots of the bracket to the four outermost holes on the thermometer. Using the four Phillips head screws (wrapped in packing foam included in the box), securely fasten the bracket to the thermometer. Using the included four self-tapping screws (and wall anchors if necessary), secure...
  • Page 15 Slide the thermometer with mounting bracket onto the mounting plate and replace the retaining screw. Loosen the wing nut on either side of the bracket to adjust the angle of the thermometer.

  • Page 16: Components

    Components 1 Enter Button 6 Power Input • Press the Enter button to confirm 7 Distance Sensor selection. 8 Speaker 2 Adjust Button • Verbal alarm when temperature is • When inputting a numerical value, normal (“normal temperature”) or press the Adjust button to change abnormal (“please check again”).

  • Page 17: Operating The Sv-Ir-Thrm

    Operating the SV-IR-THRM Start up Connect the power supply and wait for the display to show 0. Shutdown To shutdown the system, turn off power source or unplug power cable. Display Version Number Press the Select button twice and the version number will display, then press the Select button to return to the main interface.

  • Page 18: Settings

    Settings Use the following steps to access the thermometer’s settings: Press the Enter button (CCCC will appear on the display) Press the Select button once (1234 will show on the display) Press the Select button once more, then use the Adjust and Select buttons to input the password 1111.

  • Page 19: Volume

    The settings are in the following order (shown with the default and range values): Volume Not Used Default: 6 Default: 1.0 Range: (0 - 8) Range: (1.0 - 7.0) Note: 0 - mute, 8 - loudest. Temperature Display Units...

  • Page 20: Maximum Detection Distance

    (Settings cont.) Maximum Detection Distance Ambient Body Default: 0200 Default: 5 Range: (0000 - 0400) Range: (5 - 6) Note: Maximum distance for temperature detection (in mm) Minimum Detection Distance Indicator Light Length Default: 050 Default: 1.0 Range: (000 - 200) Range: (1.0 - 3.0)

  • Page 21: Id Number

    ID Number Press the Enter button (CCCC will appear on the display) Press the Select button once (1234 will show on the display) Press the Select button once more, then use the Adjust and Select buttons to input the password 1111.

  • Page 22: Restore Factory Settings

    Restore Factory Settings Use the following steps to restore the IR thermometer back to factory settings: Press the Enter button (CCCC will appear on the display) Press the Select button once (1234 will show on the display) Press the Select button once more, then use the Adjust and Select buttons to input the password 1111.

  • Page 23: Appendix A: Specifications

    Appendix A: Specifications PArT NumBEr wOrkINg vOLTAgE SV-IR-THRM TEmPErATurE mEASurEmENT wOrkINg TEmPErATurE SPEED -14° F ~ 104° F (-10° C ~ 40° C) Less than 1 second OPErATINg humIDITy TEmPErATurE mEASurEmENT 95%, non-condensing AccurAcy DImENSIONS (w × h × D) ± 0.3° 4.34 × 6.45 × 1.3in (110.24 × 164 × 33mm)

  • Page 24: Fcc Compliance Statement

    FCC Compliance Statement This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 25 Corporate Headquarters 6100 W. Sam Houston Pkwy. N. Main: 713.896.6600 Houston, TX 77041-5113 Toll Free: 800.880.8855 www.safetyvision.com Fax: 713.896.6640 Copyright © 2020 Safety Vision, LLC All Rights Reserved.
