Summary of Contents for pullman Ermator HTC 26D

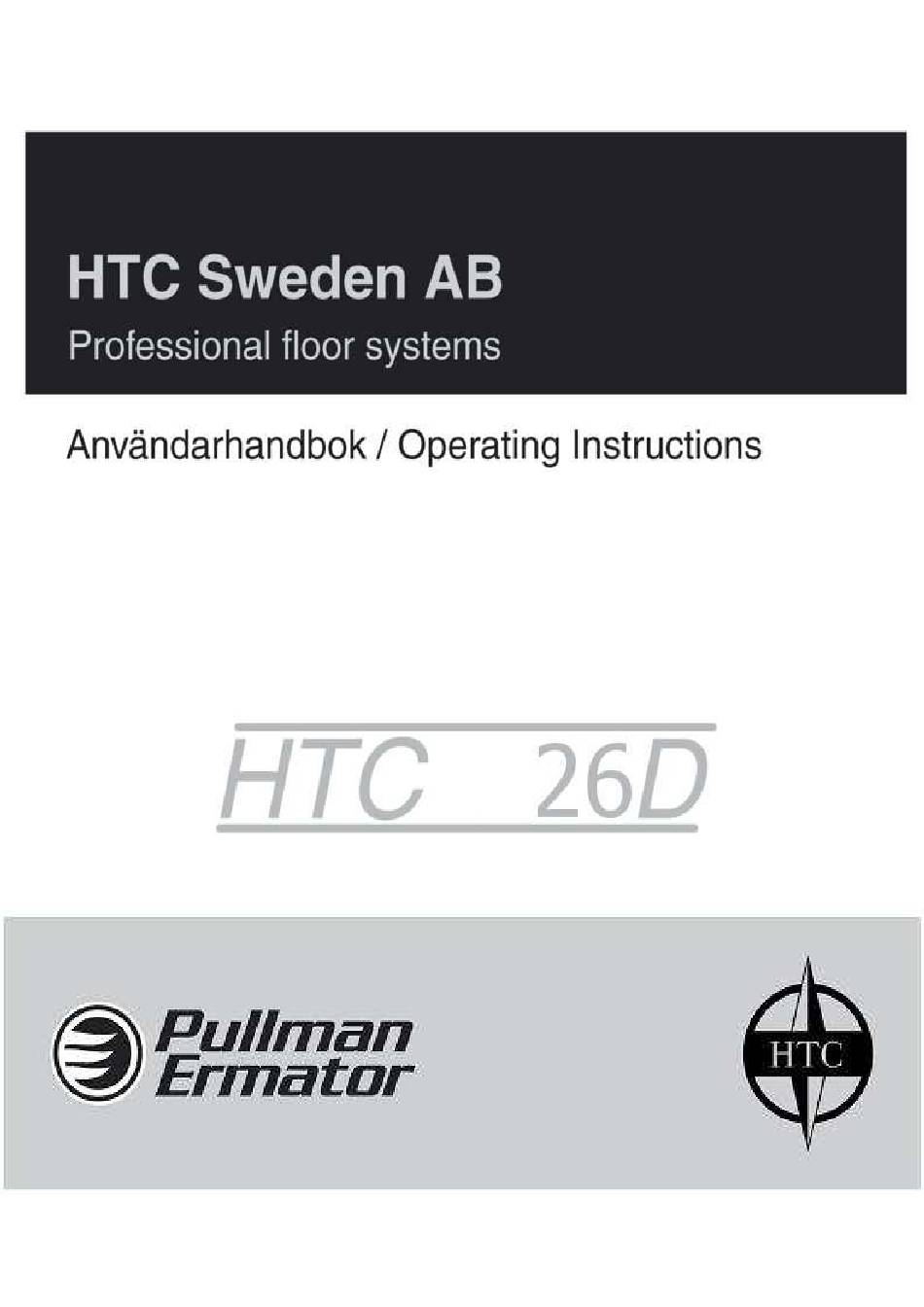

- Page 1 Revision 3...
- Page 2 777 91 Smedjebacken Sverige/Sweden Produktbeteckning/ Product designation Stoftavskiljare type HTC 26D och HTC 26D/110V. Dust extractor type HTC 26D and HTC 26D/110V. EU-riktlinjer EU-guidelines Produkten i fråga överensstämmer med följande EU-riktlinje: The product in question conforms to the following EU-guidelines: Maskindirektivet Machinery directive………………….
- Page 3 Dear Customer,. We thank you for choosing HTC Sweden AB as your supplier. We hope that the vacuume cleaner of model HTC 26D will be to your satisfaction and meet your expectations. We have chosen Pullman-Ermator AB as the manufacture of our product. They have been a manufacture of professional dust extractor since 1967 and have thru the years built up a know how in this area.
-
Page 4: Safety Instructions
Un packing When unpacking the machine, please check that the vacuum cleaner, hoses and accessories do not have any transportation damages. Safety Instructions Handling Warning • Cables damaged through crunching or cracking can be dangerous if used and should be replaced immediately. - Page 5 Handling The machine is for sucking and separating dry, not combustive dust with limit value of explosion > > > > 0.1mg/m The motor is started by the switch. Dust laden air is then sucked through the inlet valve at high speed via the suction hose.
- Page 6 TUBE-FILTER Loosen the 3 clamps between the upper and lower housing. Lift out the filter and holder and place it gently on a table. Remove all hose clamps and then remove all (7 pcs) filters. Insert new filters in reversed order. Tighten the clamps hard. Only original filter may be used.
-
Page 7: Warranty
Problem solving HTC 26D are manufactured and made for a severe environment and tasks, but the user must notice that the machine contents of components which must be protected from hits and blows. Filter, sealing connections are carefully chosen for the environment of the operator. Therefore must the machine be treated with knowledge as to work correctly for many years. -
Page 8: Tekniska Data
TEKNISKA DATA TECHNICAL PERFORMANCE HTC 26 D 230V 110V MÄRKSPÄNNING 230 VAC, 12 A, 1-fas 110 VAC, 24 A, 1-fas Voltage EFFEKTUTTAG max 2600 W (2x1300) 2400 W (2x1200) Power, max MAX LUFTMÄNGD 124 l/s Airflow MAX UNDERTRYCK 22 kPa Vacuum 7.5 m x ∅... - Page 9 Fig. 1 Byte av filter typ. Figure 1 Change of filter type. Fig 2. Byte av Longopack påse Figure 2. Change of longopack. Revision 3...
- Page 10 Reservdelar för 120 V modell. Spareparts for 120 V model. Revision 3...
- Page 11 Reservdelar för 120 V modell. Spareparts for 120 V model. Pos. Qty HTC26D 110V Description 200600127 Clean unit 200600812a Tank top complete 1351197 Seal 200500230 Ring 200600811 Tank complete 200600819 Handle kit 200600820 Mount kit 200600817 Tube filter 200600813 Filter package complete 200600606 Excentric lock kit 200600810...
- Page 12 Reservdelar för motorpaket 120 V. Spareparts for engine package 120 V. Revision 3...
- Page 13 Reservdelar för motorpaket 120 V. Spareparts for engine package 120 V. Revision 3...
- Page 14 Revision 3...
