VIZIT-M440C
M
is a colour monitor with a built-in memory for 64 images. The monitor is intended for use in
doorphones.
1
1.
Handset
2
.
DOOR OPEN button
3.
Increase value / view next image button
4.
Decrease value / view previous image button
5.
MENU
button
6.
AWAY mode button
7. AWAY mode LED indicator
8.
Capture image button
9
.
Switch to extra camera button
10.
MONITOR button
11.
Power LED
12.
Screen

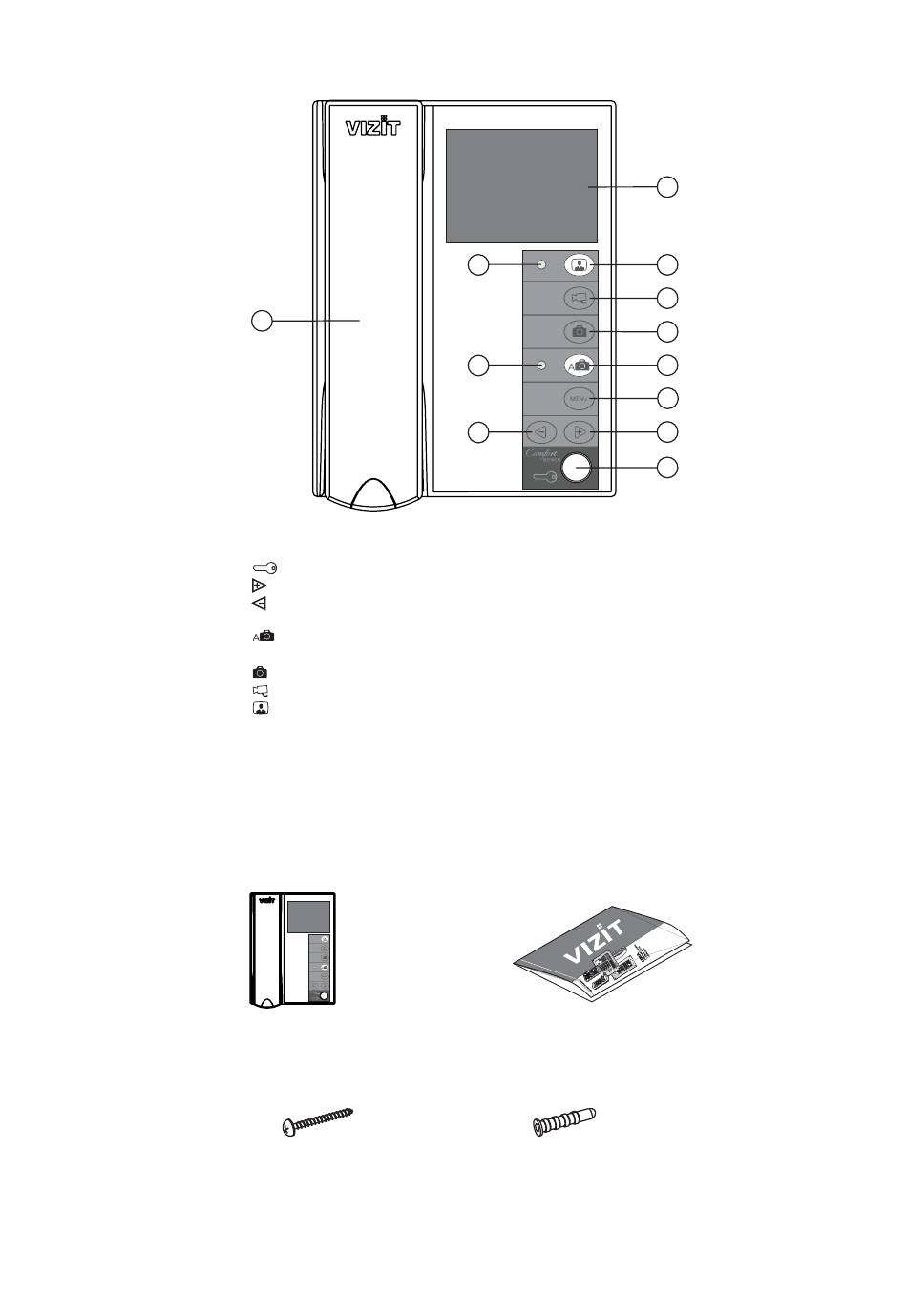

Figure
1 -
x 1
Monitor
VIZIT M
- 440
CM
x 3
Screw 3.5 25
-
х
11
7
4
Appearance and controls layout
PARTS LIST
Operating Instruction
Fasteners
Concrete Insert 6х30
12
10
9
8
6
5
3
2
x 1
x 3
VIZIT-M440C
M
VIZIT
video
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViziT VIZIT-M440CM
Summary of Contents for ViziT VIZIT-M440CM
- Page 1 7. AWAY mode LED indicator Capture image button Switch to extra camera button MONITOR button Power LED Screen Figure Appearance and controls layout PARTS LIST Monitor Operating Instruction VIZIT M - 440 Fasteners Screw 3.5 25 х Concrete Insert 6х30...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION ! The Monitor does not contain voltage above Do not perform any connections or repair when the power is on. Take care not to spill any liquids or chemically active substances on the product. Unplug the power supply unit before cleaning the monitor. Clean by wiping with dry soft cloth. Do not use any liquid cleaners, aerosol cleaners or abrasive agents. - Page 3 Make 3 holes in the wall. Refer to page 25 for Mounting Pattern. Drive in concrete inserts and screws supplied with your monitor. Connect the wires to the terminals of your monitor as shown in Fig. 4-7. Match the monitor’s fixing lugs with the screws in the wall, and hook the monitor on the screws.
- Page 4 EXAMPLES OF WIRING DIAGRAMS DC IN MONITOR VIZIT M - 440 Power Supply SA03010029 Door bell 18В, 0.5А DATA button Extra Camera 12 V , 0.3 А To other apartments 82-Ohm resistor should be To next commutators connected between the VO...
- Page 5 Extra Camera 12 V , 0.3 А MONITOR VIZIT M - 440 Extra Handset DATA Main Monitor HS/MON • Individual / storey doorstation activation EQUIV • Switching of video channels • Intercom priority over Extra Handset COMMUTATOR BKM-440 INDIVIDUAL / STOREY...
- Page 6 MONITOR DATA MONITOR TERMINAL VIZIT M - 440 VIZIT MT DATA AW AY ME U HS/MON Main Monitor EQUIV • Individual / storey doorstation activation COMMUTATOR • Extra Monitor Switching of video channels BKM-440 • • Intercom priority over Extra...
- Page 7 SETUP Before turning the power on, make sure that there is no misconnection or risk of short circuit. § Turn on the power supply unit or commutator BKM-440. The monitor’s Power LED (see Fig.1) illuminates with green light. Note. The Power LED may not illuminate at once, after turning the power on; the delay may take up to 7 seconds. If in 7 seconds the Power LED is still dim, then the monitor is in the sleep mode (calls are ignored, and all buttons except for are disabled).
- Page 8 Note. If your monitor is connected to Commutator BKM-440 as an extra monitor (see Fig. 7), then individual settings for the first and second doorstation are not available, settings will be the same for both doorstations. To perform settings, make a call to the monitor from either connected doorstation.
-
Page 9: Specifications
SPECIFICATIONS Screen 3.5” (89mm) TFT LCD Colour system Video IN impedance voltage 1…1.8 V p-p Operating voltage 15…27 Power consumption max. Dimensions (W)x(H)x(D) Weight 0.6 kg OPERATING CONDITIONS Ambient temperature range 5°C to + 40°C Relative humidity of air up to at + 25°C...
