ViziT -M427C Operating Instructions Manual

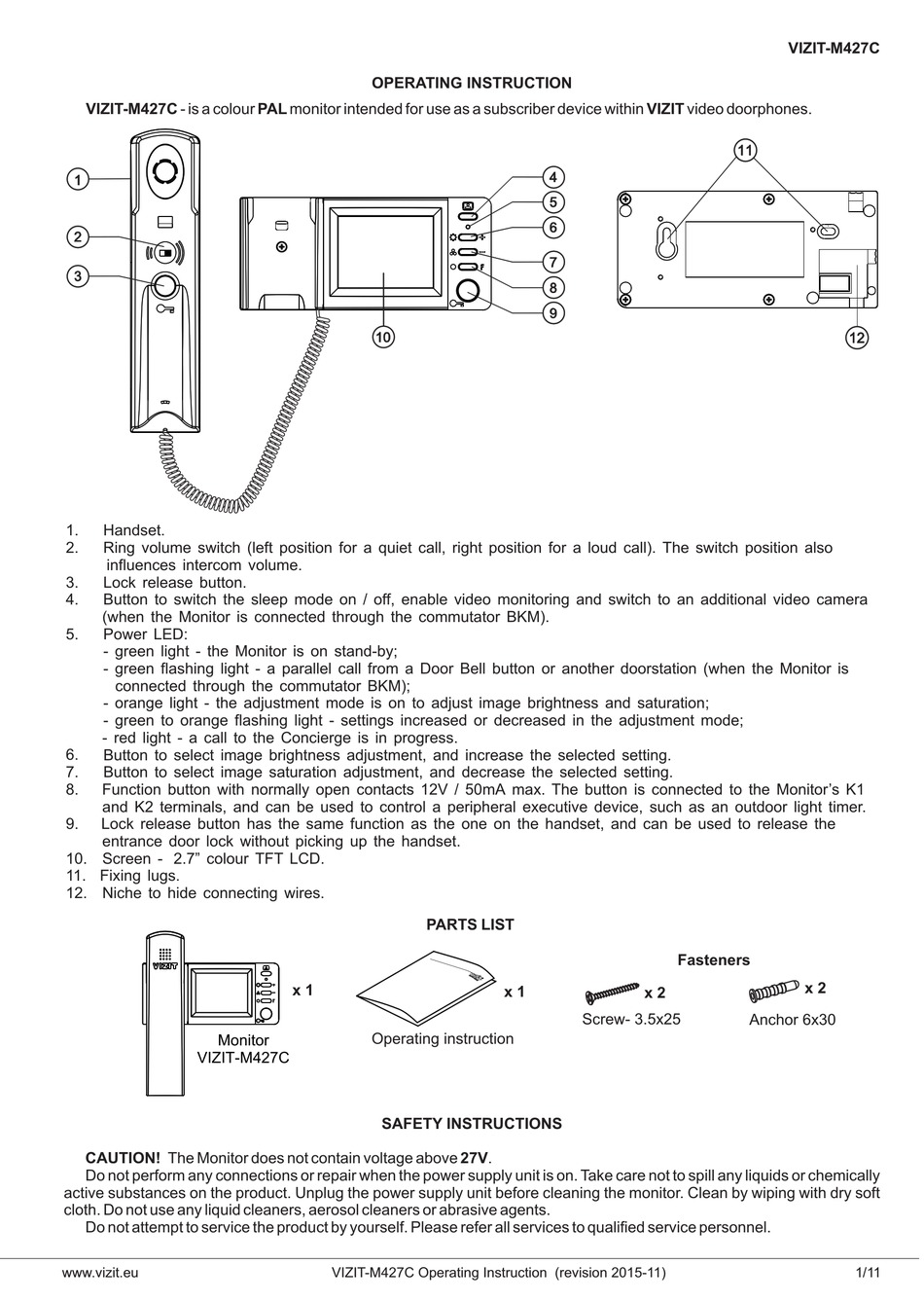

VIZIT-M427C - is a colour
1
2
3
1. Handset.
2. Ring volume switch (left position for a quiet call, right position for a loud call) The switch position also
influences intercom volume
3. Lock release button.
4. Button to switch the sleep mode on / off, enable video monitoring and switch to an additional video camera
( when the Monitor is connected through the commutator BKM)
5. Power LED :
- green light - the Monitor is on stand-by;
- green flashing light
connected through the commutator BKM ;
- orange light - the adjustment mode is on to adjust image brightness and saturation;
- green to orange flashing light - settings increased or decreased in the adjustment mode;
- red light - a call to the Concierge is in progress.
6. Button to select image brightness adjustment, and increase the selected setting.
7. Button to select image saturation adjustment, and decrease the selected setting.
8. Function button with normally open contacts
and K2 terminals, and can be used to control a peripheral executive device, such as an outdoor light timer.
9. Lock release button has the same function as the one on the handset, and can be used to release the
entrance door lock without picking up the handset.
10. Screen - 2.7" colour
11. Fixing lugs .
12. Niche to hide connecting wires.

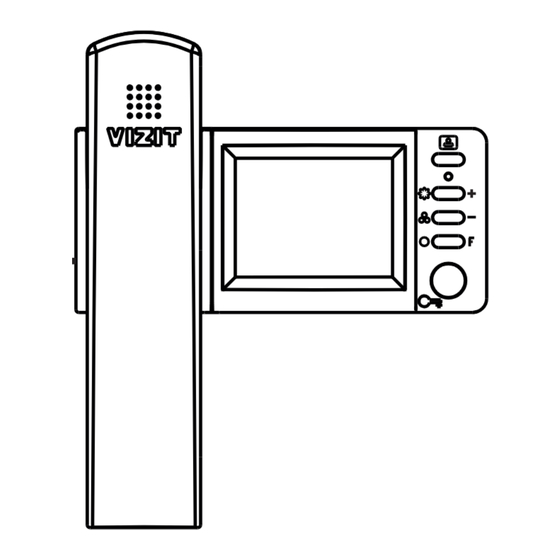

Monitor
VIZIT M - 427
CAUTION ! The Monitor does not contain voltage above
Do not perform any connections or repair when the power supply unit is on. Take care not to spill any liquids or chemically
active substances on the product. Unplug the power supply unit before cleaning the monitor. Clean by wiping with dry soft
cloth. Do not use any liquid cleaners, aerosol cleaners or abrasive agents.
Do not attempt to service the product by yourself. Please refer all services to qualified service personnel.
www. vizit.eu
OPERATING INSTRUCTION
PAL monitor intended for use as a subscriber device within
10
.
- a parallel call from a Door Bell button or another doorstation when the Monitor is
)
12
TFT LCD.
PARTS LIST
x 1
Operating instruction
C
SAFETY INSTRUCTIONS
VIZIT-M4 27С Operating Instruction (revision
4
5
6
7
8
9
.
V / 50 mA max. The button is connected to the Monitor's K1
x 1
Screw 3.5 25
27V .
201 -
VIZIT-M427C
VIZIT video doorphones.
11
.
(
Fasteners
x 2
- х
Anchor 6х30
5 11)
12
x 2
1 11 /
