Vericom V-Sense Brake Meter Quick Start Manual

The Vericom V-Sense

Sense Brake Meter is a simple test system that is ideal for testing vehicles on a 'flat' paved (or smooth)

test surface. If your test needs require more than general brake testing, we suggest the Vericom V-Sense

PC, V-Sense DAQ, or Road Geometry systems.

What's Included

•

Wall Charger/Power Supply

•

Tablet with V-Sense Director

•

Heavy Duty Vacuum Cup Mount

•

16GB of Test Data Storage (10,000+

brake tests)

The V-Sense User Guide is at Vericom Website

and on the USB Drive included with the package.

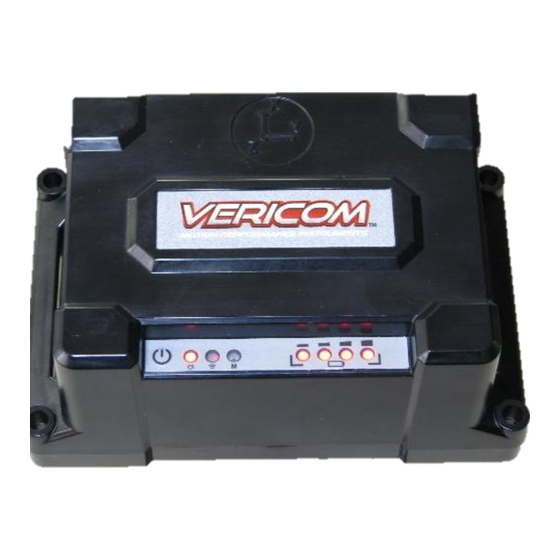

V-Sense POD LED Panel – Power ON/OFF, Battery, Connected:

Press and hold the power button

far left of the LED panel will illuminate when power is 'on.' The 4 LED lights on the right side of the LED

panel indicate the battery level of the V-Sense POD.

Connect a V-Sense POD to the Tablet with wireless Bluetooth: The tablet contained with your Vericom

V-Sense Brake Meter package is preloaded with the Vericom V-Sense

preconfigured to connect to the V-Sense POD included within the case. To connect the tablet to the V-

Sense POD via Bluetooth, power on the POD and then open the Tools screen on the Vericom V-Sense

Director app (tablet). From the drop-down box, select the POD for the connection. Then click the

'Connect' button. Once the POD is connected, the connection box will show a green check mark and the

connect button will become a 'Disconnect' button.

Brake Meter, is the industry leading test kit for standard Brake Testing. The V-

(hold for ~3 seconds to power the POD on or off). The light on the

Power Button V-Sense is ON V-Sense Connected Light V-Sense POD Battery Level

V-Sense

Brake Meter

Quick Start Guide

Director application. It is also

Table of Contents

Need help?

Do you have a question about the V-Sense Brake Meter and is the answer not in the manual?

Page 1 V-Sense POD included within the case. To connect the tablet to the V- Sense POD via Bluetooth, power on the POD and then open the Tools screen on the Vericom V-Sense Director app (tablet). From the drop-down box, select the POD for the connection. Then click the ‘Connect’...
Page 2 V-Sense Brake Meter © Quick Start Guide The V-Sense Director tablet app includes 6 primary screens: Start Testing, File Setup, V-Sense Director Sensor Setup, Test Viewer, Manage Tests, and Tools. (Tablet App) Start Testing The Start Testing screen is the screen from where all testing is initiated. This screen includes the ‘Send Test Setup’...
Page 3 V-Sense Brake Meter © Quick Start Guide After you select the ‘Send Test Setup’ button, the V-Sense Director app will send the test setup to the V- Sense POD. During the ‘setup’ process, the V-Sense sensor POD is also ‘Zero Adjusting.’ DO NOT MOVE during the ‘Send Test Setup’...
