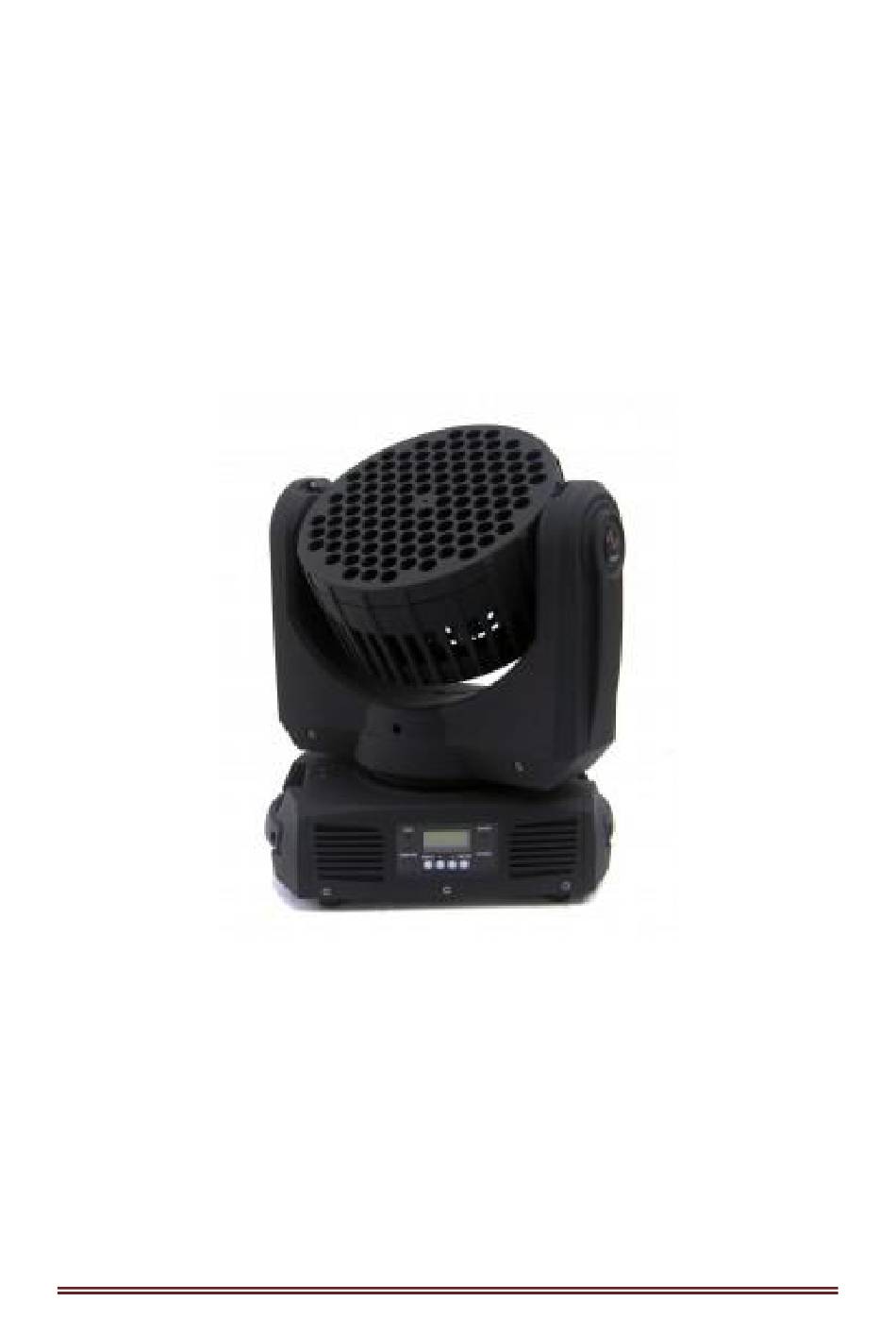

- Page 1 USER MANUAL LED BEAM MOVING HEAD 108 Professional Entertainment Technology www.flash-butrym.pl Strona 1...
- Page 2 TABLE OF CONTENTS Safety Instruction Technical Specification How To Set The Unit How To Control The Unit Troubleshooting Fixture Cleaning Please read carefully the instruction, which includes important infor- mation about the installation. usage and maintenance WARNING Please keep this User Guide for future consultation. If you sell the unit to another us- er.be sure that they also receive this instruction booklet Unpack and check carefully there is no transportation damage before using the unit.
- Page 3 Unit surface temperature may reach up to 85°C .Dont touch the housing bare-hand during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or serving. In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself.
- Page 4 CREE LED's and it very attractive light. And it have 108 high-quality LED Red, Green, Blue, White, that make it to provides a very good light and bright, in which make it have a strong and very concentrated light beam.
-
Page 5: Installation
Two side handles for transportation Degree of protection: IP20 INSTALLATION Two handles for screw hooks Indoor use only Mounting head in any position Minimum distance to illuminated surfaces : 1 mouth Keep a minimum distance from the surrounding area of the head : 0.5 m CONNECTORS Power connector IN: Neuritic Power-Con Power connector OUT : Neuritic Power-Con... - Page 6 To show the various menus and the selected functions DMX input Present MASTER Master Mode Slave Slave Mode Sound Flashing Sound activation Button MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions DMX Address...
- Page 7 White Balance GREEN BLUE TILT BLUE DIMMER Temp. 31*C Pro Defaults Defaults Auto Defaults Fixture Reset DMX Controller By using a universal DMX Controller to control the units, you will need to set DMX address from 1 to 512 so that the units can receive DMX signal Press the MENU button up to when the DMX Address is showing on the display.
- Page 8 button and the display will blink. Use DOWN and UP button to change the DMX512 address. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
- Page 9 CH10 000-255 Strobe CH11 000-255 Red (0%-100%) CH12 000-255 Green (0%-100%) CH13 000-255 Blue (0%-100%) CH14 000-255 White (0%-100%) CH15 000-255 Color Auto Run CH16 000-255 Color Auto Run Speed Reset Press the MENU button up to when the Reset is blinking on the display. Pressing ENTER button and all channels of the unit will return to their standard position.
