Flash butrym LED Six Hole RGB User Manual

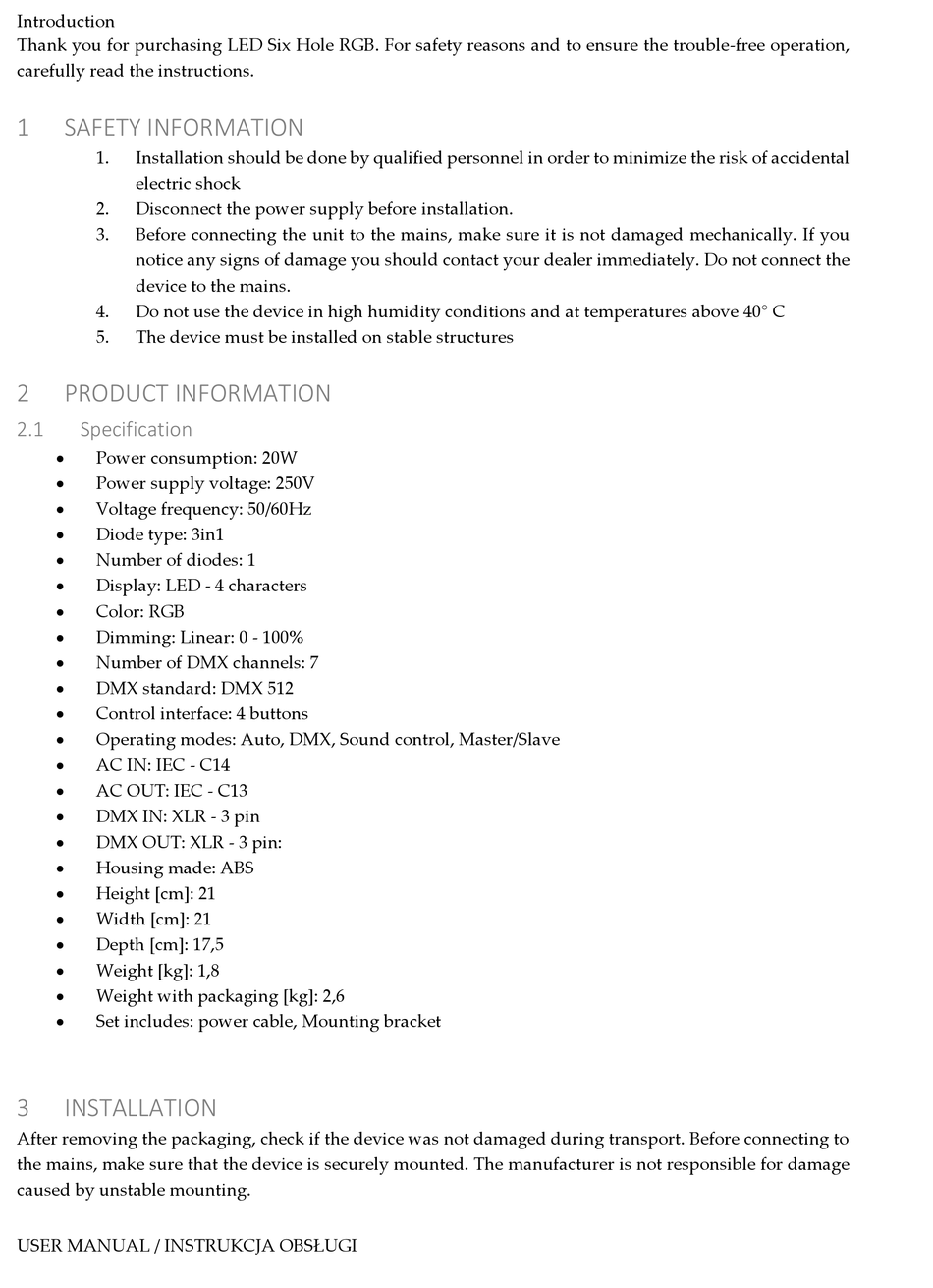

Introduction
Thank you for purchasing LED Six Hole RGB. For safety reasons and to ensure the trouble-free operation,
carefully read the instructions.
1

SAFETY INFORMATION

1. Installation should be done by qualified personnel in order to minimize the risk of accidental
electric shock
2. Disconnect the power supply before installation.
3. Before connecting the unit to the mains, make sure it is not damaged mechanically. If you
notice any signs of damage you should contact your dealer immediately. Do not connect the
device to the mains.
4. Do not use the device in high humidity conditions and at temperatures above 40° C
5. The device must be installed on stable structures
2

PRODUCT INFORMATION

2.1 Specification

Power consumption: 20W

Power supply voltage: 250V

Voltage frequency: 50/60Hz

Diode type: 3in1

Number of diodes: 1

Display: LED - 4 characters

Color: RGB

Dimming: Linear: 0 - 100%

Number of DMX channels: 7

DMX standard: DMX 512

Control interface: 4 buttons

Operating modes: Auto, DMX, Sound control, Master/Slave

AC IN: IEC - C14

AC OUT: IEC - C13

DMX IN: XLR - 3 pin

DMX OUT: XLR - 3 pin:

Housing made: ABS

Height [cm]: 21

Width [cm]: 21

Depth [cm]: 17,5

Weight [kg]: 1,8

Weight with packaging [kg]: 2,6

Set includes: power cable, Mounting bracket
3 INSTALLATION
After removing the packaging, check if the device was not damaged during transport. Before connecting to
the mains, make sure that the device is securely mounted. The manufacturer is not responsible for damage
caused by unstable mounting.
