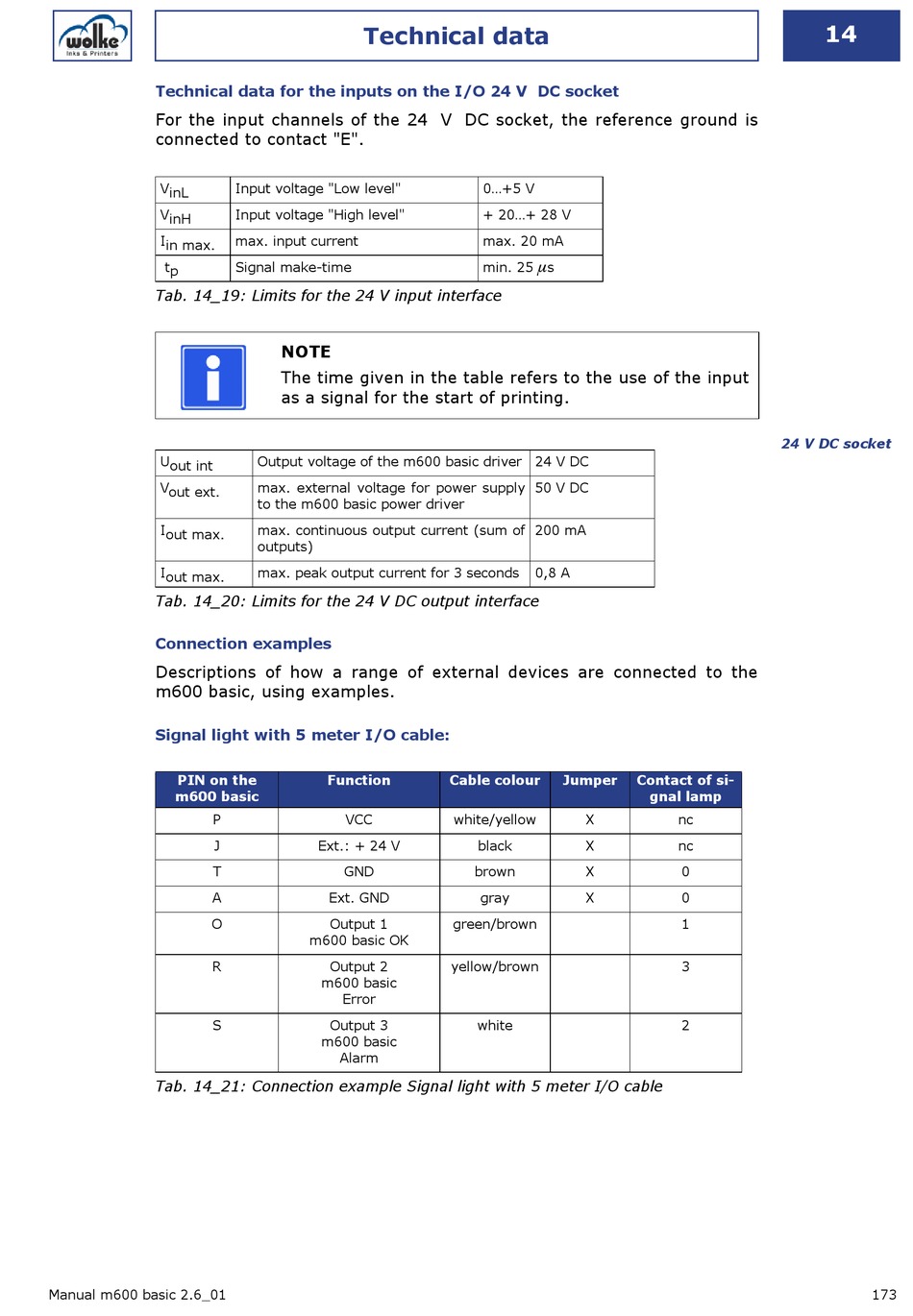

Technical data for the inputs on the I/O 24 V DC socket
For the input channels of the 24 V DC socket, the reference ground is
connected to contact "E".
V inL
V inH
I in max.
t p

Tab. 14_19: Limits for the 24 V input interface

U out int
V out ext.
I out max.
I out max.

Tab. 14_20: Limits for the 24 V DC output interface

Connection examples
Descriptions of how a range of external devices are connected to the
m600 basic, using examples.
Signal light with 5 meter I/O cable:
PIN on the
m600 basic
P
J
T
A
O
R
S

Tab. 14_21: Connection example Signal light with 5 meter I/O cable

Manual m600 basic 2.6_01
Technical data
Input voltage "Low level"
Input voltage "High level"
max. input current
Signal make-time
NOTE
The time given in the table refers to the use of the input
as a signal for the start of printing.
Output voltage of the m600 basic driver 24 V DC
max. external voltage for power supply
to the m600 basic power driver
max. continuous output current (sum of
outputs)
max. peak output current for 3 seconds
Function
VCC
Ext.: + 24 V
GND
Ext. GND
Output 1
m600 basic OK
Output 2
m600 basic
Error
Output 3
m600 basic
Alarm
0...+5 V
+ 20...+ 28 V
max. 20 mA

min. 25 s
50 V DC
200 mA
0,8 A
Cable colour Jumper
white/yellow X
black X
brown X
gray X
green/brown
yellow/brown
white
24 V DC socket
Contact of si-
gnal lamp
nc
nc
0
0
1
3
2
14
