Single Patient Use SpO
32
Model 515B/C User's Manual

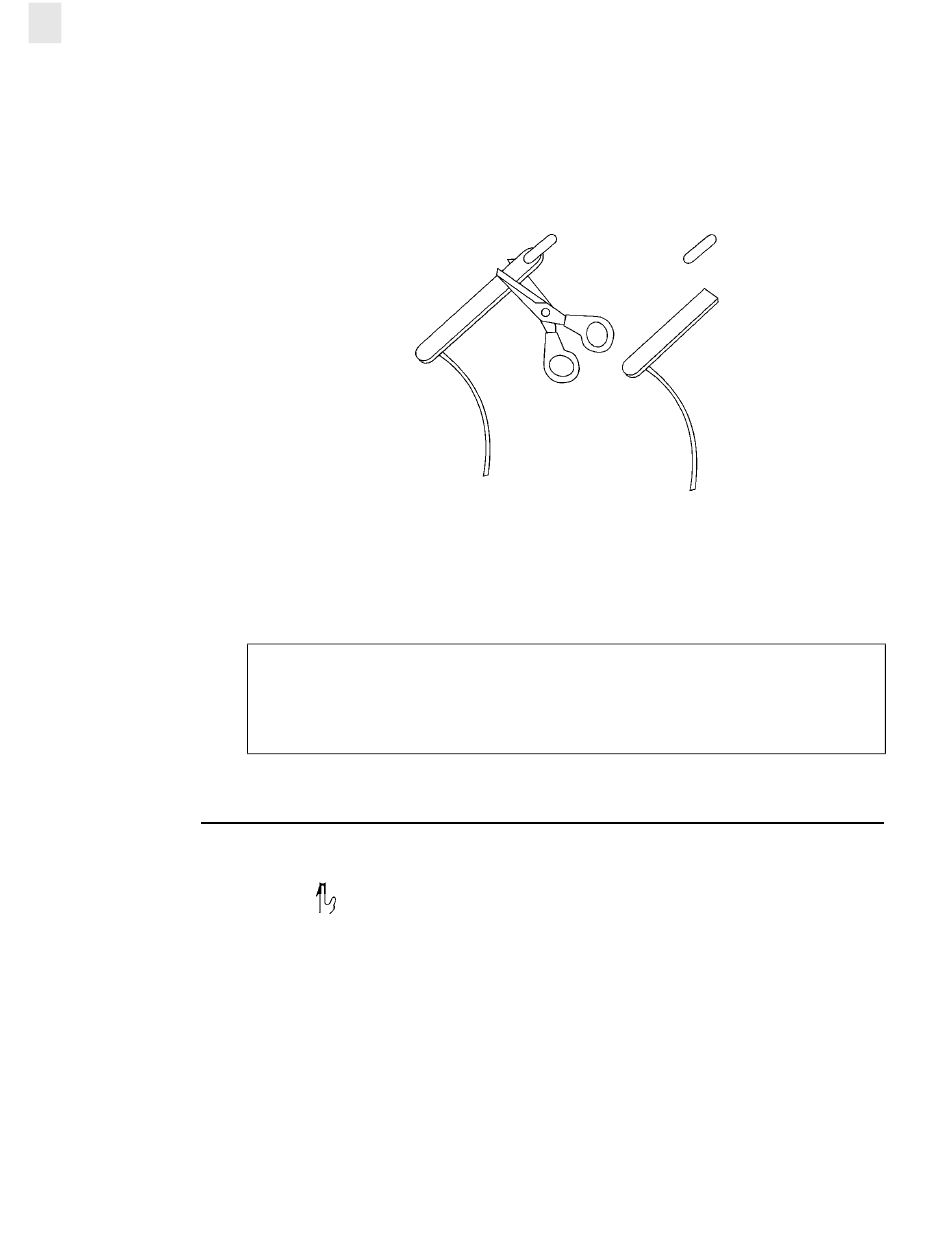

neonatal/pediatric version is removable to allow the foam wrap to be cut before
applying to the patient.
CUT EXCESS OFF
Ensure that the sensor heads are positioned directly opposite each other through the tissue. The
adhesive dots (Catalog No. 8700) which are included with each sensor can be applied to the
sensor before patient application for additional adhesion to the site.
6. For additional support, secure the cable along the limb with tape.
WARNING: Do not wrap the sensor around the limb so tightly that circulation is
restricted. Inspect the site often, at least every four hours, for adequate circulation.
When applying sensors take note of patient's physiological condition. For example,
burn patients may exhibit more sensitivity to heat and pressure and therefore additional
consideration such as more frequent site checks may be appropriate.
1. With the sensor connected to monitor but not applied to patient, position the
sensor heads so that they face each other (the red light shines at the detector).
Is the on the front panel flashing?
2. Tape the Y-Sensor to your index finger. Does the monitor show reasonable
SpO and pulse rate values?
2
3. A YES to BOTH #1 and #2 indicates that the sensor is OK. Apply the sensor to
the patient as instructed above.
This quick check also test the functionality of the extension cable.
Single Patient Use SpO
NEONATAL/PEDIATRIC
SENSOR
Sensor Quick Check
2
Sensor Quick Check
2
VELCRO TAB
