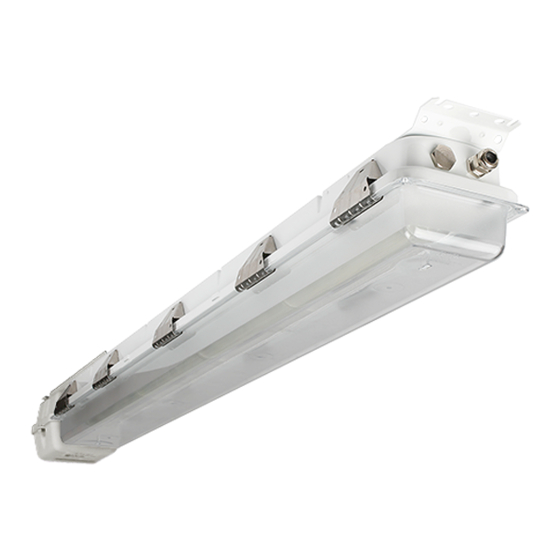

Glamox MIX LED
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MIX LED Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Glamox MIX LED Series

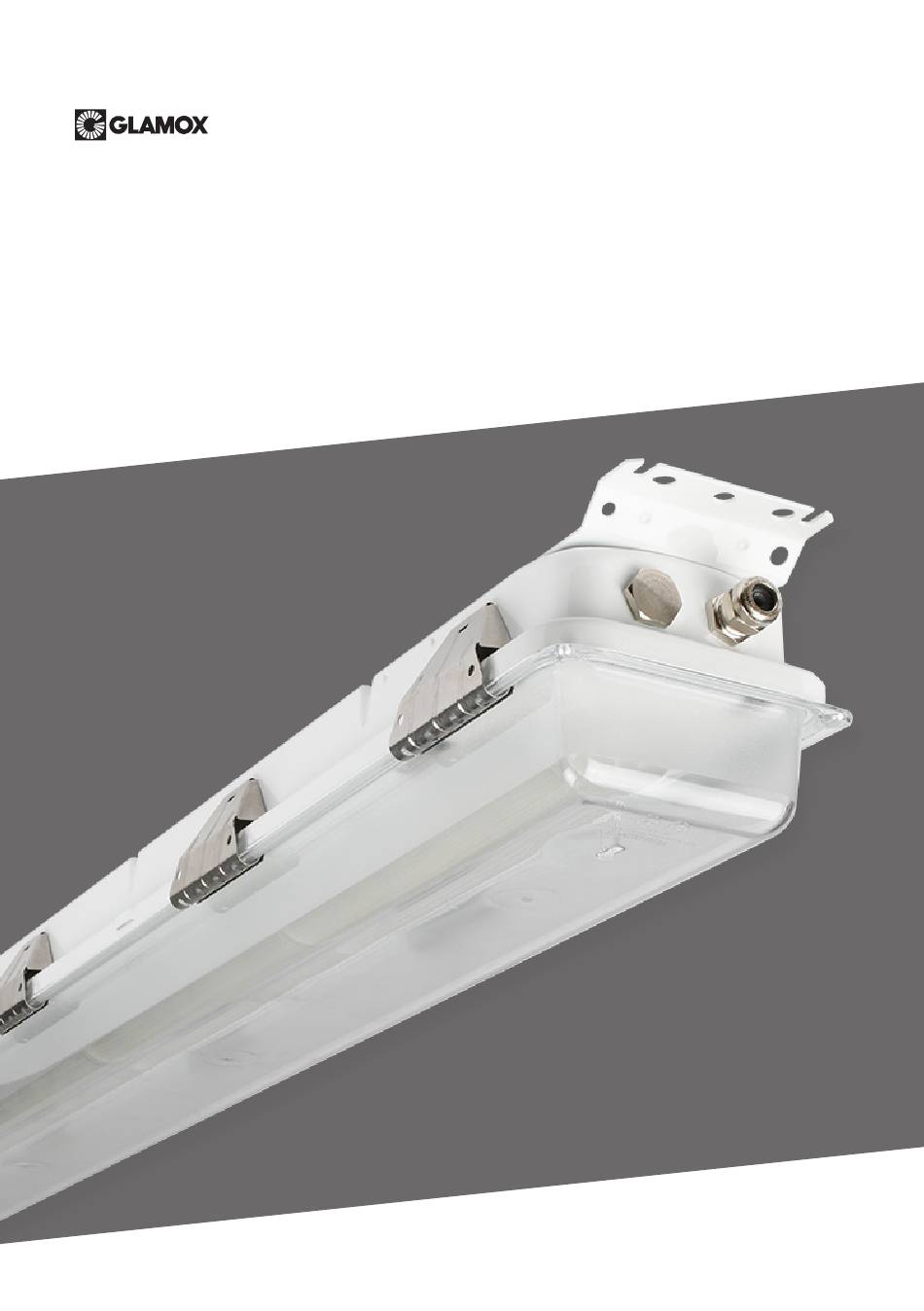

  • Page 1 Glamox MIX LED User manual...
  • Page 2 Svenska Eesti Anslut inte armaturen till tillfällig byggström. Ära kasuta ajutist toiteahelat. See võib Detta kan skada elektroniken. põhjustada vigastusi elektroonikale. English Deutsch Nederlands Do not connect to a temporary electricity Nicht an unsauberes Netz (Baustrom) Sluit niet aan op een tijdelijke supply.
  • Page 3 Svenska Eesti Ljuskällan i denna armatur får endast Selle valgusti valgusallikat võib bytas ut i Glamox fabriker, av Glamox asendada ainult tootja, tema lepinguline servicetekniker eller motsvarande hoolduspartner või sarnane kvalifitseeritud kvalificerad personal. Strömförande delar personal. Sisaldab pingestatud komponente på insidan- RISK FÖR ELSTÖTAR –...
  • Page 4 Non emergency: 220–240V AC 50/60Hz and DC Emergency: 110–240V AC 50/60 Hz Supplied current (mains mode): 0.1–0.26A Power factor: 0.90–0.95 Light modules: For more information, please see www.glamox.com Types C = Hood nuts M8 distance IP code MIX-600 LED IP 66/67...
  • Page 5 Ferrules can be used, but not recommanded. 10–11mm Alternativ terminal Glamox 112 20556 Torque value for screws: 1.8Nm Type and size of wires that can be used: Solid wire: From 1.0mm² to 6.0mm²...
  • Page 6 Installation and operation HF-E = Emergency luminaire HF = No emergency DALI version comes for no emergency and emergency. For HF-E unswitched power supply to L4-N is needed. Mains shall be from same sircuit breaker. • Wiring without switch for main light (Loop L-L4 for HF-E) HF-E HF-E Mains...
  • Page 7 Polyamid 5.0 Nm 7.5 Nm Torque 8-13mm 12-18 mm Cabel diameter Brass 7.5 Nm 10.0 Nm Torque 4-12mm 12-18mm Cabel diameter Cable glands There can be used different number of gland/blinds. Possible with 2 in each end, but only one in battery box end. M20 or M25 is polyamide or nickel plated brass is standard for cable diameter 4–12mm for M20 and 10–18mm for M25.
  • Page 8 MIX LED mounting With plastic folio at diffuser. Remove plastic folio before powering. 85 mm...
  • Page 9: Battery Change

    Cycling of batteries at least 2 times yearly is recommended. This will increase the lifetime of batteries. Use only original spare parts from Glamox. Battery pack Spareparts item no: PA100424001, 6.0V 4.0Ah...
  • Page 11 Emergency lighting time is under the specified time (1.5 or 3.0 hours for standard luminaire): - Change the battery Manufacturer: Glamox AS Birger Hatlebakks veg 15 NO-6405 Molde, Norway Service contact: Glamox AS Tel.: +47 71 24 60 00 Fax: +47 71 24 60 01 or nearest Glamox sales office...
  • Page 12 Please refer to our website Please visit our web site for contact information for information about www.glamox.com our 5-year warranty.

This manual is also suitable for:

Mix-600 ledMix-1200 ledMix-1500 led
