Summary of Contents for Digitus Biometrics dbBioLock

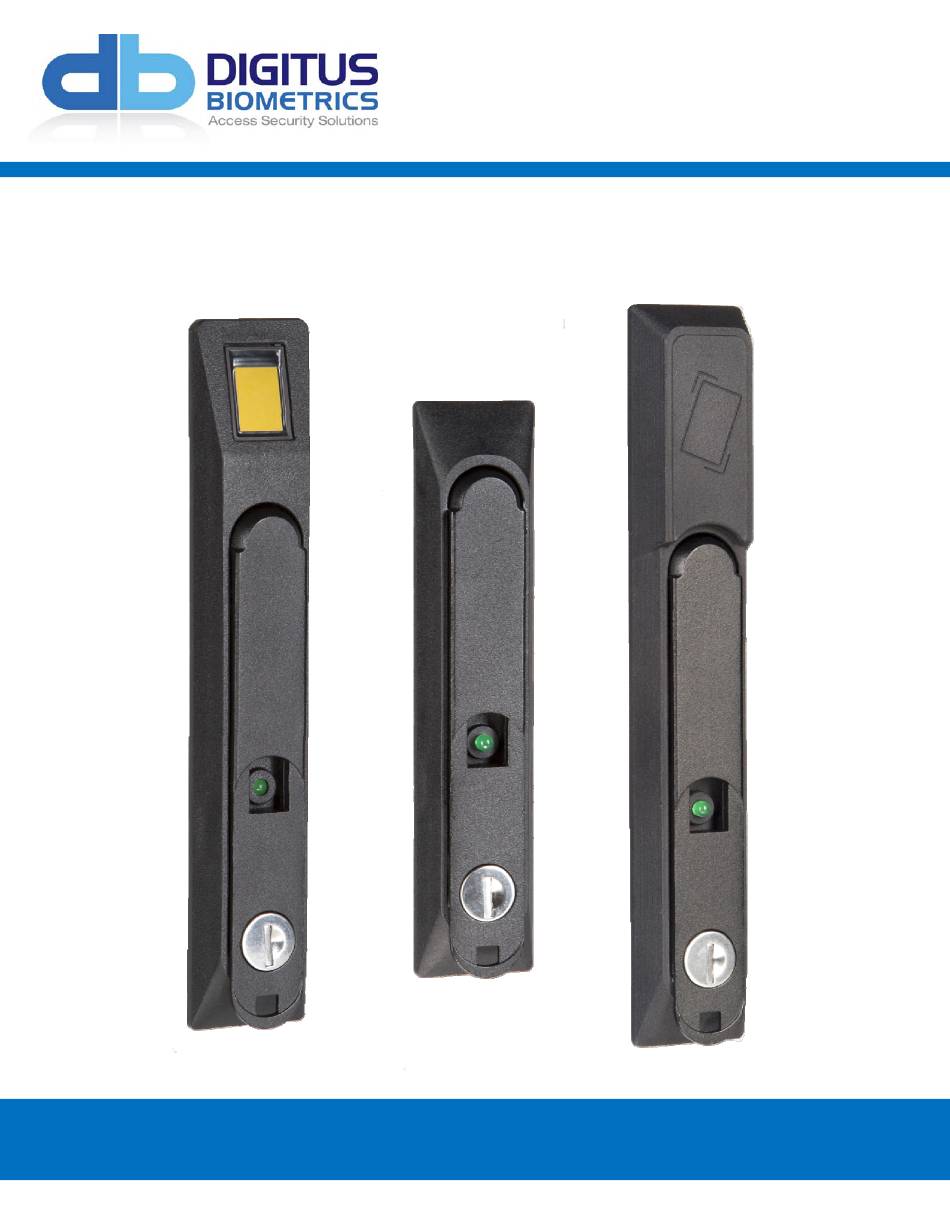

- Page 1 db BioLock / db ELock / db iCardLock Installation Manual...
-
Page 2: Table Of Contents
Route the Cable between the lock and the Remote Node / Zero-U Controller – Step 7 ........9 Connect the cable to the Remote Node / Zero-U Controller – Step 8 ............10 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 2 of 11... -
Page 3: Determining Which Lock Pawl To Use
1000-U33 1000-26 1000-U34 1000-12 1000-U35 1000-11 1000-U36 1000-51 1000-U37 1000-52 1000-U38 1000-25 1000-U39 1000-53 1000-U40 1000-54 1000-U41 1000-10 1000-U42 1000-55 1000-U43 1000-56 1000-U44 Table 1 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 3 of 11... -
Page 4: Overview
• Remove the protective cover from the double-sided high bond tape located along the edge of the Door Interface Box. Figure 3 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 4 of 11... -
Page 5: Mounting The Door Interface Box - Step 2
Ensure that the Interface Box is located close enough to the lock opening in the door, so that the finger-sensor on the ribbon cable can go through the door and connect into the lock, see Figure 5. Figure 4 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 5 of 11... -
Page 6: Mounting The Door Lock - Step 3
Note. When situating the lock through the hole in the cabinet door, the fit may be tight. Use gentle force to push the lock into place Figure 5 Figure 6 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 6 of 11... -
Page 7: Securing The Door Lock - Step 4
Pay particular attention to the rotation limiter. This is installed as shown depending on whether you have a right on left hand opening door. Pawl Rotation Limiter Figure 7 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 7 of 11... -
Page 8: Mount The Tie-Down Pads To The Door And Cabinet - Step 6
Ensure that the door surface is clean and free from any debris. (Using neat alcohol to clean the surface is highly recommended. Allow drying time before proceeding.) • Remove the protective cover from each tie-down pad and situate as shown in Figure 9. Figure 9 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 8 of 11... -
Page 9: Route The Cable Between The Lock And The Remote Node / Zero-U Controller - Step 7
• Route the supplied 12’ cable as show in Figure 10. Secure the cable to the tie-down pads using the supplied cable- ties. Figure 10 Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 9 of 11... -
Page 10: Connect The Cable To The Remote Node / Zero-U Controller - Step 8
It is recommended that for a cabinet with 2 doors, the front door is connected to Dev 1 and the back door is connected to Dev 2. Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 10 of 11... - Page 11 Digitus Biometrics, Inc. 2 East Bryan Street, Suite 502 Savannah, GA 31401 USA Phone: 912-231-8175 Fax: 912.629.9478 www.digitus-biometrics.com support@digitus-biometrics.com Specifications subject to change without notice. Model: db BioLock, db ELock, db iCardLock Digitus Biometrics, Inc. 2014 Page 11 of 11...
