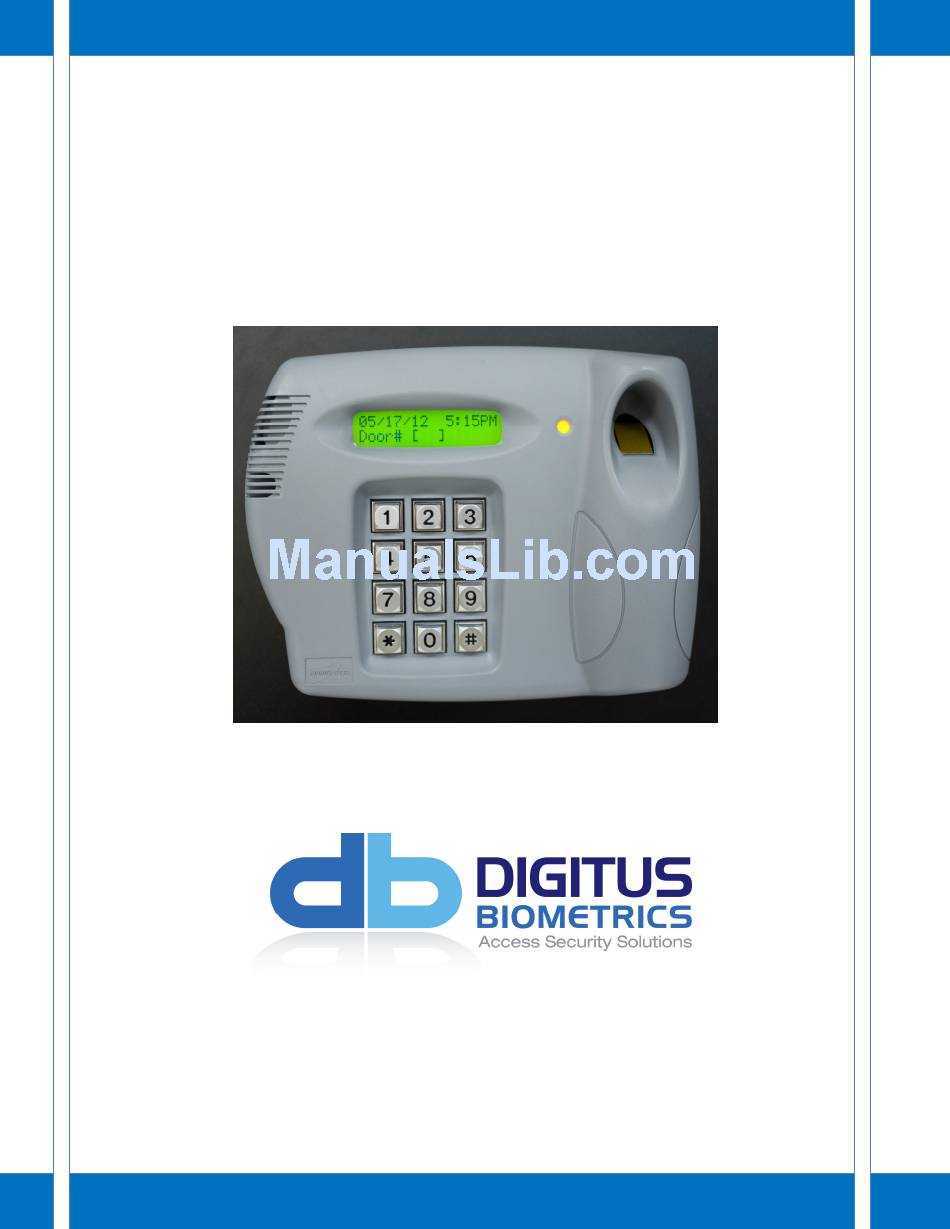

- Page 1 Enline Installation and User Manual...
- Page 2 Model: db Enline TABLE OF CONTENTS db ENLINE OVERVIEW ..................2 INSTALLATION THE db ENLINE UNIT..............3 SUGGESTED WIRING CONFIGURATION ..............6 USING THE db ENLINE UNIT ................7 P a g e | 1...
-
Page 3: Db Enline Overview
ENLINE OVERVIEW The db Enline unit is a device used with the db Bus architecture. The db Enline unit is used in the db ServerRack – End-of-row solution, as a user input device. The unit allows a user to specify which door they are attempting to access, and then allows them to authenticate their credentials (PIN/Fingerprint/RFID). -
Page 4: Installation The Db Enline Unit
Enline’s serial number is used to identify it within the Digitus DAS-SQL software. There is no limit to the number of db Enline units that can be installed on a db Bus, as long as: (db Enline Units + Remote Nodes <= 32) Typically one db Enline Unit would be installed at the end of each row of cabinets. - Page 5 • Drill the cabinet where you have marked the cable passageway, so that the cables can be passed directly into the rear of the db Enline unit. • Mount the back plate of the db Enline unit to the cabinet using the supplied mounting hardware.
- Page 6 • Route the cables as shown in Figure 2. Figure 2 • Insert the 4 mounting lugs on the front section of the db Enline unit into the 4 mounting holes on back section of the db Enline unit. • Secure the db Enline unit with the 4 supplied screws.
-
Page 7: Suggested Wiring Configuration
The diagram below shows a top down view of a row of server cabinets. The db Bus Controller is located in the far left cabinet, with a Remote Node, and all other cabinets contain just a Remote Node. The db Enline Unit is installed on the outside of the far right cabinet. -
Page 8: Using The Db Enline Unit
Row# [ # Key Requirement The db Enline can be configured to either require a # key to be pressed after each piece of data entered, or to automatically proceed to the next menu item, once the required number of digits has been entered. - Page 9 Following a successful access, the specified door will unlock. Time Restriction It’s also possible to restrict what times a user has access to each door. The db Enline unit will check that the user is attempting access within their permitted times. If access is attempted outside a user’s permitted times, the following message will be displayed.
- Page 10 Model: db Enline Digitus Biometrics, Inc. 2 East Bryan Street, Suite 502 Savannah, GA 31401 USA Phone: 912-231-8175 Fax: 912.629.9478 www.digitus-biometrics.com support@digitus-biometrics.com P a g e | 9...
