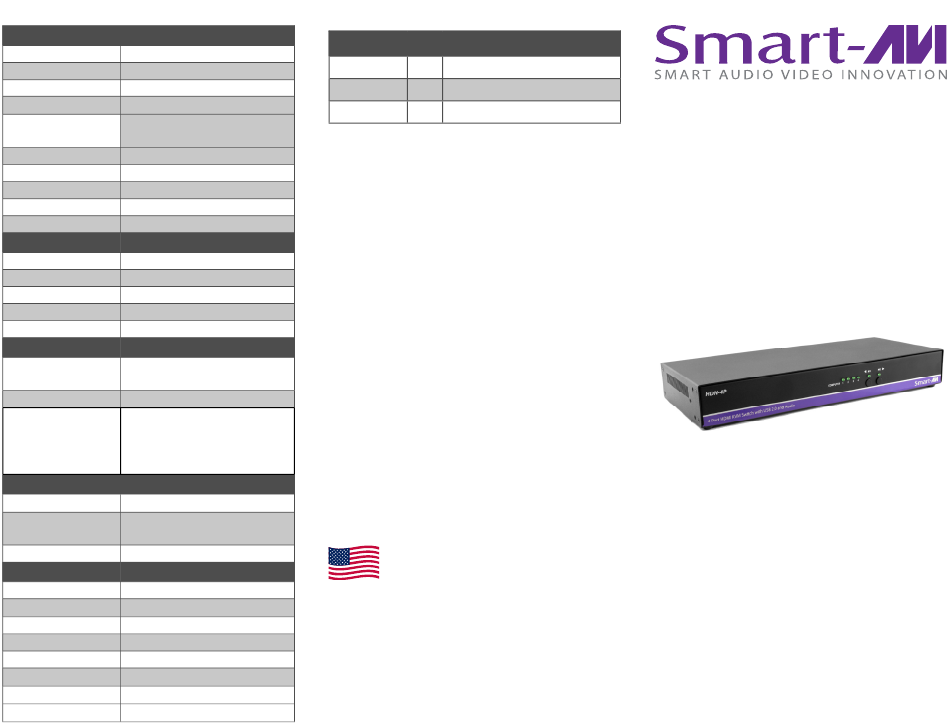

Smart-M HDN-4P Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
HDMI 1.4
Format
Maximum Pixel Clock 300 MHz
Input Interface (4) HDMI 19-pin (female)
Output Interface (1) HDMI 19-pin (female)
3840x2160@30Hz (4K), 1080P
Max Resolution
@ 60Hz and 1080P 3D @60Hz
5 volts p-p (TTL)
DDC
Input Equalization
Automatic
Input Cable Length
Up to 20 ft.
Output Cable Length Up to 20 ft.
Bandwidth Frequency 10.2 Gbps
AUDIO
Input Interface (4) 3.5mm stereo audio jack
Output Interface (1) 3.5mm stereo audio jack
Frequency Response 20Hz ~ 20KHz
Common Mode Rejection @ 60dB
Nominal Level 0.0 to 1.0 V
USB
USB 2.0, 1.1, and 1.0 with inter-
Signal Type
nal hub
(4) USB Type B (female)
Input Interface
(2) USB Type A (female) for key-
Output Interface
board and mouse only
(2) USB Type A (female) for USB
2.0
CONTROL
Front Panel Buttons
DB9 Female, 9600 bps, N, 8 1,
RS-232
No flow control
Via Keyboard
Hotkeys
OTHER
Keyboard and mouse
Emulation
Power Adapter 5VDC4A
2" H x 5.75" D x 12.75" W
Dimensions
3.5 lbs.
Weight
UL, CE, ROHS Compliant
Approvals
Operating Temp. 23 to 95 °F (-5 to 35 °C)
-4 to 185 °F (-20 to 85 °C)
Storage Temp.
5 to 95%RH (No Condensation)
Humidity
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
HDN-4PS 1 4-Port HDMI KVM Switch
PS5VDC4A 1 Power Adapter
1 Quick Start Guide
Brackets for mounting this device in a standard 19"
rack can be ordered from SmartAVI.
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20161212
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com
HDN‐4P
4-Port HDMI KVM Switch with
4K Resolution (3820x2160 @30Hz),
USB 2.0 and Audio
Access and Control
Four Computers Using Only One
USB Keyboard, USB Mouse and
HDMI Monitor with Full Emulation
Quick Start Guide
