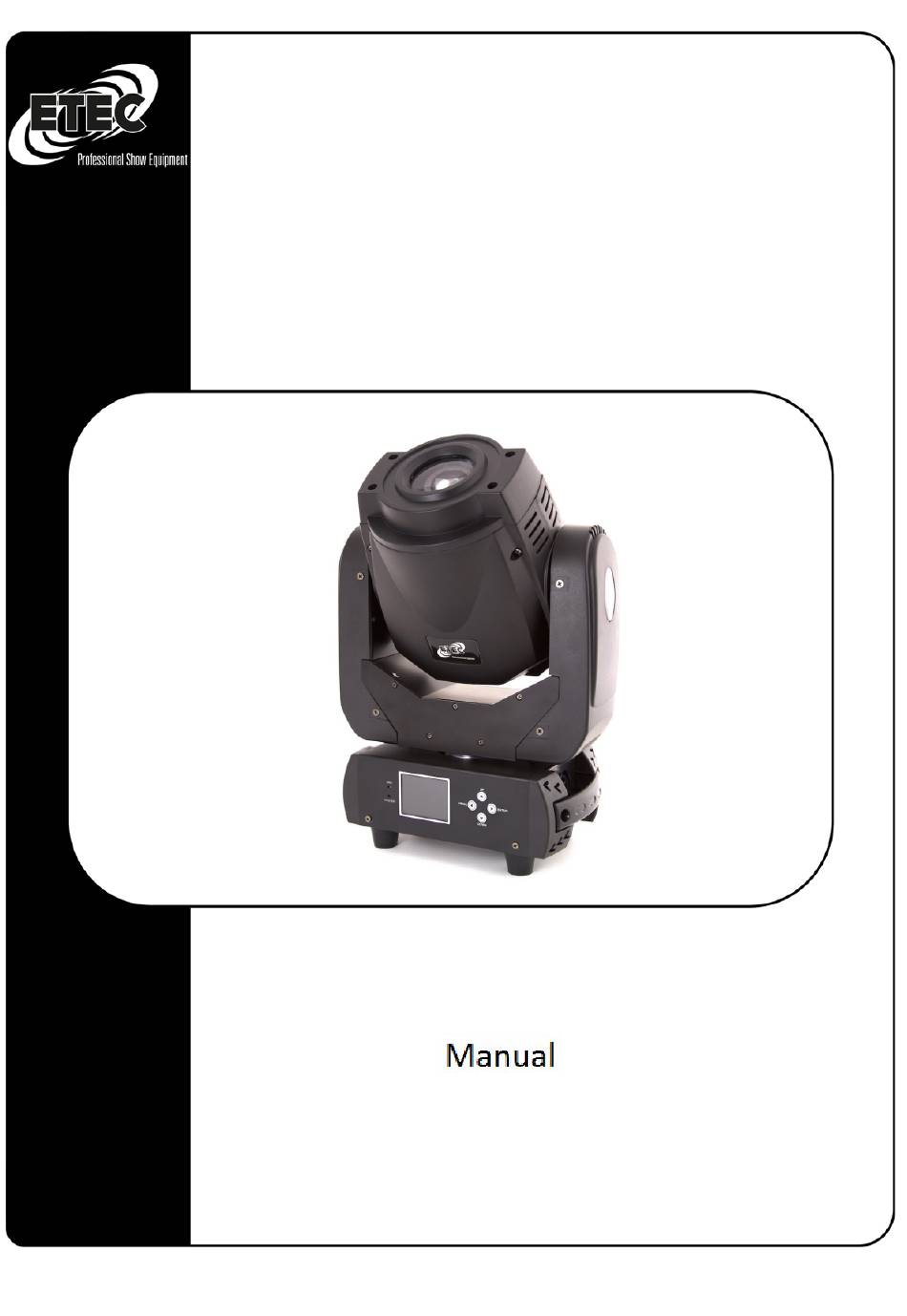

- Page 1 LED Moving Head E60 Spot...
- Page 2 Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit.
-
Page 3: Intended Use
Warnings ATTENTION! Protect the device from rain and moisture! Disconnect the power cord before opening the housing! PLEASE READ THESE INSTRUCTIONS FOR YOUR SAFETY CAREFULLY, BEFORE OPERATING THE UNIT FOR THE FIRST TIME! Safety instructions: All persons who must install, operate, and maintain this equipment: Be qualified and •... -
Page 4: Power Connections
Installation Observe the European and international guidelines for installation, mounting on trusses and all other safety measures. Do not attempt to install the unit yourself! Always have the installation carried out by qualified personnel! The mounting stand or the installation wall must be capable of carrying 10 times the weight of the appliance without deforming. -
Page 5: Maintenance
Maintenance The device is almost maintenance-free. Nevertheless, the device should be cleaned regularly. If the unit is not cleaned regularly, the light output of the unit will be considerably reduced over time. Disconnect the unit from the mains and wipe it with a damp cloth. Never immerse the unit in any liquid. - Page 6 4. Insert the new fuse into the holder. Close the cover. Use only a fuse of the same type and the same specifications. Observe the label with the technical data. Product description: The Moving Head E60 is a head-mounted headlamp and is equipped with an efficient ultra-bright white 60 watt LED.
-
Page 7: Product Overview
Product Overview: 1. LED Diode 2. Display 3. Button: Mode, Up, Down, Enter 4. PowerCON IN/OUT 5. ON / OFF switch 6. Security 7. DMX linking IN/OUT Funktionen und Einstellungen: LCD Display MENU: Function mode selection, such as DMX, Master / Slave, Auto, Sound Mode and Brightness settings DOWN/UP: Previous or Next function Enter: Confirm and save the selection... - Page 8 Menu overview: DMX address DMX address = 0001 DMX 15 ch DMX 6 ch Auto Program 1 Auto Program 2 Auto Program 3 Auto Program 4 operation mode Auto Auto Program 5 Auto Program 6 Auto Program 7 Auto Program 8 Sound control Slave Englisch...
- Page 9 Setting up a DMX connection: DMX is a standardized transmission protocol that allows all DMX-compliant models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing.
- Page 10 Channel DMX Value Functions 1 Pan 000-255 Pan Move 2 Tilt 000-255 Tilt Move 3 Dimmer 000-255 Dimmer 0-100% 000-004 Strobe closed 4 Strobe 005-250 Strobe from slow to fast 251-255 Strobe open 000-007 No function 008-047 Color & Gobo macro 1 048-087 Color &...
- Page 11 16 DMX channels channel DMX Value Features 1 Pan 000-255 Pan movement 2 Pan fine 000-255 Fine tuning of pan movement 3 Tilt 000-255 Tilt movement 4 Tilt fine 000-255 Fine tuning of tilt movement 5 P / T speed 000-255 Pan / Tilt speed from fast to slow 6 Dimmer...
- Page 12 Technical and optical changes within the scope of product improvement are reserved - even without prior notice. No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Space for your notes: _________________________________________________________________________________...
- Page 13 Importeur Hansaring 138-142 48268 Greven Germany Fon: +49 (0) 25 71 - 80 5 40 42 www.etec-professional.de Fax: +49 (0) 25 71 - 80 5 40 41 Page | 13...
