Summary of Contents for Etec ML108

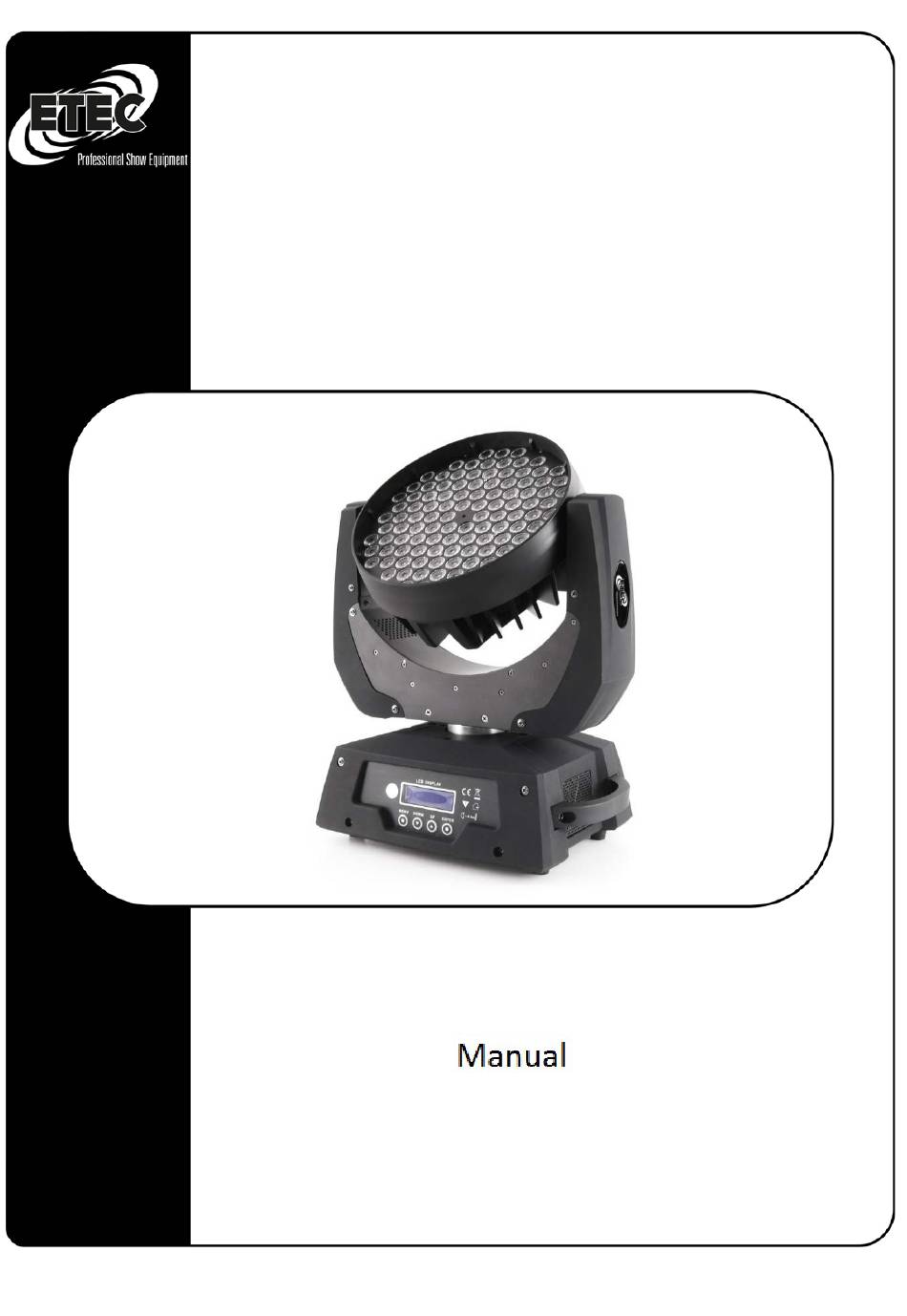

- Page 1 LED Moving Head ML108...
- Page 2 Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit.
-
Page 3: Important Safety Information
ATTENTION! Be careful when handling this unit. For dangerous mains voltages, you could get a life threatening electric shock when touching the cables! Before using the appliance for the first time, ensure that the product has not been damaged by transport. -
Page 4: Intended Use
• Disconnect the appliance immediately from the power supply if it falls or becomes severely damaged. • Have the unit checked for safety by a qualified technician before using it again. • Do not turn off the unit immediately after exposure to strong temperature fluctuations (eg during transport). -
Page 5: Installation
• The relative humidity must not exceed 50% at an ambient temperature of 45 ° C. • If the appliance is not used as described in this manual, it could be damaged and the warranty void. • Any improper use will lead to risks such as: Short circuits, burns, •... -
Page 6: Maintenance
Disposal Do not throw the appliance into normal household waste at the end of its useful life. This product is subject to European Directive 2002/96 / EC. • Dispose of the product via an approved disposal company or through your municipal waste disposal facility. -
Page 7: Replace Fuse
Product description The ETEC ML108 is a giant WashlightMoving Head with a stunning 108 x 3 Watt LED RGBW Power! It has been developed for large stages and events, which require a very strong light output. The 3 Watt LED's, which are divided in the colors red, green, blue and white, offer a very nice color mixing and extremely bright projections. - Page 8 Flash Rate: (min) 1 Hz Width: [cm] 33 Flash Rate: (max) 25 Hz Depth: [cm] 23 PAN range: 540 ° Weight: [kg] 9.65 TILT area: 270° Product Overview 1. LED Diode 2. Display 3. Button: Mode, Up, Down, Enter 4. DMX linking IN/OUT 5.
- Page 9 Enter: Confirm and save the selection Menu overview: 1. DMX Address 1. Set the DMX address DMX Address: 000 - 512 2. DMX Modus Auswahl DMX Mode: 9 o. 14 Channels 2. Automatic Program Interne Program Alone Master Sound control Alone Master Slave settings...
- Page 10 DMX is a standardized transmission protocol that allows all DMX-compliant models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing. For example, DMX address 1 has been assigned to a device and it can be positioned at any point of the DMX connection, at the beginning, at the end or anywhere in the middle.
- Page 11 DMX channel allocation: 0-255 X-axis (PAN) Y-axis (TILT) 0-255 XY speed 0-255 Master dimmer 0-255 0-255 green 0-255 blue 0-255 White 0-255 No strobe 10-250 Strobe van slow -> fast 251-255 Strobe 100% 0-255 0-10 No Function 91-100 G+W 11-20 R 101-110 R+W 21-30 G 111-120 R+G+B...
- Page 12 Technical and optical changes within the scope of product improvement are reserved - even without prior notice. No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Space for your notes: _________________________________________________________________________________...
