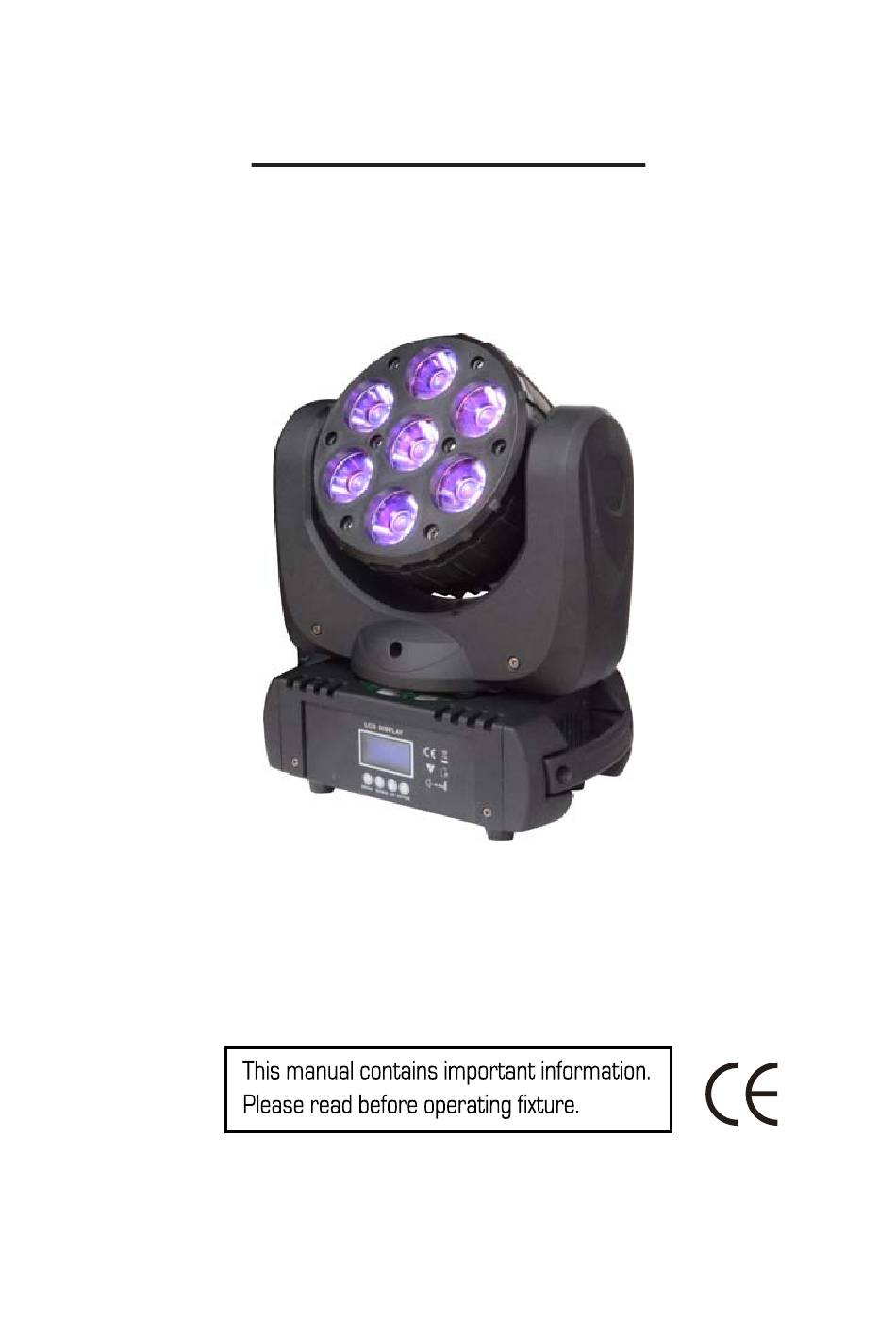

- Page 1 Moving Beam 7Q LED Beam Moving Head User Manual...
-
Page 2: Safety Instructions
To optimize the performance of this product, please read the user manual carefully before use. Unpacking The following items are included in the box: ■ 1 x Moving Beam 7Q ■ 1 x Power Cord ■ 1 x Mounting bracket ■ 1 x User Manual Carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 3: Product Overview
▪ Linear dimmer 0 - 100% ▪ Various strobe 1-25 fps ▪ Pan/Tilt: 540° / 220° ▪ 4-button LCD display 1.4 Product overview Control Panel Power In/Out ON/OFF Fuse DMX In/Out 2. SETUP 2.1 Mounting The Moving Head is fully operational in any mounting position, hanging upside-down, side mounted, or set on a flat llevel surface, etc. - Page 4 3. OPERATION INSTRUCTIONS 3.1 Menu Map DMX Address DMX Address = 001 = Alone Built-in program = Master Auto Play = Alone Sound activation = Master Slave Reverse Pan = ON / OFF Reverse Tilt = ON / OFF Sound sensitivity = 0 - 100% Reset Default = ON / OFF...
-
Page 5: Dmx Channels
3.2 DMX channels 14 DMX Channels Channel DMX Value & Functions 000-255 Pan movement Pan fine 000-255 Fine control of Pan movement Tilt 000-255 Tilt movement Tilt fine 000-255 Fine control of Tilt movement P/T speed 000-255 Pan/Tilt speed from high to low Dimmer 000-255 Dimmer 0-100%... -
Page 6: General Maintenance
4. General Maintenance 4.1 Fuse Replacement a. Unscrew the fuse holder and remove the damaged fuse. b. Replace with exact same type fuse and screw the fuse holder back in its place. 5. Specifications Source: 7 x 15W RGBW 4in1 LEDs Beam angle: 8°...
