Summary of Contents for AirClean systems AC-DS-03

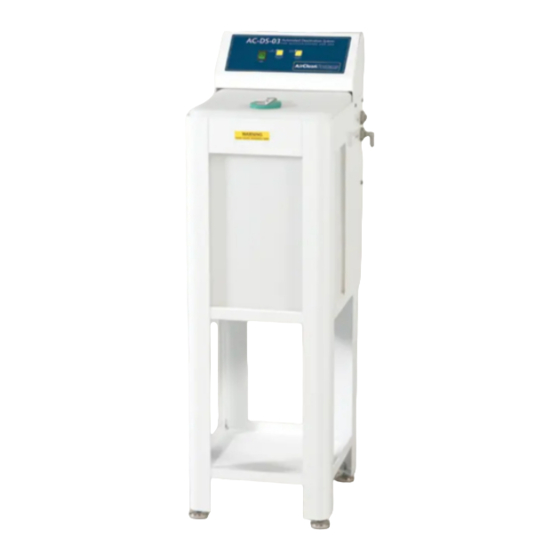

- Page 2 AC-DS-03 Automated Deactivation System Instruction Manual...
- Page 3 AC-DS-03 Automated Deactivation System Manual Ver. A03 AC-DS-03 Automated Deactivation System Instruction Manual Ver. A03 Printed in the United States of America No part of this publication may be reproduced without the express written permission of ® AirClean Systems. ®...
-
Page 4: Table Of Contents
Securing your AC-DS-03 ......................3 Plumbing Installation ........................ 4 Electrical Requirements ......................4 Filter Installation and Maintenance ..................6 Use of AC-DS-03 Automated Deactivation System ..............6 Cleaning ............................. 8 Monthly Cleaning ........................8 Quick Trouble Shoot ......................... 8 Main Wiring Diagram ......................... 8 Limited Warranty ........................ -
Page 5: Principle Of Operation
The unit can be activated to pump the tank at any time with a manual purge feature. The AC-DS-03 can be used in conjunction with automatic processing devices for endoscopic ultrasound probes. -
Page 6: Warning Symbols
MAY ALSO BE USED TO ALERT AGAINST UNSAFE PRACTICES OR POTENTIAL EQUIPMENT DAMAGE. Protective Grounding Setting up your AC-DS-03 Included with your new AC-DS-03 system is a packet of the following parts: Power cord. Two E-Z mount wall anchors and screws. -
Page 7: Securing Your Ac-Ds-03
7. For masonry walls use suitable lead or plastic anchors and bolts. These anchors are not supplied. 8. The AC-DS-03 unit has 4 adjustable feet which can be screwed up or down to level the unit. Figure 1: AC-DS-03 brackets against wall. -
Page 8: Plumbing Installation
(supplied) on both ends of the tubing. The drain DISCHARGE outlet is on the left side of the unit, tubing can be routed under the unit if your drain is on the right side of the AC-DS-03. 3. Install the 3/8” drain tubing between the AC-DS-03 quick disconnect marked “DISCHARGE”... - Page 9 AC-DS-03 Automated Deactivation System Manual Ver. A03 Overflow Inlet Discharge Figure 3 & 3.1: Typical installations of the AC-DS-03. PLEASE CALL AIRCLEAN® SYSTEMS AT 1-800-849-0472 WITH ANY INSTALLATION QUESTIONS YOU MAY HAVE...
-
Page 10: Filter Installation And Maintenance
7. Close cover and push “ADD NEUTRALIZER” reset button to turn off the flashing LED. 8. Unit is now ready to accept high level disinfectant. 9. The AC-DS-03 unit can hold a maximum of 6.5 gallons of liquid before it purges. - Page 11 AC-DS-03 Automated Deactivation System Manual Ver. A03 10. Sensors inside the AC-DS-03 will automatically empty the tank when full. The red LED on the Discharge button will light when pump is operating. 11. Once tank is empty, the “ADD NEUTRALIZER” LED will flash and operator will repeat cycle starting at step 5 above.
-
Page 12: Cleaning
AC-DS-03 Automated Deactivation System Manual Ver. A03 Cleaning Monthly Cleaning In order to make sure the float sensors function properly, flush the AC-DS-03 monthly with two gallons of fresh water. Pour the water through the top opening and push the optional discharge button to flush. -
Page 13: Limited Warranty
Systems. ® AirClean Systems warrants the AC-DS-03 Automated Deactivation System to be free of defects in materials and workmanship under normal use, for a period of one year from the date of shipment. ® If the system is not working correctly or is defective, contact AirClean Systems, and we will repair or replace the unit at our option during the warranty period.
