Summary of Contents for Haiyang HGP-660F
-
Page 1: Table Of Contents
TABLE OF CONTENTS HGP-660F Introduction ……………………...………………………… Fishfinder Specification ……………………………………… 4 Interconnecting diagram ……………………………………… 5 SPEC of the connectors ……………………………………… 6 The Keyboard ………………………………………………… 7 Page Select Page Select ………………………………………………… 8 1. Chartplotter/Fishfinder mode ……………………………… 9 2. Full Fishfinder mode ……………………………………… 11... - Page 2 7. Through-hull Transducers ……………………………………… 23 8. Dead-rise………………………………………………………… 23 9. Through-hull Transducer Maintenance……………………… 26 - 2 -...
-
Page 3: Hgp-660F

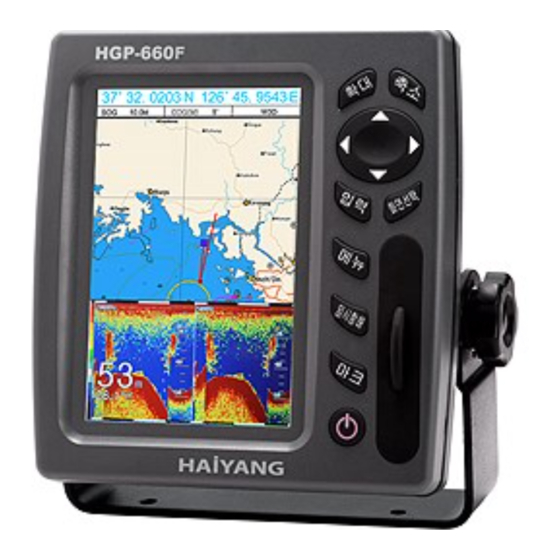

HGP-660F Introduction Equipment Supplied GPS ANT. AQUA Display unit Fixable Band(option) (stand is option) Protector Mounting Bracket Knobs Power cable Manual TD(*selectable) *The type of TDs is optional, Thru-Hull, In-Hull and Transom. And the output is optional, 600W, 1KW and 1.2KW. -
Page 4: Fishfinder Specification
HGP-660F FISHFINDER SPECIFICATION ◆ Display Mode Normal (single/dual-frequency), Bottom-lock, Bottom-zoom, A-scope ◆ Frequency 50 and 200 KHz (single or dual) ◆ Output Power 600W (HFF-600) / 1.2KW (HFF-1200) ◆ Range speed 600W : 2.5m ~ 600m(HFF-600) 1.2KW : 2.5m ~ 1,200m (HFF-1200) ◆... -
Page 5: Interconnecting Diagram
HGP-660F Interconnecting diagram(Metal connector) GPS ANTENA Power PC LINK (10.8V~39.6V) Transducer TX/RX (NMEA 0183) - 5 -... -
Page 6: Spec Of The Connectors
HGP-660F SPEC of the connectors (Metal connector) - 6 -... -
Page 7: The Keyboard
Keyboard Cursor pad Select display mode & cancel Power & Brightness CHANGES RANGE DEPTH [ZOOM-IN/OUT] FISHFINDER. [MENU] Menu opens menu to select options Selects function to display on HY Display, Plotter Display, LAT/LOT [DISP] Display, Highway Display, Steering Display, Nav data Display. (* When the menu or the cursor appears, it’s used fro ESC. -
Page 8: Page Select
Page Select Pressing the key, [DISP], you will see the following pages. Move the red box with the arrow key and press the key, "ENTER". The chosen page will be active. Please, kindly note that the FF page will be available when the display is connected with a black box FF. -
Page 9: Chartplotter/Fishfinder Mode
Page Select 1. Chartplotter/Fishfinder mode This is dual images, chartplotter and Fishfinder. i) This image is for chartplotter. (The keypad is operating for chartplotter functions) VESSEL LAT/LOT Speed of Ground GPS Receiver status Course of Ground Chartplotter Display Frequency Depth Bar Fishfinder Display Depth Temperature... - Page 10 Page Select 1. Chartplotter/Fishfinder mode This is dual images, chartplotter and Fishfinder. ii) This is for Fishfinder(The keypad is operating for Fishfinder functions) ※If you want to convert the keypad for Fishfinder, press the [DISP] for 2 sec. If you return to chartplotter, press the [DISP] again.
-
Page 11: Full Fishfinder Mode
Page Select 2. Full Fishfinder mode This is the full image of Fishfinder. Please, kindly note the chartplotter information is unavailable on this image. Frequency Depth Bar Depth Temperature Fishfinder Guide - 11 -... -
Page 12: Operations
Operation Fishfinder It is available to control and confirm information in fishfinder. ▶ [MENU]->[0.Fishfinder] Fishfinder 1/2 1. Manual/Auto Range Auto range selects the best condition for measuring the depth automatically in the environment of the sea. On manual, the user can set the range manually. 2. -
Page 13: Fishfinder 2/2
Operation Fishfinder It is available to control and confirm information in Fishfinder. ▶ [MENU]->[0.Fishfinder] Fishfinder 1/2 9. Interference Rejection When there are other boats around you on sailing, your fishfinder could be disturbed to work. The step of the function is from off to level 2. The bigger number, the more rejection. 0. - Page 14 Operation Fishfinder It is available to control and confirm information in fishfinder. ▶ [MENU]->[0.Fishfinder]->[MENU] Fishfinder 2/2 1. Color Level This function adjusts the colors. Make it upper level, the color becomes darker. 2. Color Rejection There are 16 color levels for fishfinder. The color bar is on the left of the Fishfinder. If the level is higher, the color of the bar is deleted one by one.
- Page 15 Operation Fishfinder It is available to control and confirm information in Fishfinder. ▶ [MENU]->[0.Fishfinder]->[MENU] Fishfinder 2/2 8. Depth Display The menu selects Depth displayed ON/OFF. 9. Temp Display The menu selects Temperature displayed ON/OFF. - 15 -...
-
Page 16: Fishfinder Modes
Operation Fishfinder Modes Fishfinder modes are selectable for single frequency or dual and some functions, for example bottom zoom or lock. 1.Normal (200KHz or 50KHz) Bottom Zoom magnifies the Fishfinder display from the sea bottom toward the surface for a short distance. - Page 17 Operation Fishfinder Modes Fishfinder modes are selectable for single frequency or dual and some functions, for example bottom zoom or lock. 3. Bottom Lock (200KHz or 50KHz) Bottom Lock divides the Fishfinder main screen image for the selected Fishfinder into two sections. The left hand section displays a Normal Mode image.
-
Page 18: Installation
Installation Display unit brings expandable display technology to your bridge or navigation station. A careful installation will assure maximum benefit from Display unit integrated features. Display Unit Location Select a location for your Display unit that provides easy viewing from all likely operator’s positions. The display unit is designed to be mounted on either a console or from an overhead surface. -
Page 19: Power Connection
Installation Drill a 1/4 in. diameter hole at each marked location. Mount the Display unit bracket using bolts through the mounting surface. Place large flat washers on the opposite side of the mounting surface from the bracket and then install lock washers and nuts. Tighten securely. Install the display unit into the mounting bracket. -
Page 20: Transducer Installation
Therefore, installation should be attempted only by qualified individuals. If you have any doubt about your ability to complete the process successfully, we recommend you obtain the services of a HAIYANG dealer or marine service center with knowledge and experience in transducer installation . - Page 21 amount of disturbed water passing under the transom. To determine the best mounting location, operate the boat at several different speeds and observe the water as it passes under the transom. - 21 -...
-
Page 22: Transom Mounting
For boats with poor water flow under the transom or on in-boards, consider selecting a through-hull transducer. HAIYANG offers many styles of transducers. Determine the transducer mounting place by referring to the steps mentioned above. For best result, the transducer face should be level. - Page 23 Through-hull transducers are recommended for in-boards and other vessels with disturbed water flow under the transom. HAIYANG offers several models of bronze through-hull transducers. To enjoy the full capability of your Sonar, select a dual frequency model with temperature sensor. Sturdy bronze construction assures a secure installation and provides a strong base for fairing blocks, if needed, to compensate for hull shape.
- Page 24 gaps between the stem threads and holes drilled in the hull should be completely filled with waterproof marine - 24 -...
- Page 25 Installation sealant. Tighten the stem nuts securely but do not over tighten. Best Location Water Line Drifting Water Line Cruising Stem Fixing Nut Hull Marine Sealant - 25 -...
- Page 26 Installation Through-hull Transducer Maintenance If your boat is kept in the water, performance of your AQUA Sonar will be adversely affected by accumulations of sea growth on the face of the transducer. To prevent sea growth effects, the face of the transducer may be coated with antifouling paint specially formulated for transducers.
- Page 27 - 27 -...
