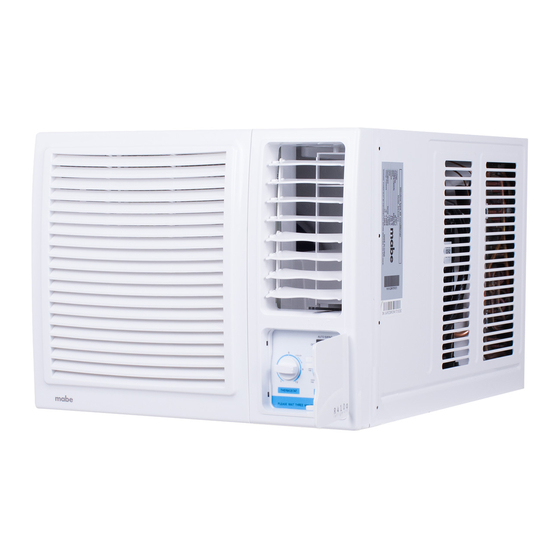

- Page 1 MEV07VV MEV09VV MEV12VV MEV18VV PM01...
-
Page 3: Table Of Contents
Before using your air conditioner, please read this manual carefully and keep it for future reference. Prior to installation, this air-conditioning unit must be submitted for approval by the utility service which provides electricity. contents Important safety information ............... 4 Parts of the unit .................. -
Page 4: Important Safety Information
important safety information To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The serious- ness is classified by the following indications. WARNING. - Page 5 • Do not use the power cord near flammable gas or combus- tibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or fire. • Ventilate room before operating air conditioner if there is a gas leakage from another appliance. It may cause explosion, fire and burns.
- Page 6 • Do not drink water drained from air conditioner. It contains contaminants and could make you sick. • Use caution when unpacking and installing. Sharp edges could cause injury. • If water enters the unit, turn the unit off at the power outlet and switch off the circuit breaker.
- Page 7 • To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. • Do not run the power cord under carpeting. Do not cover cord with rugs, runners, or similar coverings. Do not route cord un- der furniture or appliances.
- Page 8 operating temperature Outdoor 18-43°C/64-109°F (18-52°C/64- temperature 125°F for special tropical models. Cooling operation Indoor 17-32°C/62-90°F temperature Note: Performance may be reduced outside of these operating tem- peratures. power point requirement • Power cord conductors are distinguished according to color as fol- lows (see Fig.
-
Page 9: Parts Of The Unit
CAUTION: Before installing, remove all packaging from in- side the carton, along with any inserts placed into the side louvers. Remove inserts placed into the side louvers Inserts placed into the side louvers parts of the unit Note: The front panel and cabinet may be slightly different accord- ing to the models, but the functions are the same. - Page 10 accessories Seal (optional) Drain joint (Used on Drain tray (optional) (optional) drain joint) 1 piece 1 piece 1 piece 1 piece Wood screw Rubber Screw (optional) plug 2 pcs (For >18000 BTU/h models only: Used to fasten 1 or 2 pieces the front panel).
-
Page 11: Operation Instructions
operation instructions operation panel (cooling only models) The control panel of the unit you purchased will look like one of the following: AUTO SWING THERMOSTAT SELECTOR THERMOSTAT SELECTOR THERMOSTAT SELECTOR SELECTOR THERMOSTAT POWER indicator (optional) This indicator light remains on when the unit is on and goes off when the SELECTOR is on OFF position. - Page 12 thermostat The thermostat is used to set the desired room temperature when the unit is being operated in the COOL MODE. To set the desired room temperature, rotate the thermostat switch to the desired setting. After the set temperature is achieved, the thermostat will automatically start and stop the compressor in order to maintain the desired set temperature.
- Page 13 The controls featured in this manual are representative of many available models. Your model may offer slightly different features. The desired cool/Heat setting is selected by rotating the knob to the right to the appropriate location. • HIGH COOL has maximum cooling effect and airflow. •...
- Page 14 adjust air flow direction Horizontal airflow adjustment For the units with AUTO SWING feature (automatically) (on some models): When the AUTO SWING switch is turned to ON position, the vertical louvers automatically oscillate right and left sweeping the cold air alternately to obtain comfortable cooling.
- Page 15 vertical air flow adjustment (manually) Airflow in vertical direction can be changed by adjust- ing horizontal louver manually when the unit is run- ning. Note: Adjusting angle of horizontal louver depends on model. To avoid generating condensing water on the surface of horizontal louver, horizontal louver should not be at the maximum upwards or downwards angle position for a long time in cooling or drying mode.
- Page 16 cleaning the cabinet • Be sure to unplug the air conditioner to prevent shock or fire haz- ard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent.
- Page 17 2. Back drainage. Connect drain hose to the back drainage hole. It will slightly affect cooling performance, but will reduce the noise caused by spraying the condensed water. 3. Non-drainage. Block the drain hole(s) by rubber plug(s). The condensed water will be sprayed to condenser, and will im- prove the cooling performance.
-
Page 18: Installation Instructions
Note: If you choose non-drainage when cooling, both the bottom and the back drain holes of the unit should be inserted with rubber plugs. When you choose non-drainage the air conditioner will be perfect cooling efficiency, but big noise may be caused by spraying the condensed water. - Page 19 CAUTION: All side louvers of the cabinet must remain ex- posed to the outside of the structure. installation of housing Step 1. Remove the air conditioner from it's packaging, remove fix- ing screws and slide the air conditioner out of its housing (refer to installation steps).
- Page 20 installation of the unit into the housing 1. Slide the unit into the housing until it is firmly against the rear of the housing. Care is required to ensure the foam sealing strips on the housing remain in position. 2. Connect the air conditioner to the power and position excess cord length beneath the air conditioner base.
- Page 21 installation sequence Step 1. Remove the front panel and the air filter 1. Hold the slot under the front panel, then uplift it outwards, and remove the front panel (See Fig. 1). 2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside to upside (See Fig.
- Page 22 • Remove one screw on the chassis fixing bracket, then remove the chassis fixing bracket as shown in Fig. 3C. • Remove the four screws located on both sides and the back of the cabinet as shown in Fig. 3D. 2.
-
Page 23: Troubleshooting Tips
troubleshooting tips Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the re- sult of defective workmanship or materials in this appliance. Problem Solution Air conditioner does •... - Page 24 Problem Solution Air conditioner cool- • Dirty air filter-air restricted. Clean air fil- ing, but room is too ter. Refer to Care and Cleaning section. warm—NO ice forming • Thermostat set too warm. Turn thermo- on cooling coil behind stat clockwise to a colder setting. decorative front.
-
Page 25: Specifications
specifications Unit dimensions Model Body dimensions (mm) (WxHxD) 445X320X415 5000~6000 BTU/h 450X346X535 450X346X535 7000~9000 BTU/h 450X346X585 560X400X640 9000~12000 BTU/h 600X380X560 15000~16000 BTU/h 660X434X620 660X428X680 15000~24000 BTU/h 660X428X780 Note: Value of D is for reference only. Minimum rated cross-sectional area of conductors Rated current of appliance (A) Nominal cross-section area >3 y <6... - Page 26 notes...
