ASTRO HDIP 1 Operating Manual

Network
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 10-2019A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDIP 1 and is the answer not in the manual?

Questions and answers

Related Manuals for ASTRO HDIP 1

Summary of Contents for ASTRO HDIP 1

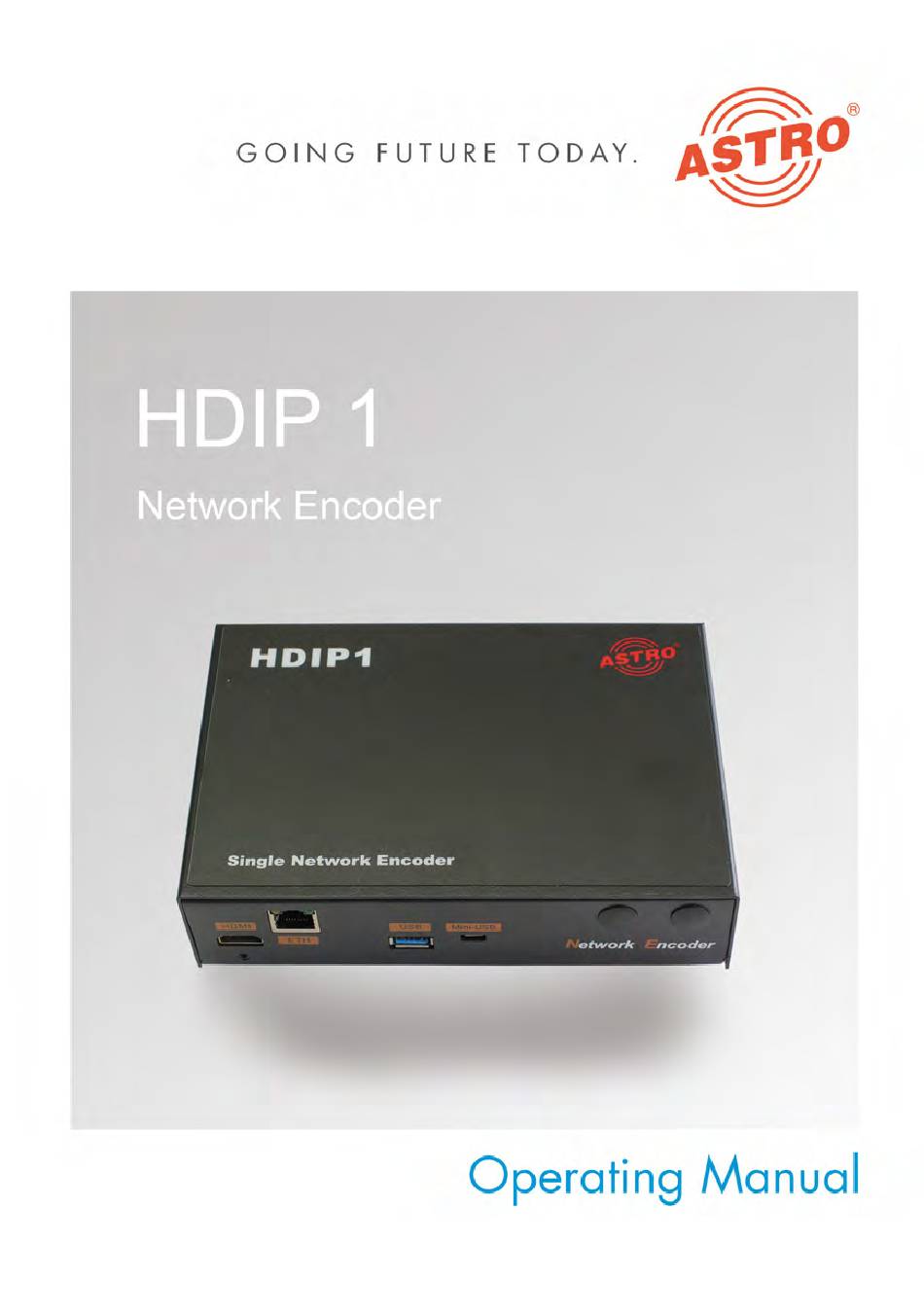

  • Page 1 Version 10-2019A...
  • Page 2 A PDF version of this manual is available to download on the ASTRO website (there may be a more recent version). The ASTRO company confirms that the information in this...

  • Page 3: Table Of Contents

    Contents Contents Symbols and conventions used...........page 04 Intended use................page 05 Target group for this manual..........page 05 Device description...............page 06 Important safety instructions..........page 07 Warranty conditions.............page 11 Performance description............page 11 Disposal................page 11 Connecting................page 12 Starting operation..............page 14 Programming – the web interface........page 15 Connecting to the network...........page 26 Appendix................page 29 Troubleshooting..............page 30...

  • Page 4: Symbols And Conventions Used

    Used batteries must be disposed of at approved recycling points. Batteries must be completely discharged before being disposed of. This symbol indicates components which must not be disposed of with household rubbish. Page 4 Operating Manual HDIP 1 - Version 10-2019A...

  • Page 5: Intended Use

    Proper use Proper use The HDIP 1 is an HDMI to IP converter. It is intended exclusively for signal conversion. Modification of the devices or use for any other purpose is not permitted, and will immediately void any guarantee provided by the manufacturer.

  • Page 6: Device Description

    [5] Reset button [6] Power supply socket Figure 1: HDIP 1 signal converter The HDIP 1 signal converter encoder has a CE marking. This confirms that the products comply with the relevant EC directives and adhere to the requirements specified therein.

  • Page 7: Important Safety Instructions

    Keep this operating manual for future use and for handover in the event of a change of owner or operator. A PDF version of this manual is available to download on the ASTRO website (there may be a more recent version). ...
  • Page 8 The device may only be powered by the supplied external power supply unit. The supplied external power supply unit may only be used to power the device supplied with the external power supply unit. Page 8 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 9 Important safety information  All adhere to all applicable national safety regulations and standards.  Excess mechanical loads (e.g. falling, impacts, vibrations) may damage the insulation used to provide protection from mains voltage.  High excess currents (lightning strike, surges in the power utility grid) may damage the insulation used to provide protec- tion from mains voltage.
  • Page 10 They may also cause device malfunctions.  Do not connect the mains adapter provided to any other prod- ucts. Page 10 Operating Manual HDIP 1 - Version 10-2019A...

  • Page 11: Warranty Conditions

    “www.astro-kom.de”. Performance description The HDIP 1 is used to convert local HDMI sources (e.g. camera, set-top box, PC) into an IP data stream. The source signal can be fed in from a set-top box, a PC or TV set, etc. This can be trans- mitted via Internet/LAN and played back, for example, from a PC, smartphone or other mobile device.

  • Page 12: Disposal

    After use, this device must be disposed of in an orderly manner as electronic scrap in accordance with the current disposal regulations of your district / country / state. ASTRO Strobel is a member of the Elektro system solution for the disposal of packaging materials. Our contract number is 80395. Connecting...
  • Page 13 Connecting Figure 3 shows a connection example for the HDIP 1: Signal Client Router Blue Ray Player Client Router IP Settop Box HDMI Router Internet Client Router Camera Client Router Tablet Client Router Smartphone Figure 3: Connection example The IP output signal can be transmitted via RTMP, RTSP, HLS, HTTP (Internet and LAN) or via UDP (Multicast / Unicast via LAN).

  • Page 14: Starting Operation

    Starting operation Starting operation To start operation of the HDIP 1, you must connect the device to the mains using the supplied power supply unit. You do so like this:  Insert the plug of the power supply unit into the power supply socket of the device [6] (see left).

  • Page 15: Programming - The Web Interface

    HDIP 1 and your PC / laptop are on the same network. If this is the case, enter the IP address of the HDIP 1 in the address line of the browser and press the Enter key.
  • Page 16 Input Resolution: resolution of the input signal  Output Resolution: resolution of the output signal  Output Bitrate: bit rate of the output signal  Output URL: URL of the output signal Page 16 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 17 (see fig. 7). The following input mask will now appear: Figure 7: Parameters of the output channels Click here on one of the entries “CH1”, “CH2” or “CH3” to configure the parameters of the respective channel. Page 17 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 18 Here you can save your new settings by clicking on the “Save” button. If you click on the “Restore” button, the last saved configuration is loaded. If you click on the “Factory” button, the factory settings are loaded. Page 18 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 19 Figure 9: Loading or saving a backup Use the selection button at the bottom left to load a previously saved backup file. By clicking the “Backup” button you can save the current values in a backup file. Page 19 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 20 In the drop-down list at the bottom left, you can select whether the update file to be used is from a USB storage device or from the network. Then click on the corresponding button to install either an update for web, app or CPU. Page 20 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 21 In the next two fields, enter a new user name and a new password. In the last input field you have to enter the new password again. Then click on the “Apply” button to save the changes. Page 21 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 22 To display the network parameters, click on the “System” item at the top of the main menu and then select “Network” from the pop-up menu. The following view appears: Figure 12: Entering network parameters Page 22 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 23 You can enter the following parameter values in the corresponding input fields:  IP Address: IP address of the device. Use this to configure the HDIP 1 via the web interface. The format is xxx.xxx.xxx.xxx If you change the IP address, you must reboot the device.
  • Page 24 Listen Port: The server uses the list port to receive client requests.  CH 1, Ch 2, CH 3 Program Name: Used to inform the server which transport stream to send. Then click on the “Apply” button to save your changes. Page 24 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 25 “RtmpPlayer” from the pop-up menu. The following view appears: Figure 14: RTMP player Here you can select the RTMP player for the device: Then click on the “Apply” button to save your changes. Page 25 Operating Manual HDIP 1 - Version 10-2019A...

  • Page 26: Connecting To The Network

    Carry out the following steps:  For example, connect a DVD player to the HDIP 1 using a signal cable or plug a USB stick with transport stream files into the USB socket of the device to connect it to a signal source.
  • Page 27 2. Playing the media file via a media player installed on a tablet or smartphone (VLC recom- mended). See figure 17 and 18. Figure 17: Playback via a media player on your smartphone or tablet Figure 18: Playback via a media player on your smartphone or tablet Page 27 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 28 Connecting to the network 3. Playing the media file via a media player installed on a PC (VLC recommended). See figure 19. Figure 19: Playback via a media player on the PC Page 28 Operating Manual HDIP 1 - Version 10-2019A...

  • Page 29: Appendix

    Here is an overview of the requirements for the individual playback media: Figure 20: Overview of playback requirements (1: browser, 2: media player, 3 browser with HLS plugin, 4: depends on STB protocols) Page 29 Operating Manual HDIP 1 - Version 10-2019A...

  • Page 30: Troubleshooting

     Check whether the output level on the device is within the permissible limits for the operating level. If the problem cannot be resolved, please contact the ASTRO customer service. Maintenance and repair The following safety information must be observed when performing maintenance and repair work.

  • Page 31: Technical Data

    Remote control Webserver NMS Language English Upgrade USB / NFS Common data Dimensions [mm] 183 x 110 x 45 Power supply [VDC] Weight [kg] < 1 Ambient temperature [°C] 0 …+45 Page 31 Operating Manual HDIP 1 - Version 10-2019A...
  • Page 32 Internet: www.astro-kom.de All the information contained in this document has been checked in good faith. The ASTRO company cannot be held liable for any damage or injury arising in connection with the use of these operating instructions. Operating Manual HDIP 1 - Version 10-2019A...
