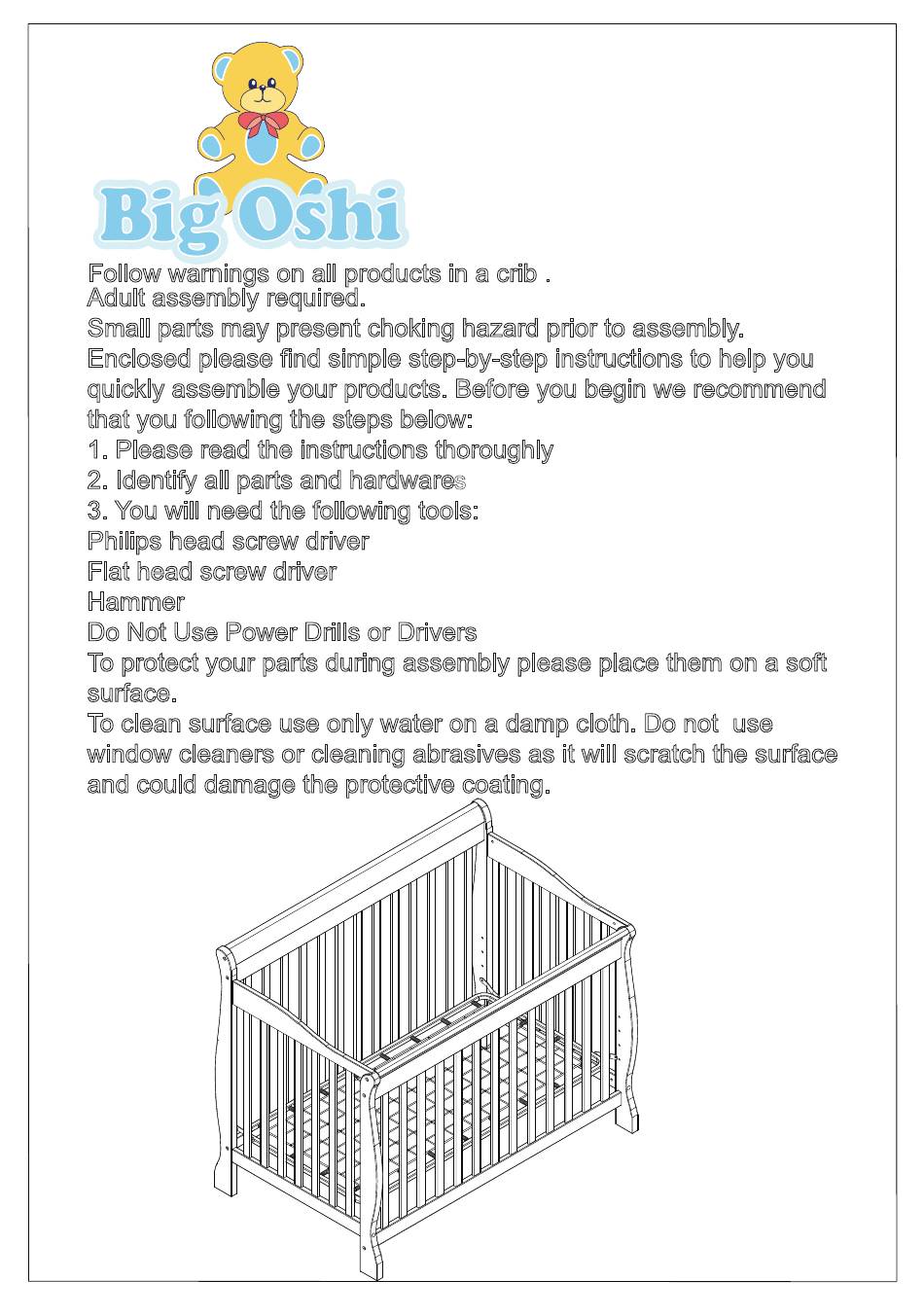

BABY TIME INT'L INC
250 PASSAIC ST., NEWARK, NJ 07104
4 IN 1 CONVERTIBLE STEPHANE CRIB
STYLE# CRB-414, CRB-415, CRB-416
Follow warnings on all products in a crib .
Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardware.
s
3. You will need the following tools:
Philips head screw driver
Flat head screw driver
Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a soft
surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Big Oshi STEPHANE CRB-414
Summary of Contents for Big Oshi STEPHANE CRB-414
- Page 1 BABY TIME INT'L INC 250 PASSAIC ST., NEWARK, NJ 07104 4 IN 1 CONVERTIBLE STEPHANE CRIB STYLE# CRB-414, CRB-415, CRB-416 Follow warnings on all products in a crib . Adult assembly required. Small parts may present choking hazard prior to assembly. Enclosed please find simple step-by-step instructions to help you quickly assemble your products.
- Page 2 WARNING ! . Failure to follow these warnings and the in structions could result in serious injury or death. . Read all instructions before assembling crib, keep instructions for future use. . Upon completion of assembly be sure all screws, bolts and fastening devices have been securely tightened.
- Page 3 CONNECTION HARDWARE a: M6*45 Allen head b:Wood dowels (8pcs) c:Allen wrench (1pc) d:M6*75 Allen head bolt (8pcs) bolt (7pcs) e:Barrel nuts (16pcs) f: M6*15 Allen head bolt (4pcs) g:M6*55 Allen head bolt (8pcs) Do not use electric hand drill PARTS ENCLOSED IN CARTON A: Left head board (1 pc) B: Right head board (1 pc) C:Top rail (2 pc)
- Page 4 STEP 1 Attach left back leg (A1) and left front leg (A3) to left board (A2) using bolts (d) and barrel nuts (e) . Assemble right head board use the same way . STEP 2 Attach The top rail (C) and The back rail bottom (E) to The right head board (B) and The left head board (A) using wood dowels...
- Page 5 STEP 3 Locate the mattress support (G) with tabs . Be sure the smooth side of the mattress support (G) is faced upward . Position the tabs of the mattress support(G) to mount to the selected position onto the legs . Insert the bolts (f) , through the tabs and into thread inserts , then tighten securely with allen...
- Page 6 Converting crib to a toddler bed Please note that the warning sticker is placed on the cribs to keep parents and caregivers informed it is a requirement by law under CPSC And ASTM. We do apologize for any inconvenience this may cause you. You have the option to convert crib to a toddler bed 1.Connect Rail (H) to The bottom bar (J) by Allen head bolts (a) .
- Page 7 Converting crib to a day bed You have the option to convert crib to a day bed 1:Remove The front top rail (C1) and The front rail bottom (F) . 2:Install the mattress support (G) in its lowest position. 3.To assemble the bottom bar(J) to the front legs as the image showed.
