Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardware.
3. You will need the following tools:
Philips head screw driver
Flat head screw driver
Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a soft
surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.
Please note that the warning sticker is placed on the cribs to keep parents and
caregivers informed it is a requirement by law under CPSC And ASTM.
We do apologize for any inconvenience this may cause you.

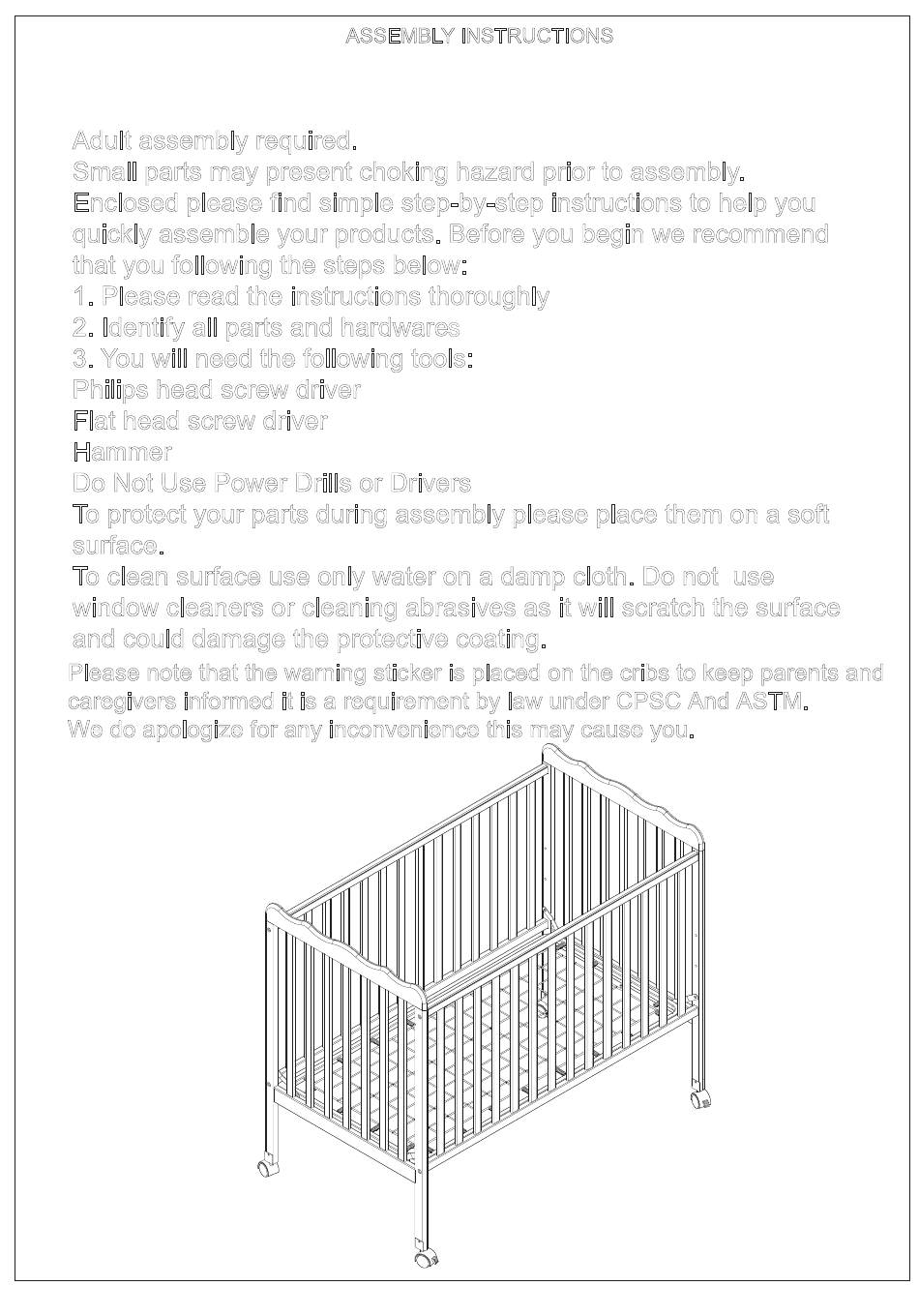

ASSEMBLY INSTRUCTIONS
ITEM NO: HL202
s
1
Advertisement
Related Manuals for Big Oshi HL202
Summary of Contents for Big Oshi HL202
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO: HL202 Adult assembly required. Small parts may present choking hazard prior to assembly. Enclosed please find simple step-by-step instructions to help you quickly assemble your products. Before you begin we recommend that you following the steps below: 1.
- Page 2 WARNING ! · FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. · READ ALL INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP INSTRUCTIONS FOR FUTURE USE. ANY MATTRESS USDED IN THIS CRIB MUST BE AT LEAST 51-5/8 INCHES BY 27-1/4 INCHES WITH A THICKNESS NOT EXCEEDING 6 INCHES.
- Page 3 CONNECTION HARDWARE a: 2-1/8” Allen head bolt (8pcs) e: Castors (2 pcs) b: 3/5” Allen head bolt (4 pcs) f: Castors (2 pcs) c: 2”Allen Warench (1pc) d:Barrel nuts (8 pcs) Do Not Use Power Drills or Drivers CRIB COMPONENTS B.
- Page 4 Attach the stationary side (A) to the head board (B) by using bolts(a) and barrel nuts (d). Locate the metal spring (C) with tabs. Be sure the smooth side of metal spring (C) is faced upward. Position the tabs of metal spring (C) to mount to the selected position onto the legs.
- Page 5 Attach the stationary side (A) to the head board (B) by using bolts(a) and barrel nuts (d). Insert the four casters (e&f) as shown and tighten all bolts. Inspect the crib to make sure it is assembled correctly and all bolts are tight. FLAT HEAD SCREWDRIVER WRENCH FLAT HEAD SCREWDRIVER AND...
- Page 6 Converting crib to a toddler bed (toddler rail and converting bolts are sold separately) Please note that the warning sticker is placed on the cribs to keep parents and caregivers informed it is a requirement by law under CPSC And ASTM. We do apologize for any inconvenience this may cause you.
- Page 7 Converting crib to a day bed (bottom bar and converting bolts are sold separately) ATTENTION : Please remove the wheels when the crib is converted to day bed.
