Big Oshi ELIZABETH CRB-431 Assembly Instructions Manual

5 in 1 convertible crib
Hide thumbs

Advertisement

Quick Links

Download this manual

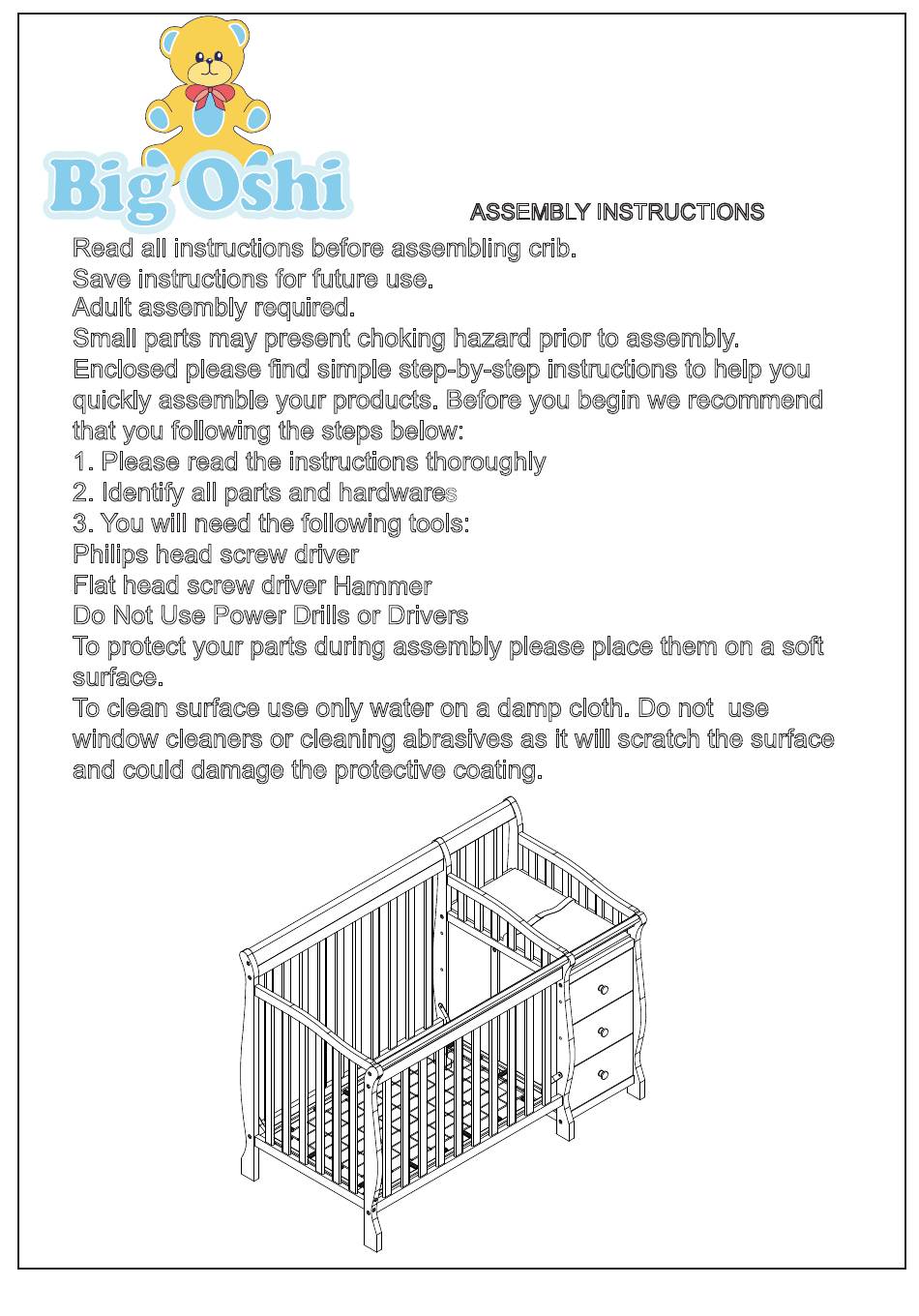

Read all instructions before assembling crib.
Save instructions for future use.
Adult assembly required.
Small parts may present choking hazard prior to assembly.
Enclosed please find simple step-by-step instructions to help you
quickly assemble your products. Before you begin we recommend
that you following the steps below:
1. Please read the instructions thoroughly.
2. Identify all parts and hardware.
3. You will need the following tools:
Philips head screw driver
Flat head screw driver Hammer
Do Not Use Power Drills or Drivers
To protect your parts during assembly please place them on a soft
surface.
To clean surface use only water on a damp cloth. Do not use
window cleaners or cleaning abrasives as it will scratch the surface
and could damage the protective coating.
BABY TIME INT'L INC
250 PASSAIC ST., NEWARK, NJ 07104
5 IN 1 CONVERTIBLE ELIZABETH CRIB
STYLE# CRB-431, CRB-435
ASSEMB
s
1
LY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELIZABETH CRB-431 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Big Oshi ELIZABETH CRB-431

Summary of Contents for Big Oshi ELIZABETH CRB-431

  • Page 1 BABY TIME INT'L INC 250 PASSAIC ST., NEWARK, NJ 07104 5 IN 1 CONVERTIBLE ELIZABETH CRIB STYLE# CRB-431, CRB-435 ASSEMB LY INSTRUCTIONS Read all instructions before assembling crib. Save instructions for future use. Adult assembly required. Small parts may present choking hazard prior to assembly. Enclosed please find simple step-by-step instructions to help you quickly assemble your products.
  • Page 2 WARNING ! · FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. · READ ALL INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP INSTRUCTIONS FOR FUTURE USE. · THE CHANGER IS INTENDED FOR USE WITH CHILDREN WEIGHING UP TO 30 POUNDS ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4 BY 51 5/8 IN.

  • Page 3: Connection Hardware

    CONNECTION HARDWARE d:3” Allen head bolt (4pcs) a: 1-3/5” Allen head c:Allen wrench (1pc) b:Wood dowel(12pcs) bolt (18 pcs) e:Barrel nuts (12 pcs) f: 3/4” Allen head bolt (4 pcs) g:2-1/5” Allenhead bolt(8 pcs) h:1” Screw (3 pcs) m:Belt (1pc) k:Washer (2pcs) j:Shelf support (4pcs) l:Bolt (2pcs)
  • Page 4 Changer front bar I:Changing surface (1pc) K:Changer bottom shelf (1pc) J:Changer middle panel F: T op (1pc) G: Middle (1pc) H:Bottom (1pc) M:Left back leg (1pc) P:Top rail(2pcs) L:Changer left side (1pc) N:Left board (1pc) O:Left front leg (1pc) Q:Back rail bottom (1pc) R:Metal spring support platform (1pc) S:Front rail bottom (1pc) Drawer T:Front panel (3pcs)
  • Page 5 CRIB ASSEMBLY STEP 1 Attach The changer back(B&C) , and The changer middle(D&E) , and The changer front (F,G,&H) toThe changer right side (A) using wood dowels (b) bolts (a) by allen wrench (c) . Model shown is example only. Styles may vary .
  • Page 6 STEP 3 Attach The changer back (B&C) and The changer middle (B&C) and The changer front (F,G&H) to The changer left side (L) using wood dowels (b),bolts (a) by allen wrench (c) . Model shown is example only. Styles may vary . STEP 4 Attach left back leg (M) and left front leg (O) to left board...
  • Page 7 STEP 5 Attach The top rail (P) and the bottom rail (Q) to The changer side (L) and left headboard using wood dowels(b),bolts(a&g) and barrel nuts(e) by allen wrench. Model shown is example only. Styles may vary . STEP 6 Locate the mattress support (R) with tabs .
  • Page 8 STEP 7 Attach The top rail (P) and bottom front rail (S) to The changer side (L) and the left head board using wood dowels (b),bolts (a&g),barrel nuts (e) and allen wrench (c) . Model shown is example only. Styles may vary . STEP 8 Attach left side panel (U) &...
  • Page 9 STEP 9 Slide the bottom panel (X) painted side up , into grooves of the left side panel (U) and the right side panel (V) . In the end , insert the bottom (X) into the groove of back panel (W) . Model shown is example only.
  • Page 10 STEP 11 Insert the shelf supports (j) in the holes in the posts of changing table. Then place the changer middle shelf (Y) inside the shelf support. Tighten the screws in the shelf supports (j) . CHECK THAT ALL BOLTS ARE TIGHTENED. Model shown is example only.
  • Page 11 STEP 12 1.Slide the drawers into rails on head board (A&L) . 2.Assembly the belt (m) to the changer side (A&L) using washer(k) and bolt(l). 3.Add the pad (Z) . 4.Put the child on the pad,then insert safty restraint system of the tape across child's waist. The tightness can be adjusted by increasing the te nsion of the tape.
  • Page 12 Converting crib to a day bed You have the option to convert crib to a day bed 1:Remove the front rail bottom(S) and the top rail (P), 2:Install the mattress support (R) in its lowest position. 3:Assembly the top rail (P) to left head board and changer side (L) using allen head bolt (a) and wood dowel (b) as shown .
  • Page 13 FURNITURE TIPPING DETERRENT HARDWARE HOW TO LOCKED Tipping furniture may injury young children . Use of this tipping restraint hardware is highly recommended . This hardware , when peoperly installed , could provide protection against the unexpected tipping of furniture due to improper use . WARNING This hardware is only a deterrent .

This manual is also suitable for:

Elizabeth crb-435
