Installation and Mounting:
Carefully remove the unit from its packaging. Examine the unit for
transit damage. If damage is found, return the product to your local
dealer for warranty replacement. Do not use damaged or broken
parts. Determine a mounting location with the least amount of
curvature as possible. Also, ensure there is a clear line of sight for
oncoming traffic.
CAUTION!
When drilling into any vehicle surface, make sure that the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged.

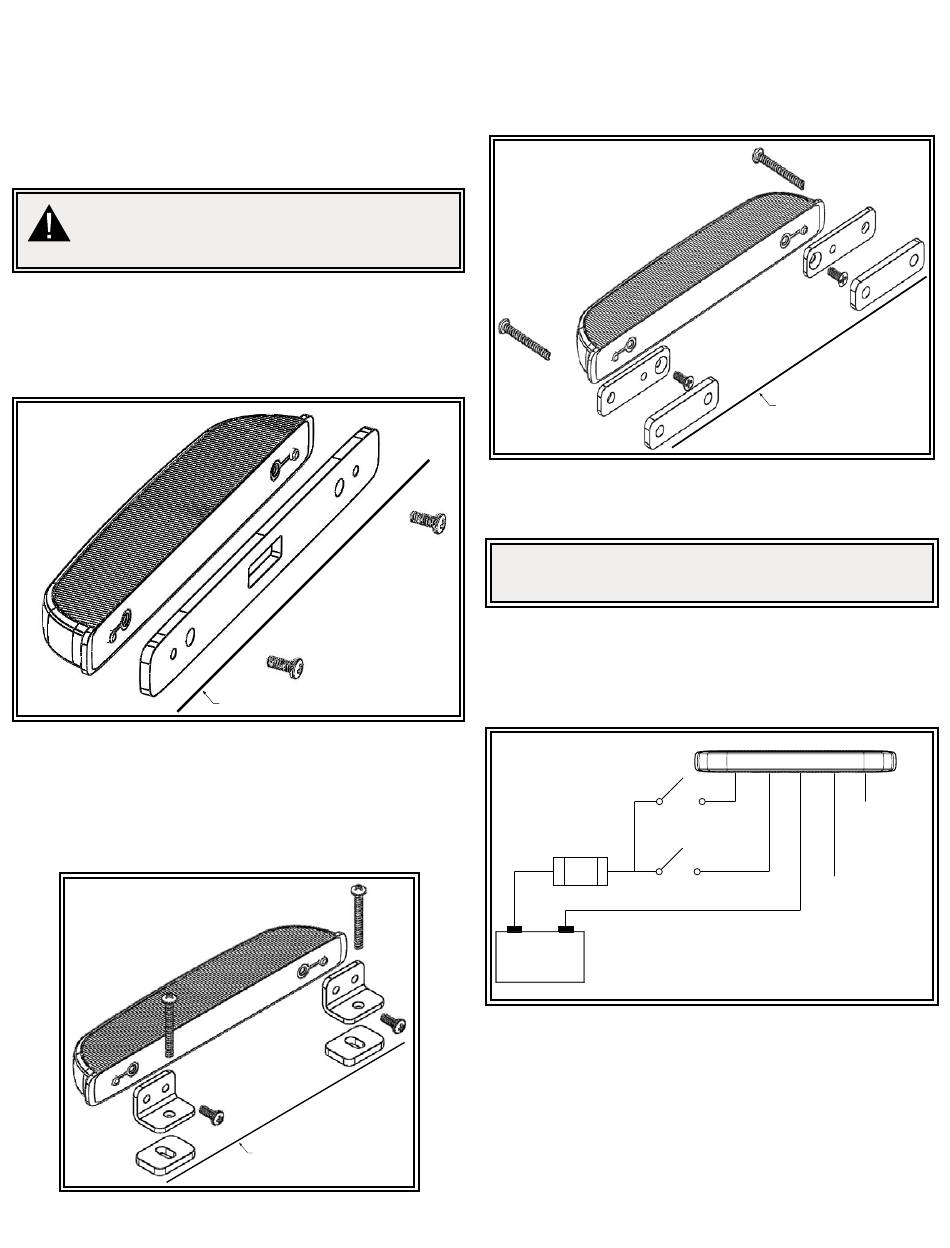

Surface Mounting:
Mark and drill two 3.4 mm holes 3.543" or 90 mm apart. Drill a hole
for the wire exit as needed. Secure in place with the gasket and
supplied hardware as shown in FIGURE 1.
L Bracket Mounting:
Mark and drill two 2.9 mm holes 3.937" or 100 mm apart. Drill a hole
for the wire exit as needed. Secure in place with the L brackets, gas-
kets and supplied hardware as shown in FIGURE 2.
MOUNTING SURFACE
FIGURE 1
MOUNTING SURFACE
FIGURE 2
Offset Mounting:
Mark and drill two 2.9 mm holes 5.827" or 148 mm apart. Drill a hole
for the wire exit as needed. Secure in place with the offset brackets,
gaskets and supplied hardware as shown in FIGURE 3.
Wiring Instructions:
IMPORTANT! This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
The CD5051 Series of directional LED light heads are self flash-
ing. All wiring should be stranded and a minimum of 22 AWG. The
positive line must have an in-line 3 Amp slow-blow fuse for each
directional as shown in FIGURE 4. Isolate the yellow and blue wires
when not in use.
SWITCH
(USER SUPPLIED)
SWITCH
(USER SUPPLIED)
IN-LINE FUSE
(USER SUPPLIED)
BLACK - GROUND
+ -
Note: On dual color units only, apply (+) power to the blue
wire for dimming.
MOUNTING SURFACE
FIGURE 3
WHITE - YELLOW -
POSITIVE (SYNC)
(DUAL COLOR
ONLY)
RED - POSITIVE
BLUE -
FLASH PATTERN
SELECT (MOMENTARY
TO GROUND)
FIGURE 4
