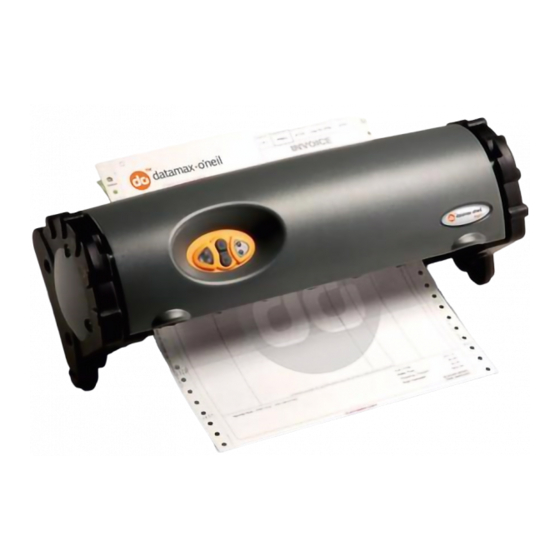

Oneil VMP Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VMP SERIES OF PRINTERS
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oneil VMP Series

Summary of Contents for Oneil VMP Series

  • Page 1 VMP SERIES OF PRINTERS User's Guide...

  • Page 3: Table Of Contents

    ABLE OF ONTENTS VMP Printer Views Open View Closed View Setting Up the Printer Installing a Radio Card (VMP-2000 Only) Using the Ribbon Installing the Ribbon Removing the Ribbon Loading Paper Paper Quantity Guidelines Setting Top of Form Tearing Paper Configuring the Printer Using the Control Panel LED Indicators...

  • Page 4: Vmp Printer Views

    VMP SERIES OF PRINTERS USER'S GUIDE VMP Printer Views Open View Paper exit Printer's cover Control panel PCMCIA slot (under access cover) Closed View Paper exit Control panel...

  • Page 5: Setting Up The Printer

    VMP SERIES OF PRINTERS USER'S GUIDE Setting Up the Printer The printer mounts to a wall or surface with the optional dashmount bracket assemblies. For installation instructions, refer to the instruction sheet supplied with the accessory. 1. After mounting the printer, connect the cigarette lighter adapter cable or power cable to the connector with the white tag (Figure 1a and 1b).

  • Page 6: Installing A Radio Card (Vmp-2000 Only)

    VMP SERIES OF PRINTERS USER'S GUIDE Installing a Radio Card (VMP-2000 Only) Warning: Disconnect the power before installing or removing a radio card. 1. Open the printer's cover. 2. Push in the locking tab and lift the access cover (Figure 2).

  • Page 7: Using The Ribbon

    VMP SERIES OF PRINTERS USER'S GUIDE Using the Ribbon Installing the Ribbon 1. Remove the ribbon from its packaging. 2. Open the printer's cover. 3. Orient the printer so that you can access the ribbon as shown in Figure 6.

  • Page 8: Removing The Ribbon

    VMP SERIES OF PRINTERS USER'S GUIDE Removing the Ribbon 1. Slide the printhead away from the edge of the printer (Figure 9). Figure 9 2. Pull the ribbon away from the printer (Figure 10). Figure 10...

  • Page 9: Loading Paper

    VMP SERIES OF PRINTERS USER'S GUIDE Loading Paper Note 1: Do not use paper that has glued edges or paper with carbon between the sheets; only use paper with clawed crimps. Note 2: For information on the printer's paper capacity, Paper Quantity Guidelines on page 11 1.
  • Page 10 VMP SERIES OF PRINTERS USER'S GUIDE 6. Align the first sheet of paper on top of the open tractor feed wheel. The holes in the paper should align with the studs in the tractor feed wheel (Figure 14). Note: Printing occurs “face up;” therefore, when you are loading paper, the white page should be facing up.

  • Page 11: Paper Quantity Guidelines

    VMP SERIES OF PRINTERS USER'S GUIDE Paper Quantity Guidelines Note: Loading more paper than the maximum number of sheets results in paper jams. Form Parts/Ply Maximum Number of Sheets Setting Top of Form 1. Press Button 1 to turn on the printer.

  • Page 12: Tearing Paper

    VMP SERIES OF PRINTERS USER'S GUIDE Tearing Paper 1. Set the paper to top of form. For more information, Setting Top of Form on page 11 2. Verify the printer's cover is closed. 3. Grab one side of the paper at a leading edge and pull up (Figure 17).

  • Page 13: Using The Control Panel

    VMP SERIES OF PRINTERS USER'S GUIDE Using the Control Panel Button 2 LED 1 LED 2 Button 1 Paper exit LED Indicators LED 1 Description Action Red flash - slow Low temperature. Change environment. Red flash - fast High temperature. Change environment.

  • Page 14: Audio Indicators

    VMP SERIES OF PRINTERS USER'S GUIDE Audio Indicators Beep(s) Description Action Series of 50 Head jam. Check for paper jam. short beeps 1 short RF power is on (when RF None. power button is pressed and RF power was off).

  • Page 15: Button Functions

    VMP SERIES OF PRINTERS USER'S GUIDE Button Functions Function Description 1 line feed Press Button 1 once. 5 line feeds Press and hold Button 1. Form feed Press and hold Button 1, then release. Self-test Press and hold Button 1 until printing starts.
  • Page 16 VMP SERIES OF PRINTERS USER'S GUIDE Agency Approvals FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 17 VMP SERIES OF PRINTERS USER'S GUIDE Warranty The Company warrants that O'Neil Product Development, Inc.'s products are free from defects in manufacturing materials and workmanship for one (1) year from date of original purchase to Buyer/Distributor (OEMs 90 days from the date of purchase).

  • Page 18: Supplies

    VMP SERIES OF PRINTERS USER'S GUIDE Supplies Use only supplies certified by the Original Equipment Manufacturer (OEM). For OEM supplies, please contact O’Neil at (949) 458-0500. For more information For more information about using the printer, contact O’Neil at (949) 458-0500, or visit...
  • Page 19 VMP SERIES OF PRINTERS USER'S GUIDE...
  • Page 20 World Headquarters O'Neil Product Development 8 Mason Irvine, CA 92618-2705 Ph: 949.458.0500 Fx: 949.458.0708 Europe 6 Joplin Court, Crownhill Milton Keynes MK8 0JP United Kingdom Ph: +44 (0) 1908 635360 Fx: +44 (0) 1908 635361 AustralAsia 1/8 Railway Terrace Dutton Park QLD 4102 Austalia Ph: +61 (7) 3255 3360...

This manual is also suitable for:

Vmp-2000
