2te Printer: Top View ... 1 Using the Battery: General Guidelines ... 2 Charging the Battery ... 2 Determining Battery Condition ... 2 Installing Paper ... 3 Printing a Self-Test ... 4 Clearing Linerless Paper Jams ... 5 Removing a Paper Jam ... 5 Avoiding a Paper Jam ...

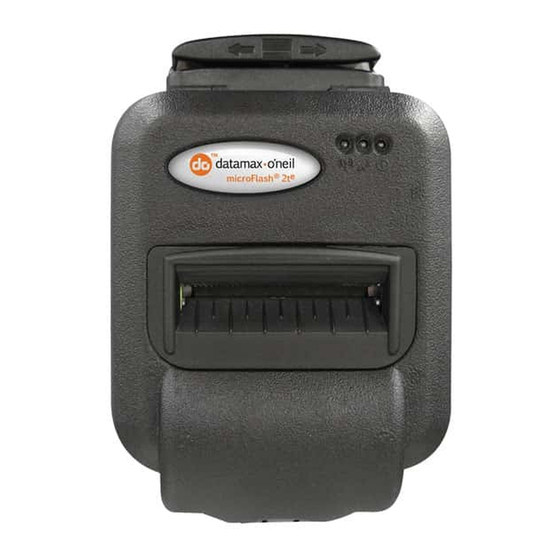

MICROFLASH 2Te PRINTER USER'S GUIDE microFlash 2t Bluetooth Button Self-Test Button Print Head Release Lever Data Port Paper/Paper Cavity Figure 1 Figure 2 Latch NOTE: When the cable plug is inserted into the Power Port, the cable plug must lay horizontally to the bottom of the surface of the case.
MICROFLASH 2Te PRINTER USER'S GUIDE Using the Battery: General Guidelines If the printer has not been used for a long period of time, it may be necessary to recharge the battery. For more information, see Charging the Battery If the battery is low when the printer “wakes up,” the printer sounds three short beeps.
MICROFLASH 2Te PRINTER USER'S GUIDE Caution: The operating temperature of this portable printer is 50° C. However, the operating temperature when used with O’Neil power supply for charging the portable printer is limited to 40° C. Please charge the printer in a suitable location that meets this temperature requirement.
MICROFLASH 2Te PRINTER USER'S GUIDE 4. Feed the end of the paper under the roller. The paper automatically feeds under the roller and exits from the top of the print head. Verify the paper exits straight. Figure 5 5. Lower the green, print head release lever (Figure 6).
MICROFLASH 2Te PRINTER USER'S GUIDE Clearing Linerless Paper Jams Note: The following applies to printers that are designed for linerless paper. A paper jam may occur if an O’Neil printer with linerless paper installed is left in a cold environment without being used for an extended period of time (such as overnight).
MICROFLASH 2Te PRINTER USER'S GUIDE Remove the Linerless Paper from the Print Head If the printer is going to be in a cold environment for a long period of time, remove the linerless paper from the print head. The paper can remain in the printer.
MICROFLASH 2Te PRINTER USER'S GUIDE Using Printer Data Cables 1. Select the appropriate cable for use with the host/ device you are using. 2. Insert the plug into the printer data port (Figure 12). Figure 12 3. Lead the cable through the notch on the outside of the printer cover.
Page 10
MICROFLASH 2Te PRINTER USER'S GUIDE Note: When closing the printer, be cautious of the cable that is exiting to prevent pinching of the cable. Remove the cable when the printer is not in use. Figure 13...
MICROFLASH 2Te PRINTER USER'S GUIDE Using Bluetooth Note: The following information applies to printers with Bluetooth capabilities. Radio printers are configured with default factory settings. To determine your printer's radio configuration, print a self-test. (For more information, Printing a Self-Test on page 4 multiple printers, configure them specifically for use in your environment.
MICROFLASH 2Te PRINTER USER'S GUIDE Using Buttons, LEDs, and Audio Indicators Button Functions Green Self-Test Button Short press If printer is asleep; printer wakes up. If printer is awake; paper feeds. Long press Prints a self-test. (press and hold for five seconds)
Page 13
MICROFLASH 2Te PRINTER USER'S GUIDE Charge LED Indicators State of Charge Flashing Charge in progress. Orange Flashing Red Green Charge complete. Red flash - Battery is too cold. slow Red flash - High temperature. fast Red to Battery voltage is very orange solid low.
MICROFLASH 2Te PRINTER USER'S GUIDE Audio Indicators Beep(s) Description Printer wakes up. Out of paper. Low battery. 1 short RF power is on (when blue, RF power button is pressed and power was turned off). 2 short RF power is off (when...
MICROFLASH 2Te PRINTER USER'S GUIDE Using a CardReader Note: The following information applies to printers installed with the CardReader option. Figure 14 General Guidelines To use the CardReader, swipe a card with the stripe facing toward the printer, then slowly move the card left or right in the CardReader slot.
MICROFLASH 2Te PRINTER USER'S GUIDE Agency Approvals FCC Notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 19
MICROFLASH 2Te PRINTER USER'S GUIDE Copyright This manual and any examples contained herein are provided “as is” and are subject to change without notice. O’Neil Product Development, Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Quality supplies are key to obtaining optimal image quality and print performance. Quality supplies are also the key to extending the life of the printer. O'Neil Product Development strongly recommends using O'Neil Certified Supplies only.
