Page 10: Table Of Contents
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 12 IE/CY Table of contents Page 1. Introduction ......................13 2. Safety instructions ..................13-18 3. Layout ......................18 4. Items supplied ....................18 5. Intended use ....................18-19 6. Technical data .....................19-20 7. Before starting the machine ................20 8. Assembly .....................20-21 9. -
Page 11: Introduction
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 13 IE/CY 1. Introduction 2.2 General safety instructions for electrical equipment Important! Caution: When using electrical tools, the When using equipment, a few safety following safety measures are to be taken precautions must be observed to avoid injuries to prevent electric shocks, injuries and risk and damage. - Page 12 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 14 IE/CY 10. Do not use the cable for purposes other parts are in good working order and function than that for which it is designed. correctly. Check that the moving parts are - Do not carry the tool by the cable and do working correctly, that they do not jam, and not use it to pull the plug out of the socket.
-
Page 13: Safety Instructions
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 15 IE/CY - Ear plugs to prevent the risk of damaging procedures described in these instructions. your hearing; Using the equipment in any other way may - A breathing mask to avoid the risk of result in hazardous exposure to laser inhaling hazardous dust. - Page 14 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 16 IE/CY 2.3.4 Maintenance and servicing Before you use the machine for the first The following conditions can have an time, check that the voltage marked on the influence on noise impact on the operator: rating plate is the same as your mains - Type of saw blade (e.g.
- Page 15 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 17 IE/CY narrow workpieces (smaller than 120 mm in Keep your work area clean and tidy. Untidy width). and unlit work areas can result in accidents. Never cut workpieces which are too small to Keep the tool out of the rain and away from hold securely in your hand.
-
Page 16: Layout

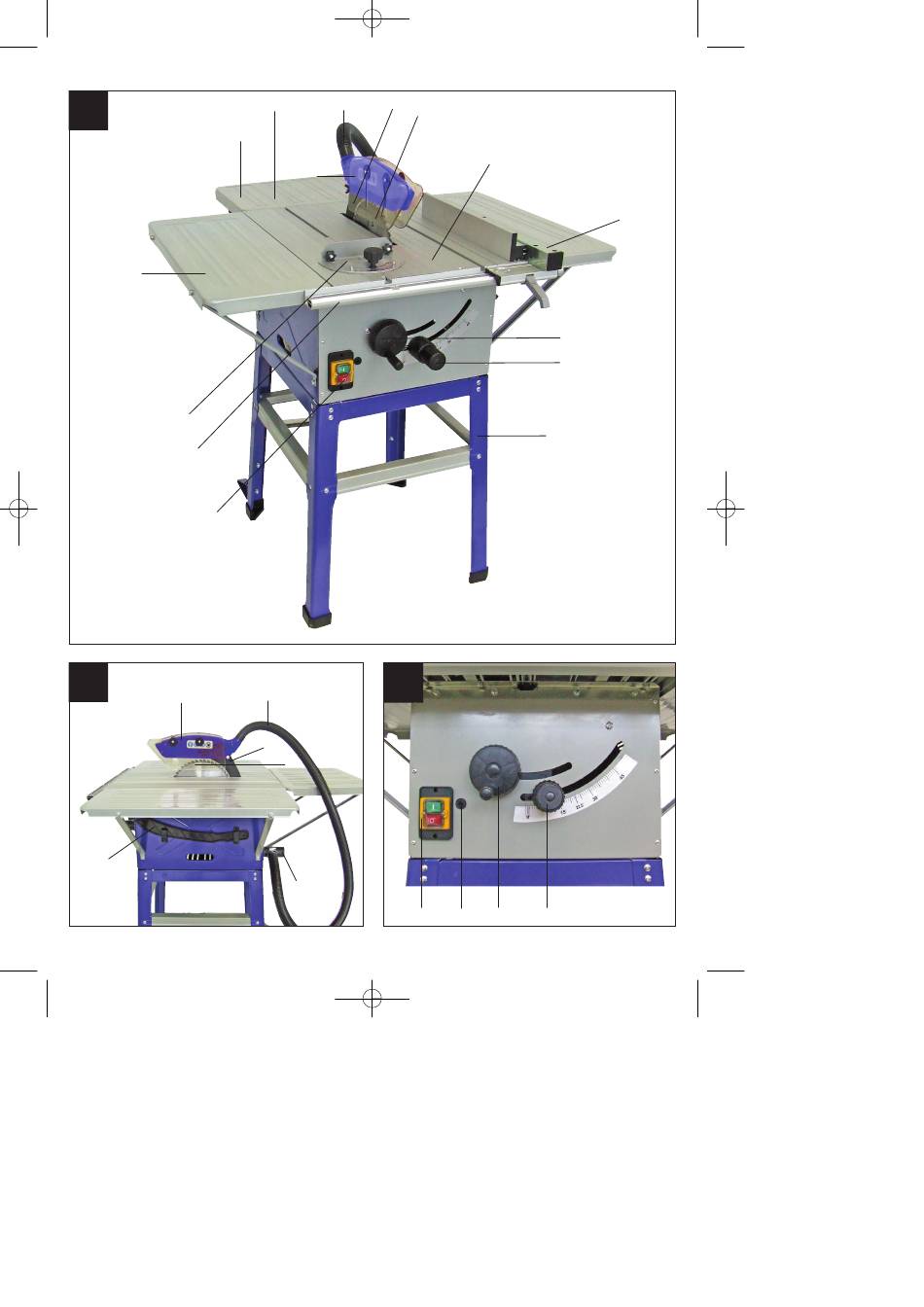

Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 18 IE/CY Follow the instructions for lubrication and 29. Groove changing tools. 30. Knurled screw Keep handles dry, clean and free from oil 31. Laser and grease. 32. ON/OFF Switch for laser Keep the push stick or handle for a push 33. -
Page 17: Technical Data
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 19 IE/CY trade or industrial businesses or for equivalent resilient steady mains current of at least 100 purposes. A per phase. Only saw blades designed for the machine should be used (HM or CV saw blades). Use of 6. -
Page 18: Before Starting The Machine
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 20 IE/CY and other sources of noise etc., e.g. the number be mounted at the rear of the machine, so of machines and other neighbouring that the holes are facing the rear. (Fig. 5) operations. Reliable workplace values may also Now fasten the longitudinal and cross struts vary from country to country. -
Page 19: Operation
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 21 IE/CY Push the recess in the splitter into the Re-tighten the screws (27) and assemble splitter holder (a). the table inserts (6) (see 8.4). Adjust the splitter as shown in Fig. 22 and fasten using the screws (27). 8.7 Assembly/Changing the saw blade (Fig. - Page 20 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 22 IE/CY Anticlockwise direction: Larger cutting depth High parallel stop (thick material): Scale k Clockwise direction: Smaller cutting depth Low parallel stop (thin material): Scale l 9.3 Setting the angle (Fig.3) Loosen the locking grip (9) Adjust the parallel stop (7) to the desired Set the desired angle on the scale by dimension on the gauge (m) and fasten with...
-
Page 21: Operation
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 23 IE/CY attached as shown in Fig. 34. To do this, laser light is enlarged to form a line and is use the carriage bolt (o). emitted through the laser emission aperture. You can then use the line as an optical Caution: marker for the sawing line for precision cuts. - Page 22 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 24 IE/CY rough cutting finish 10.1.2 Cutting very narrow workpieces 48 Teeth: Hard materials, lower chip depth, (Fig. 43) fine cutting finish Be sure to use a push block when making longitudinal cuts in very narrow workpieces 10.1 Making long cuts (Fig.
-
Page 23: Replacing The Power Cable
Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 25 IE/CY 11. Replacing the power cable 13.3 Maintenance There are no parts inside the equipment which require additional maintenance. If the power cable for this equipment is damaged, it must be replaced by the 13.4 Ordering replacement parts manufacturer or its after-sales service or Please provide the following information on all... - Page 24 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 26 IE/CY Disposal of batteries Batteries contain substances which are harmful to the environment. Do not throw batteries into the normal household waste, into fire or into water. Batteries should be collected, recycled or disposed of in an environmentally friendly way.
- Page 25 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 27 IE/CY For EU countries only Never place any electric tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and be disposed of in an environment-friendly fashion, e.g.
-
Page 26: Declaration Of Conformity
13:15 Uhr Seite 28 IE/CY 15. Declaration of conformity Konformitätserklärung Einhell Germany AG · Wiesenweg 22 · D-94405 Landau/Isar erklärt folgende Konformität gemäß EU-Richtlinie dichiara la seguente conformità secondo la und Normen für Artikel direttiva UE e le norme per l’articolo declares conformity with the EU Directive attesterer følgende overensstemmelse i... -
Page 27: Warranty Certificate
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Einhell UK Ltd Morpeth Wharf ·Twelve Quays Birkenhead, Wirral CH41 1NG Tel. - Page 28 Anleitung_TKS_1700_4340675:_ 13.05.2009 13:15 Uhr Seite 30...
