Summary of Contents for Artila Matrix-700

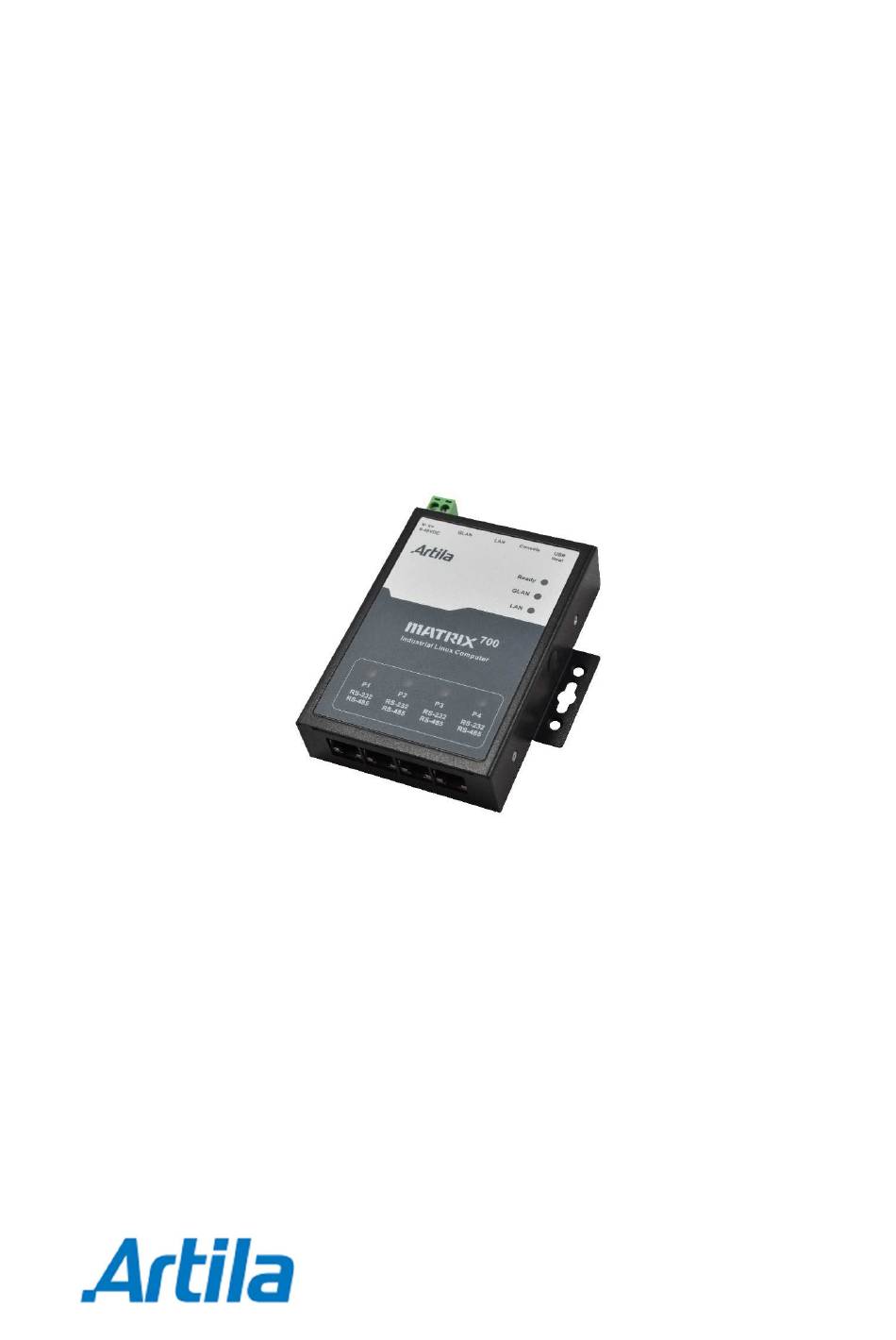

- Page 1 Matrix-700 Linux-Ready Cortex-A5 Industry Box Computer Hardware Guide Version: 1.1 2017 July...
- Page 2 Matrix-700 Hardware Guide Trademarks The Artila logo is a registered trademark of Artila Inc. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of Artila.
- Page 3 Matrix-700 Hardware Guide Document Amendment History Revision Date Remark V 1.0 2016 Jun. Initial Appendix Setuart, How to configure USB dongle, V1.01 2016 Aug. Installation Toolchain, Webmin, and Restore to default. V1.02 2016 Nov. Update Kernel version. Add Webmin link information.
-
Page 4: Table Of Contents
Matrix-700 Hardware Guide Table of Contents Introduction ....................5 Features ....................5 Specifications (Hardware)................ 5 Specifications (Software) ................. 7 Packing List ..................... 7 Optional Accessory.................. 7 Layout ......................8 Pin Assignment and Definitions ..............9 LED Indicators ..................9 Serial Port ....................10 Power Connector .................. -
Page 5: Introduction
Matrix-700 Hardware Guide 1. Introduction Matrix-700 based on ARM Cortex-A5, is a Linux-ready IoT gateway with highly integrated and low power consumption. Matrix-700 provides an ideal building block that easily integrates with a wide range of target markets, such as industrial control, automation, mobile gateway and other applications. - Page 6 Matrix-700 Hardware Guide TTY (Serial) Ports • 4 x RS-485 / RS-232 ports, can be selected by software • RS-232 Signal: TX, RX, RTS, CTS • RS-485 Signal: Data+, Data- (Automatic flow control) TTY (Serial) Port Parameters • Baud Rate: Up to 921.6Kbps •...
-
Page 7: Specifications (Software)
Script Language: PHP/Python/Perl/NodeJS Text editor: vim/nano/sed Administration: Webmin 1.4 Packing List Matrix-700: Linux-ready Cortex-A5 536MHz Industrial Box Computer with 512MB SDRAM, 8GB eMMC Flash 1.5 Optional Accessory DK-35A (36-DK35A-000): DIN RAIL Mounting Kit PWR-12V-1A (31-62100-000): 110~240VAC to 12VDC 1A Power Adaptor... -
Page 8: Layout
Matrix-700 Hardware Guide 2. Layout 10/100Mbps Ethernet Port USB2.0 9-48 VDC Power Gigabit Ethernet Port USB Console System Ready LED Giga LAN LED LAN LED Serial Port LED RS-485 / RS-232 Ports ARTILA... -
Page 9: Pin Assignment And Definitions
Matrix-700 Hardware Guide 3. Pin Assignment and Definitions 3.1 LED Indicators The LED provides the Matrix-700 operation information. The LED status is described as follow: System Ready LED Giga LAN LED LAN LED Serial Port LED “Ready” (Ready LED indicator): Ready LED keeps ON when system is ready for operating. -
Page 10: Serial Port
Matrix-700 Hardware Guide 3.2 Serial Port The Matrix-700 provide total four RS-485 / RS-232 ports that each port can be configured by software. RS-485 supports automatic direction control (by hardware). RS-485 / RS-232 Ports The pin assignment is shown as following table. -
Page 11: Power Connector
Matrix-700 Hardware Guide 3.3 Power Connector Connecting +9 ~ +48VDC power line to the Power in terminal block. If the power is properly supplied, the Power LED will keep solid green color and a beep will be heard. 3.4 Ethernet LAN Port The Ethernet Port use RJ45 connector.
