  • Page 1 Major 4a English 2.0 Kompetent für Elektroniksysteme...
  • Page 2 Technical Data Control Elements Major 4a General features Rearview Major 4a Sockets pinout Major 4a Connecting Major 4a (5a) --> Two-Way-Radio via multiwire Connecting Major 4a (5a) --> Line Interface LIM-AC Keypad layout in programming mode Menu structure Hardware confi guration...

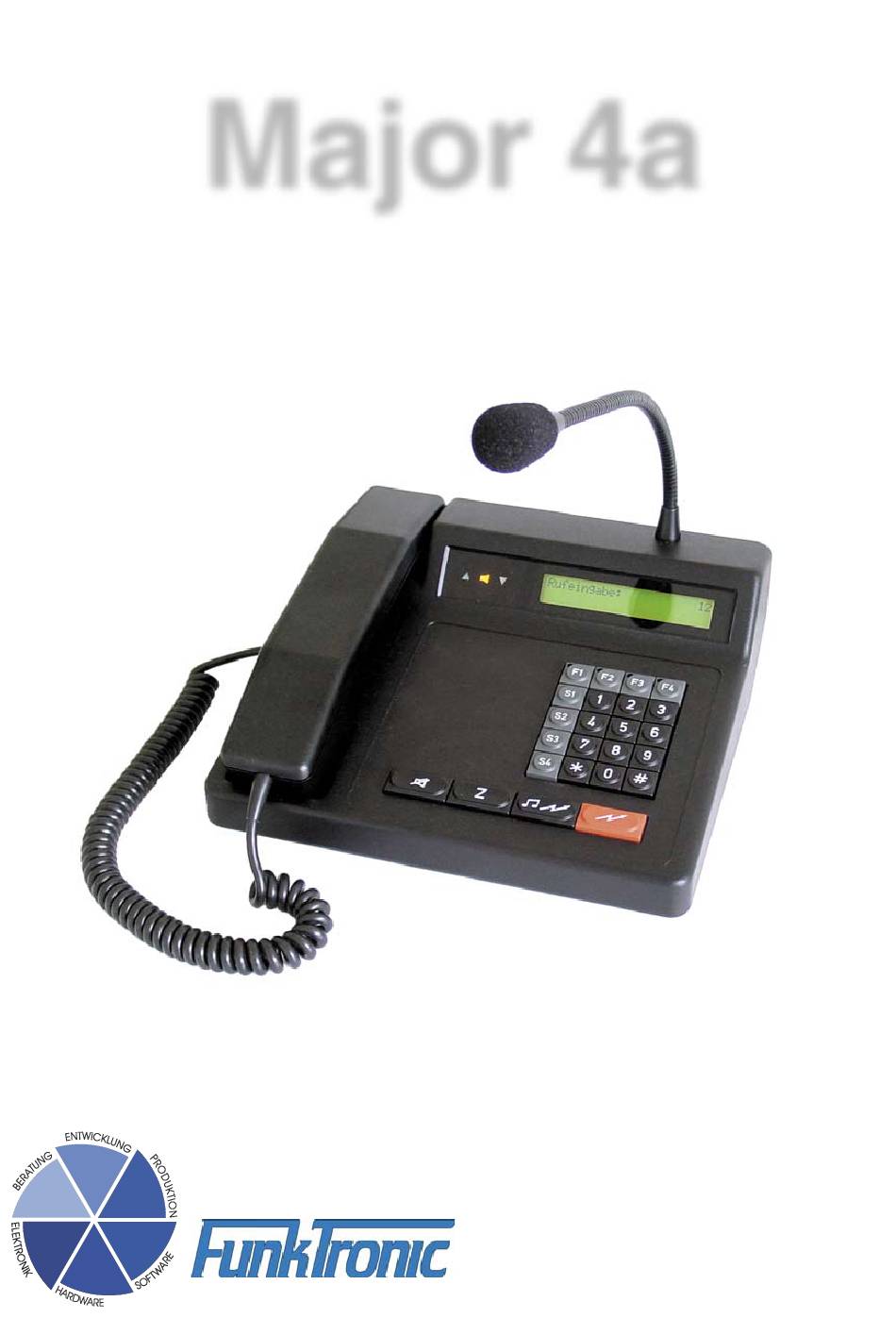

  • Page 3 Loudspeaker button General features The Major 4a is the newer design of the well kown Major 4. The Display was replaced by an alpha- numeric LC Display with background illumination. A gooseneck microphone with high dynamics has come to it. The programming possibilities were essentially widened and strongly simplifi ed by clear text menu structure.
  • Page 4 ST2A Headset 2 Digital outputs Serial interface RS232 PWR Power supply 12V, max. 1,5 A inside positive, outside ground Sockets pinout Major 4a All sockets shown from rear few. Pinout headset 1 + 2, Pinout Radio socket ST1, ST2 and ST2A...
  • Page 5 Connecting Major 4a (5a) --> Two-Way-Radio via multiwire All audio in/outputs of Major 4a (5a) are equiped with transformers. No PINs are grounded, therefore one must be connected to ground at the two-way-radio. We suggest to ground PIN 1 and 8 at the radio.
  • Page 6 : F3 Next menu : F3 ” ” ” È È È Software: Major 4a V1.24 Register: Poti-Nr. (1-6): Date 23.09.04 1 = Input level - put in the register you want 2 = Output level to program - displayed for 3 seconds...
  • Page 7 Menu structure Continuation select number: simultaneously È “ “ “ Æ Æ Æ “ Adjust contrast : F4 Set date/time : F4 Transmit test tone : F4 “ Æ Æ Next menu : F3 Next menu : F3 Next menu : F3 ”...
  • Page 8 Menu structure Continuation select number: simultaneously È “ “ “ Æ Æ Æ “ “ “ Æ Æ Æ Adjust clock : F4 “ Serial number : F4 Æ Next menu : F3 Next menu : F3 ” ” È È...
  • Page 9 Hardware confi guration 2/4-wire confi guration The Major 4a (5a) is for use on 2- or 4-wire line. For 2-wire line jumper 1 have to be set. Remove jumper 1 for 4-wire line. 2-wire confi guration with FT630 For remote control of radio over longer distance it is adviceable to use a 2-wire line with the FT630.
  • Page 10 Key F3 escapes without any changes. ” È Key F4 stores the displayed values. Register: Each button of the Major 4a can be programmed EEPROM programmed with any function. Register 174 and 175 has to È be programmed with the appropriate values of the short call button (Z-Button).
  • Page 11 È programmed in fi rst digit. Register: “ Sample for coding button - È Programming „short bush“: Funk Tronic Major 4a select number: select number: simultaneously Normally there is no programming for long push È of button EEPROM programming : F4...
  • Page 12 Register: Code FFFFF Register: ” “ È È Register: EEPROM programmed Funk Tronic Major 4a È select number: Register: “ È Now bush button one times short and one long. Funk Tronic Major 4a After short bushing the display shows 1.
  • Page 13 Transmitting 6/7/8-tone Channel scanning function sequences The channel scanning function is activated if the waiting time (register 067/5) is different from To transmit a 8-tone sequence, the following zero. coding is necessary. The fi rst 5 digits entered The scanner waits at least for the programmed via keypad and the last 3 are used from register waiting time on each channel.
  • Page 14 Reset to factory defaults The following steps resets the Major to factory defaults. Attention , all parameters reseted without acknowledgement. select number: simultaneously È EEPROM programming : F4 Next menu : F3 ” È Register: È program EEPROM with default values select number: m4a_eng2_0 (09.11.04) - 14 -...
  • Page 15 Sample confi gurations Major 4a (5a) The next sketch shows a simple way for remote control a radio using Major 4a (5a). Only a 7-wire line (Audio, squelch, PTT) is needed if no remote channel control is necessary. Audio, Squelch, PTT max.
  • Page 16 Table of registers Major 4a Register Function Register Function Setting 1 for decoder 1 Short call 0 Short call 1 1. Digit -> wake up tone type Short call 2 = no wake up tone Short call 3 1-A = wake up tone 1 to A...
  • Page 17 Register Function Register Function Setting 2 for decoder 1 Setting of loudspeaker timer 1. Digit -> ID mode 1. Digit = n * 100 sec = 5 tone sequence 2. Digit = n * 10 sec = call sequence -> ID-code 3.
  • Page 18 Register Function Register Function State Remote channel switching 1. Digit 1.-3. Digit 0 = no state Fixed digits remote tone sequence 1 = state with one digit in BCD code 2 = state with two digit 2.+3. Digit Channel register State after switch on Channel after switch on 1.
  • Page 19 Register Function Register Function Setup for channel scanner General setting for decoder 1.+2. Digit=scan starts at channel 1.-3. Digit -> maximum length of EE = array reg. 070-074 remaining tones 1. Digit = n * 500 msec 3.+4. Digit=scan to channel 2.
  • Page 20 Register Function Register Function Group call decoder Setup 1 for FFSK-Emergency call 1. Digit = Group call tone (Reg. 03x) F = Group call off Setup 2 for FFSK-Emergency call 2. Digit = external alarm (Reg. 03x) 0 = off 1-7 = external alarm 8-F = special call tones (call 1/2) 3.
  • Page 21 Register Function Function registers 130-177 Function of 0 button, short push 1. Digit -> Function Function of 0 button, long push Function of 1 button, short push = none Function of 1 button, long push = transmit single tone Function of 2 button, short push = transmit call sequence Function of 2 button, long push = PTT...
  • Page 22 Function 2 --> transmit call sequence Function 3 --> PTT 2. Digit -> type of call 2. Digit -> choose microphone = entered call =PTT uses gooseneck = call back microphone = short call = PTT uses headset = intercom microphone = PTT uses handset 3.
  • Page 23 Funtion 8 --> input state 2. Digit = delete state = set state 3.+4. Digit, new state value area = 00 - 99 FF = input via keypad m4a_eng2_0 (09.11.04) - 23 - Kompetent für Elektroniksysteme...
  • Page 24 Release Notes Manual version 2.0 english released, 09.11.04 New Hard/Software Major 4a released, 16.11.04 m4a_eng2_0 (09.11.04) - 24 - Kompetent für Elektroniksysteme...
