Summary of Contents for FunkTronic Major 4a

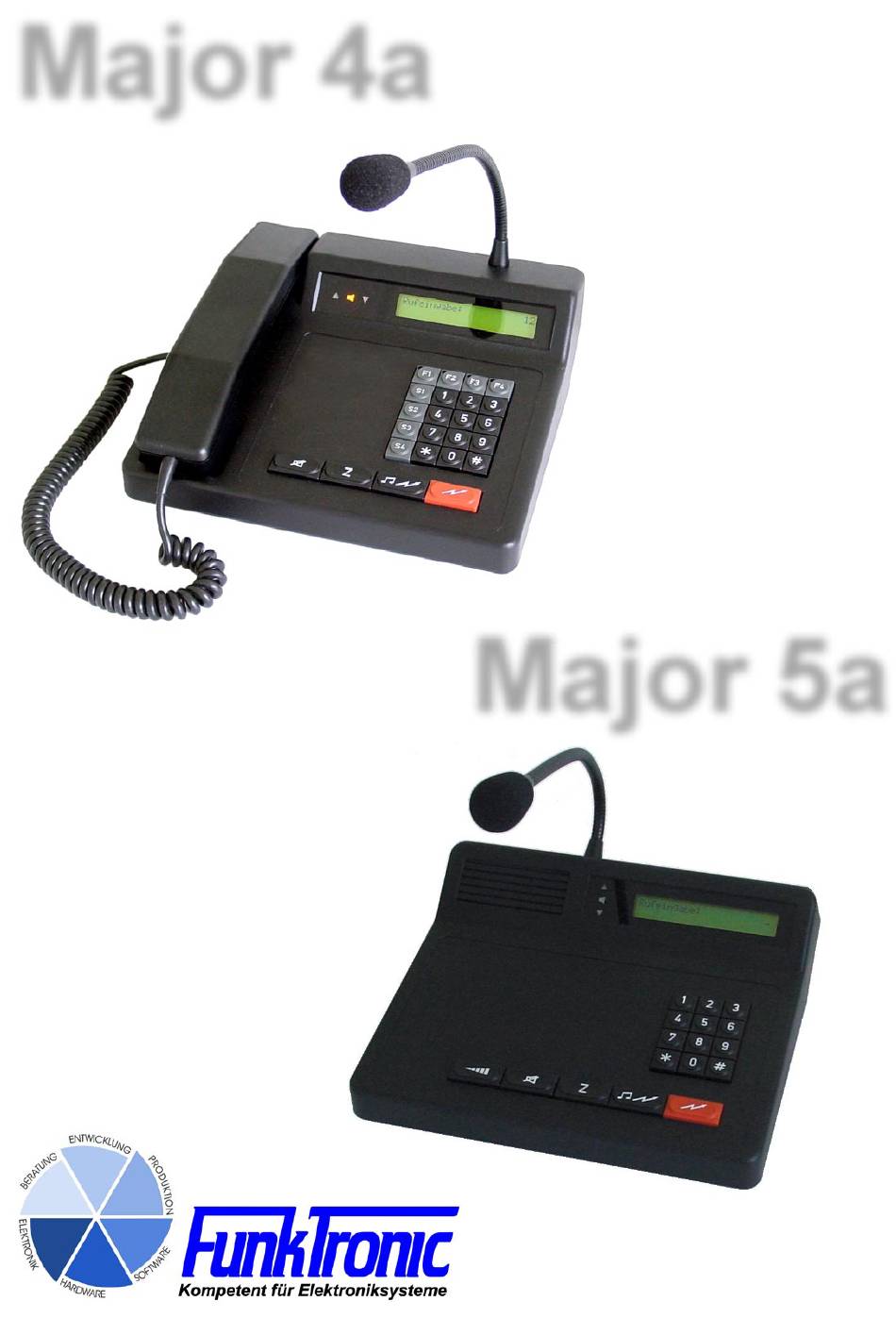

  • Page 1 Major 4a Major 5a...

  • Page 2: Table Of Contents

    Page Order Information General Features Control Elements Major 4a Control Elements Major 5a Keypad Layout Major 4a / 5a in Radio Mode Display Elements Major 4a / 5a Switching of the Loudspeaker (on/off) General Handling Talking to the Radio Volume Settings...

  • Page 3: Order Information

    4a/5a are not included! Major 4a with BOS option 714000 Major 5a Major 5a with option FMS Major 5a with option BOS 900012 Power supply unit (230/12 Volt), suitable for Major 4a and Major 5a m4a5a_v320_eng (14.02.2013) - 3 - Kompetent für Elektroniksysteme...

  • Page 4: General Features

    LED Display. A gooseneck microphone with a high dynamic range is part of the standard equipment of Major 5a as well as Major 4a. By using a plain text based menu structure the programmable features have been extended significantly and at the same time programming has become more straightforward.

  • Page 5: Control Elements Major 4A

    Control Elements Major 4a gooseneck microphone status LEDs handpiece with PTT button LC display function buttons special buttons PTT button short call button call button loudspeaker (LS) button Control Elements Major 5a gooseneck microphone status LEDs loudspeaker LC display volume button...

  • Page 6: Keypad Layout Major 4A / 5A In Radio Mode

    Loudspeaker Display (Incoming Call) The loudspeaker display LED is on, if the loudspeaker or the earphone capsule in the handpiece are switched on. Keypad Layout Major 4a / 5a in Radio Mode Button Major 4a Major 5a 0 to 9...

  • Page 7: Switching Of The Loudspeaker (On/Off)

    (Major 5a) or the loudspeaker button is pressed long (Major 4a). The display now shows „volume:“ and the present value (0-9). Now the new volume can be set via the keypad. The chosen value is saved permanently (also after power-off).

  • Page 8: Programming Mode

    1. different keyboards 2. Major 4a includes a handset, Major 5a does not 3. minor differences in the software, resulting from 1. and 2. 4. optional telephone interface only for Major 4a (permanent line also Major 5a) m4a5a_v320_eng (14.02.2013) - 8 -...

  • Page 9: Menu Structure

    Simultaneuos pressing of the buttons opens the menu. Due to the different keypad designs, for the same operations different keys are used in Major 4a and Major 5a. In the following, the handling of Major 4a is described. For the respective keys that have to be used in Major 5a please consider the table below.
  • Page 10 Menu Structure continued select number: È “ “ “ Æ Æ Æ “ Adjust contrast : F4 “ Set date/time : F4 Transmit test tone : F4 Æ Æ Next menu : F3 Next menu : F3 Next menu : F3 ”...
  • Page 11 Menu Structure continued select number: È “ “ “ Æ Æ Æ “ “ “ Æ Æ Æ Adjust clock : F4 “ Serial number : F4 Æ Next menu : F3 Next menu : F3 ” - displayed for 3 seconds È...

  • Page 12: Programming Example

    With button F4 the displayed value is programmed. As every button of the Major 4a/5a is freely programmable, the registers 174 and 175 for the Z-button have to be programmed with the right values. As this already is the case in the factroy defaults, this step is not necessary.

  • Page 13: Transmit 3-7-Tone Sequence

    Tone Call Encoder Transmitting 5-Tone Sequences For the transmission of 5-tone sequences it can be configured which tones are set by manual input and which ones are preset (see Table of Registers, register 010). Example: 5-tone sequence 5-tone sequence with the following properties are to be sent: digit: tone 9 digit: tone 8 digit: manual input via keypad...

  • Page 14: Transmission Of Double Sequences

    Transmission of Double Sequences Double sequences can be transmitted as 3-7-tone double sequences (see 3-7-tone sequence). The number of tones is set in register 081 (digit 6). The break or an alternative coupling tone between the two tone sequences is programmed with the call button (register 172).

  • Page 15: Transmission Of 6-, 7-, 8-Tone Sequences

    Transmission of 6-, 7-, 8-Tone Sequences This is another possibility to transmit tone sequences of varying length (see Table of Registers, re- gister 010). The 6-,7-,8-tone sequences (register 010: digit 8 is coded with 3,4 or 5) are composed by a 5-tone sequence from register 010 and the additionally necessary digits from register 015. These additional digits correspond to the own ID-code.

  • Page 16: Decoder

    Decoder Major 4a/5a contains 10 decoders that are freely programmable by 3 registers for each of the de- coders (see Table of Registers, registers 020-049). If the Major is set to factory defaults, an alarm tone signalizes a decoded call. Furthermore, the loudspeaker is activate, its LED flashes, the alarm output (switching output 7) is switched and the standard acknowledgement is sent (only decoder 0, all the others are not active).
  • Page 17 Example 1: decode 5-tone sequence 9867x The first decoder is to decode the tone sequence 9867x, i.e., for the 5 digit arbitrary tones should be accepted. The first decoder is programmed in registers 020, 030 and 040. Register 020 9867FFF1 digit are the 4 invariable digits of the tone sequence (9867) digit is arbitrary and hence coded with an F.
  • Page 18 Example 3: decode double sequence In this example a 5-tone double sequence is to be decoded that consists of call and a following ID code. Decoding is performed in decoder 3 (registers 022, 032, 042). The invariable digits of the 5-tone sequence for the ID code usually is identical to the own ID code (as in register 015).

  • Page 19: Id Code Memory

    ID code memory The key tones for ID decoding and ID code memory are programmed in register 016 for all decoders. The first 7 digits of register 016 contains the tone sequence that has to be decoded for the ID code memory.

  • Page 20: Ffsk Mode

    FFSK mode Major 4a can be used in mixed networks, where FFSK and common tone sequence signalling (see Transmitting 5-Tone Sequences) are to be used simultaneously. Therefor, a FFSK-decoder/ encoder is active in addition to the tone-decoder/encoder. Composition of a Telegram The call telegram starts with an unmodulated carrier that has to be present at the receiver for at least 25 ms.
  • Page 21 Status The status of the call is programmed in register 054 (digit 3). For decoding the status is not important. All values are accepted. Producer Identification and Call Digits 4 and 5 (producer identification) and 6-8 (call) are combined by the Major and treated like a 5-tone sequence.
  • Page 22 FFSK Encoder The 5 digits of the producer identification and the call (4 digit in the 8-digit FFSK telegram) are treated in the same way as for 5-tone telegrams. The digits that should not be entered via the keypad are invariably coded. Invariable digits can be located anywhere throughout these 5 digits. Hence, it is also possible to invariably set digits 4, 6 and 8 of the FFSK telegram.

  • Page 23: Individual Programming Of The Buttons

    Individual Programming of the Buttons All buttons of the Major 4a/5a are freely programmable. The numeric keys, the * and # keys as well as the function buttons for volume (only Major 5a), loudspeaker, short call, call and PTT are programmed ex factory for the respective tasks.
  • Page 24 È Register: È EEPROM programmed È EEPROM programming : F4 Next menu : F3 Register: ” “ È È Register: Funk Tronic Major 4a È select number: Register: Code 50100000 m4a5a_v320_eng (14.02.2013) - 24 - Kompetent für Elektroniksysteme...
  • Page 25 È È Register: EEPROM programmed È EEPROM programming : F4 Next menu : F3 ” Register: È “ È Register: Funk Tronic Major 4a È select number: Register: Code 20100000 m4a5a_v320_eng (14.02.2013) - 25 - Kompetent für Elektroniksysteme...

  • Page 26: Inputs / Outputs

    Example: Cross-Mute function If two Major 4a/5a control sets are situated next to each other it might be desired to mute the loudspeaker of the respective inactive Major. Hence, if one Major is used for conversation, the other one is muted.

  • Page 27: Alarm Signals Ft634Ac => Major 4A/5A

    Alarm Signals FT634aC => Major 4a/5a Up to 3 alarms can be transmitted from an FT634aC to a Major 4a/5a. The FT634aC transmits transmits any change of the alarm switching contacts to the major immediately. If no acknowledge- ment is received, 3 repetitions are transmitted. If again no acknowledgement was received, trans- mission is retried after a minute.
  • Page 28 Major 4a/5a: Register 075: digit 1-4: tone sequence for alarm notification (ABC0) digit 5: PTT for acknowledgement/request 5 = with pilot-tone 6 = without pilot-tone 7 = without pilot-tone, without TX Register 076: configuration for alarm decoder digit 1: type of alarm tone...

  • Page 29: Option Fms

    Reset to Factory Defaults Using the following steps, Major 4a can be reset to factory defaults. Attention! All parameters are reset to the default values without further confirmation. select number: È EEPROM programming : F4 Next menu : F3 ”...

  • Page 30: Sockets Pinout Major 4A/5A

    ST2A PWR operating voltage 12V, max. 1,5 A inside: positive terminal, outside: GND Sockets Pinout Major 4a/5a All of the schemes show the sockets as viewed from the rear of the Major. There are two sockets for connecting a headset.

  • Page 31: Rs232 Interface

    RS232 Interface RS232 Interface RS232 Cable for Flashing/Printing/Monitoring RS232 25pin connector on computer RS232 socket on Major Pinout RS232 ST4 TxD RS232 RxD RS232 Configuration of the RS232 Interface 9600 Baud, 8 data bits, no parity, 1 stop bit, no protocol RS232 9pin connector on computer RS232 socket on Major Pinout...

  • Page 32: Sample Configurations Major 4A/5A, Dc Controlled

    Sample Configurations Major 4a/5a The following situation shows the easiest way for remote radio control using a Major 4a/5a. If a remote control is not required, a 7-wire line is sufficient for AF, squelch and PTT. AF, squelch, PTT max. 8...

  • Page 33: Sample Configurations Major 4A/5A, Ac Controlled

    2 x FT630-2, only if carrier FT630-2, only if carrier signaling is to be transmitted! signalingis to be transmitted! FT630-2 without remote channel control Sample Configurations Major 4a/5a, AC controlled or 4 FT634aC oder LIM-AC (only 2-wire) FT634aC (with remote channel control) or FT634 (without remote channeln control) Several control panels in parallel circuit -->...

  • Page 34: Sample Configurations With Telephone Interface

    Major 4a can be equipped with an optional telephone interface. Now the major can be connected to to the telephone network or an interphone system via an ordinary (analogous) telephone connection. This is achieved with a common RJ11 telephone socket at the rear of Major 4a. Now, the following additional features are available:...

  • Page 35: Two-Wire Connection Using Ft630

    Hardware Configuration Two/Four-Wire Configuration The Major 4a/5a can be configured for 2-wire and 4-wire connection. Starting with software version 2.0 switching from 2-wire to 4-wire is done by programming register 051/4. Two-Wire Connection using FT630 Over longer distances the radio set can be controlled via a 2-wire line. If PTT is keyed at the Major, a DC voltage is applied to the line in addition to the audio signal.

  • Page 36: Connecting Major 4A/5A --> Two-Way-Radio Via Multiwire

    Connecting Major 4a/5a --> LIM-AC The LIM-AC can be connected to Major 4a/5a with a 8-terminal line. Commercially available computer cables may be used. For this, Major 4a/5a must be set to 4wire mode (factory default in reg. 051/4) m4a5a_v320_eng (14.02.2013) - 36 - Kompetent für Elektroniksysteme...

  • Page 37: Telephone Interface

    Telephone Interface A Major 4a/5a with telephone interface is able to perform the following operations: - control a distant radio set via a FT635ÜLE SL module (pseudo-permanent line) only Major 4a - dial switching of telephone connections to radio (manually oder automatically)
  • Page 38 Handling of the Component Group The telephone interface consists of the carrier board and the attached TIM module. Please pay attention to the orientation while mounting the TIM, so that the connectors are not confused. The gap at the upper left corner of the TIM has to be directly above that of the carrier board. The edge-on view shows the positions of the connectors.
  • Page 39 The telephone interface, built into the Major: m4a5a_v320_eng (14.02.2013) - 39 - Kompetent für Elektroniksysteme...

  • Page 40: Telephone Mode (Optional)

    Telephone Mode (optional) Major 4a can be used for manual and automatic switching between radio and telephone network. Therefor, it has to be furnished with the option telephone interface. Connection and Dial-Mode The connection to the telephone network is, as usually, established with a telephone cable with RJ11 plugs.

  • Page 41: Manual Forwarding

    Telephone Mode (optional) The operator of the Major 4a can initiate and receive phone calls at any time (given that no automatically established connection exists already). ” Initiate Call button È display Telefonnummer eingeben compose number 012345 Telefonnummer eingeben È...

  • Page 42: Dial-Up - Telephone => Radio

    Dial-Up - Telephone => Radio Reg. Function . digit: T11-55 on connection establishment fromtelephone to radio y/n (1/0) . digit: number of ringing signals until line is occupied Automatic Connection - Telephone => Radio An incoming phone call automatically occupies the line after N ringing signals. Two signal tones are sent to the telephone (interval of 1 s).

  • Page 43: Automatic Forwarding With Dtmf - Telephone => Radio

    Automatic Forwarding with DTMF - Telephone => Radio The automatic forwarding is a special case of Direct Dialing with DTMF. here, all digits of the tone sequence are preset. an incoming phone call results in the automatic occupation of the line after N ringing signals.

  • Page 44: Direct Dialing With Tone Sequence - Radio => Telephone

    Short Dialing - Radio => Telephone The Major 4a TIM exhibits a short dial memory of 1000 storage locations (000-999) à 16 digits. For short dialing the tone sequence must be a 3-digit short dial number, so that the digits of the respective storage location is chosen.

  • Page 45: Short Dial Memory

    Short Dial Memory The short dial memory contains 1000 storage locations with a maximum of 16 digits each. It can be read and programmed using the keypad or via the RS232 interface. Programming with the Keypad For programming the short dial memory the Major must be in telephone mode, which is activated using button ”.
  • Page 46 Maximum Transmission Time (Simplex) If the maximum transmission time is reached, e.g. due to heavy noise in the telephone line, the phone call is terminated automatically. The maximum transmission time can be adjusted from 1 to 990s or deactivated with ‘0‘. Ex factory it is set to 45s. Reg.

  • Page 47: Mode Of Operation

    Mode of Operation Major 4a with TIM supports 3 different modes of operation for transmitter control: simplex (vox), simplex (carrier) and duplex. In simplex (vox) mode the voice from the telephone and the radio is analyzed. If transmission is active in one way, it remains activated as long as a voice is present. Only after a certain time without voice, transmission in the other way can be activated.

  • Page 48: Configuration Examples

    Both texts can be given to the telephone participant as voice messages during the connection establishment. Reg. Function digit: voice message (text 1) at dial-up telephone => radio digit: voice message (text 2) at dial-up radio => telephone for both digits: 0 = no voice message, 1 = no AF from radio can be heard during the voice message 2 = AF from radio can be heard during the voice message...

  • Page 49: Dial Tone Recognition

    3. 5-Tone Sequences with Car Numbers and Telephone Numbers (Direct Dial with Tone Sequences abd DTMF) - calling a car: 12100-12109 and 12130-12198, 2-digit input - phone numbers: 12110-12129, extension line: 510-529 - dialing any phone number with 12199 followed by DTMF call - register 320 = 12199FFF: decodes all tone sequences starting with 12199 - register 330 = 51010000: 1 digit: decoding 5-tone sequence...
  • Page 50 Busy Signal Recognition If a busy signal is detected, an existing radio => telephone connection is always terminated. Hence, the conversation is aborted when the telephone participant hangs up. Otherwise, in simplex mode the busy signal would result in PTT keying until time-out occurs. In the section „Dial Tone Configuration“ several busy signals are noted that are already programmed ex factory.

  • Page 51: T11-55

    As a coding example the dial tones, which are set ex factory are described: register content type tone length break length 11004000 call connected 11005000 call connected 20400400 busy 400ms 400ms 00400400 continuation 400ms 400ms 20500500 busy 500ms 500ms 00500500 continuation 500ms 500ms...

  • Page 52: Table Of Registers Major 4A/5A

    Table of Registers Major 4a/5a Reg. Function Reg. Function short call 0 digit: pressing *+# (or F1+F4) is neces short call 1 sary for n*1s to enter programming short call 2 mode short call 3 0 = immediately short call 4...
  • Page 53 Reg. Function Reg. Function configuration 2 für decoder 4 loudspeaker (LS) configuration configuration 2 für decoder 5 digit: LS timer: nnn * 1s configuration 2 für decoder 6 (000=no timer, FFF=open mode) configuration 2 für decoder 7 digit: M4a: LS status on taking earphone configuration 2 für decoder 8 0 = off configuration 2 für decoder 9...
  • Page 54 Reg. Function Reg. Function channel range from which to choose general configuration digit: lowest channel number nn digit: TX pre-running time nn * 10ms digit: highest channel number nn digit: key beep 0 = off configuration for channel control 1 = on digit: digit: FFSK ID-code at the 0 = no channel selection...
  • Page 55 Reg. Function Reg. Function pilot-tone configuration emergency call ZVEI digit: digit: number of tone bursts to decode 0= programmed pilot-tone frequency : minimum burst length (nn*5ms) 1= TRC : maximum burst length (nn*5ms) with programmed pilot-tone frequency configuration 6 tone emergency call NL 2= DC without pilot-tone digit: maximum tone length of the 6 digit: pilot-tone frequency (nnnn Hz)
  • Page 56 Reg. Function Reg. Function configuration 1 for group call decoder configuration 2 FFSK (ZVEI) digit: group call tone digit: FFSK - emergency call activated F = disables group call decoder 0= no digit: switching output 1= with CMO (‘F‘) 0 = none 1-7 2= mit CMO (‘F‘) and reg.
  • Page 57 Reg. Function Reg. Function In registers 108 to 129 the functions of the function S1-button short inputs are programmed. Every input has two function S1-button long functions: one upon activation (passive => function S2-button short active) and one upon deactivation (active => function S2-button long passive).

  • Page 58: Programmable Functions

    Programmable Functions Reg. Function function LED in F1 Programmable functions for buttons and inputs: function LED in F2 The first digit of the respective register contains function LED in F3 one of the following functions. The additional function LED in F4 digits define the function in detail.
  • Page 59 digit: 2: transmit call digit: 3: PTT digit: 4: transmit external short call digit: 0-7: starts PTT digit: 0-E: transmit short call n digit: 0: no ID-code at PTT start 4: transmit short call (5 digit) digit: 2: transmit call digit: 0: no ID code at PTT end digit: 5: transmit channel remote call 4: transmit short call (5...
  • Page 60 Function 7 (input calling tone): Function 5 (channel selection / switching outputs): in normal mode: digit: 7: input of calling tone digit: 5: channel selection digit: 0: delete input digit: 00-99: channel nn 1: new input FE: working channel 2: input of complete call FF: input digit: 7: input of calling tone digit: 5: switching outputs...
  • Page 61 Function 8 (status input): Function B (MODE Functionen): in normal mode: digit: B: mode switching digit: 8: status input digit: 0: normal mode digit: 0: delete status 1: telephone mode 1: set status F: standby digit: 8: status input digit: B: mode switching digit: 1: set status digit: 0: activate normal mode digit: 00-99: set status...

  • Page 62: Reset To Factory Defaults

    Reset to Factory Defaults Reg. Function 222 restore factory defaults 223 restore factory defaults including potentiometer settings Attention!! factory defaults are restored without further confirmation m4a5a_v320_eng (14.02.2013) - 62 - Kompetent für Elektroniksysteme...

  • Page 63: Table Of Registers Telephone Interface V1.10

    Table of Registers Telephone Interface V1.10 Reg. Function Reg. Function 310 transmission time limit short dial (SD) (2 digit = 2) digit: transmission time limit of digit nnn*1s during a telephone conversation hundreds of the SD number are stored in digit (0 = default) 320 decoder 1 digit 321 decoder 2...
  • Page 64 Reg. Funktion Reg. Funktion 361 direct dial with DTMF (telephone => radio) at night mode: telephone => radio digit: tone sequence, digits with an F digit = 4) are entered at the telephone digit: digit: 0: night mode off start call with end-button # y/n (1/0) 1: night mode on 2: change night mode status as defined 362 night mode (tel =>...
  • Page 65 Reg. Funktion Reg. Funktion 366 configuration telephone mode 380 register for dial tone decoder digit: digit: tolerance for dial tone decoder nnn * 1s max. transmission time in n * 3.125% simplex mode digit: tone duration for decoding of a digit: dialing mode permanent tone: nnn * 10ms 0 = pulse, 1 = DTMF...

  • Page 66: Register In The Tim (Telephone Interface Module)

    Register in the TIM (Telephone Interface Module) Reg. Function Reg. Function 611 durations for pulse dialing DTMF encoder/decoder digit: pulse dialing lead time: 600 durations for DTMF encoder nnnn*5ms digit: DTMF tone duration: nnnn*5ms digit: pulse dialing follow-up time: digit: DTMF break duration: nnnn*5ms nnnn*5ms 601 durations for DTMF encoder...
  • Page 67 Reg. Function Reg. Function digit: ringing threshold 652 pilot-tone decoder (from the telephone) 0 = 10/20V digit: frequency of pilot-tone filter 1 = 12.5/25V 0 = no filter 2 = 15/30V 1 = 3300Hz 3 = 20/40V) 2 = 3000Hz digit: line-in-use threshold 3 = 2800Hz 0 = 22.5+/-7.5...

  • Page 68: Telephone Interface V1.01, Standard Keypad Layout In Telephone Mode

    Telephone Interface V1.01, Standard Keypad Layout in Telephone Mode in normal mode F4 start telefone mode - do not delete last call - forwarding unchanged in telephone mode short: toggle forwarding <==> telephone (on/off) short: start radio mode - do not delete last call - telephone on hold 0 - 9 short: dial number 0 - 9 0 - 9...

  • Page 69: Technical Data

    Technical Data operation voltage 12 V current uptake max. 800 mA weight 1.5 kg dimensions W x D x H (without GN microphone) 245 x 220 x 95 mm input impedance 2-wire/4-wire 600 ohm input level 4-wire 50 mV (-24 dBm) to 775 mV (0 dBm) input level 2-wire 70 mV (-21 dBm) to 1050 mV (+2,5 dBm) output impedance 2-wire/4-wire...

  • Page 70: Returning Of Old Equipment

    November 2005, the purchasers or users are obliged to return old equipment produced by us free of cost. FunkTronic GmbH will dispose of this old equipment at its own expense according to regulations.

  • Page 71: Release Notes

    Release Notes 14.02.2013 - Translation of German manual dated from 29 March, 2012 m4a5a_v320_eng (14.02.2013) - 71 - Kompetent für Elektroniksysteme...
