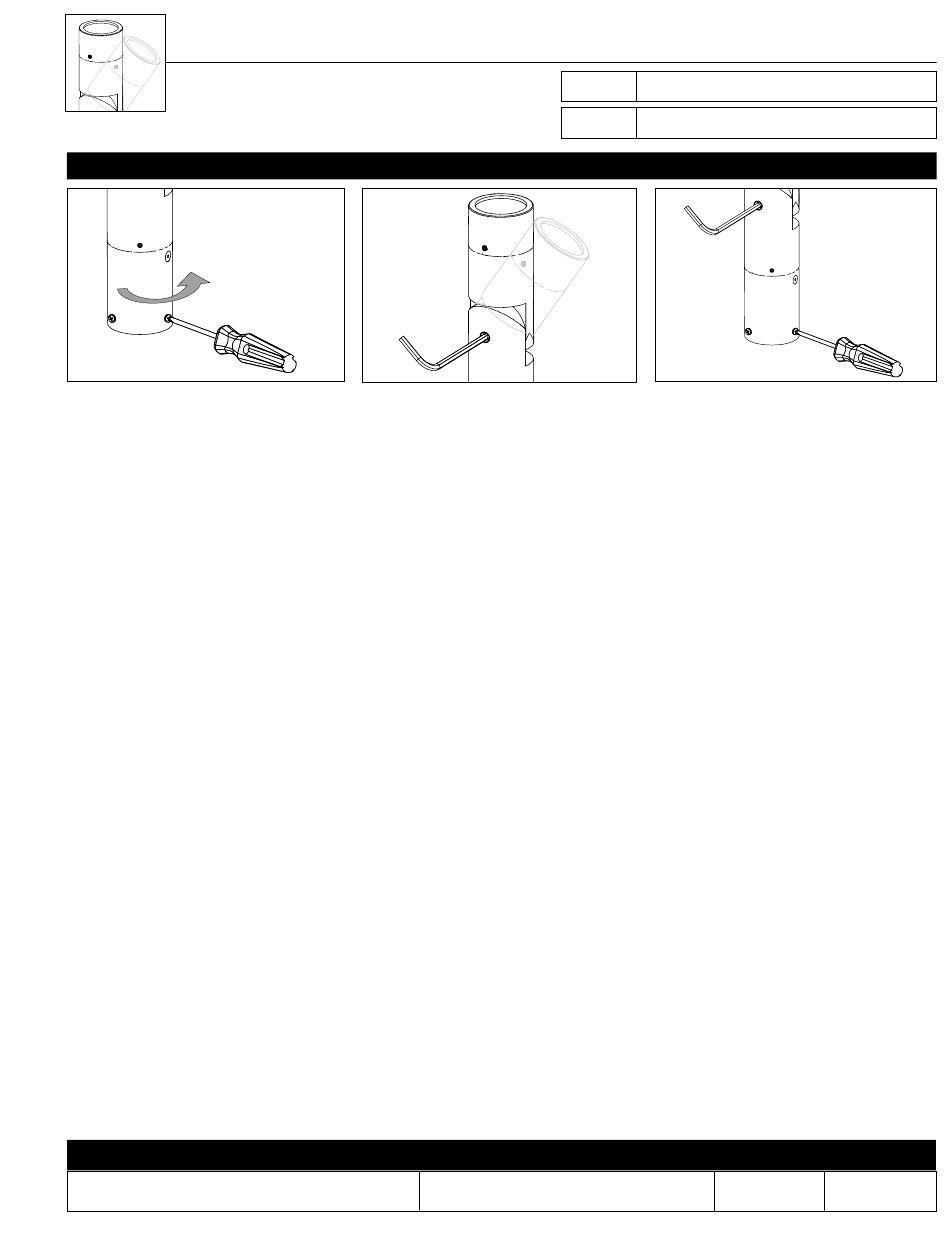

Standard Adjustment
ArtiStar™ Knuckle - Power Pipe™ Option
1. Use Phillips screwdriver to loosen (3) #8-32 stainless
steel round head Phillips screws at base. Rotate
fixture at base and aim fixture to desired horizontal
location.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
2. Use 3/16" Allen wrench to slightly loosen ¼"-28
stainless steel black oxide socket head cap screw at
the knuckle for vertical aiming purposes.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar™ Mounting System
PROJECT:
TYPE:
3. Tighten the three (3) #8-32 screws on base with
appropriate tool for mounting method and stainless
steel locking screw at the knuckle to secure all
aiming positions.
RELEASED
2-6-14
REFERENCE NUMBER
INS-2098-00
