Standard Anchor Base Installation
Installation Instructions

Fixture Installation

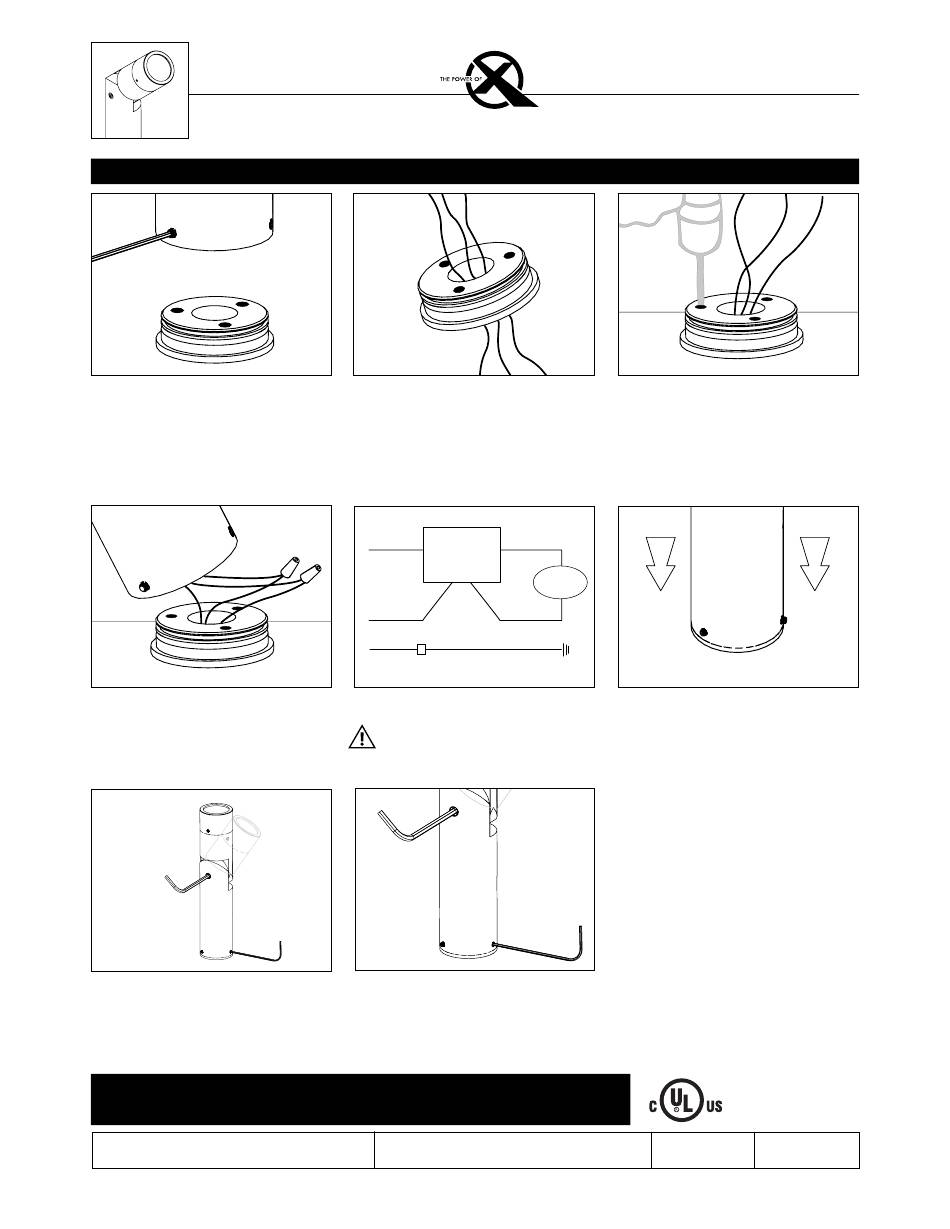

1. Study anchor base plan. Prepare mounting
surface for anchor base.
2. Use 5/64" Allen wrench to loosen three (3)
#8-32 stainless steel set screws (do not remove
stainless steel set screws from fixture base).
Remove anchor base from bottom of fixture.
5. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in fixture body. See wiring
diagram.
7. Use 3/16" Allen wrench to slightly loosen
¼"-28 stainless steel black oxide socket head
cap screw at the knuckle for vertical aiming
purposes. Rotate fixture at base and aim fixture
to desired horizontal location.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
3. Pull branch circuit wiring necessary for
installation (By Others). Feed branch circuit
wiring through anchor base.
LINE (+)
POWER
SUPPLY
COM (-)
GROUND GROUND IN HOUSING

WIRING DIAGRAM

WIRING DIAGRAM
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
8. Tighten the three (3) #8-32 stainless steel set
screws on anchor base and ¼"-28 stainless
steel locking screw at the knuckle to secure all
aiming positions.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar™ Integral
4. Secure anchor base to solid surface (i.e. wood,
concrete) using appropriate hardware for
specific surface.
FIXTURE
6. Place fixture onto mounted anchor base and
press straight down until the two pieces are
flush with each other.
RELEASED
1-18-17
Solid State LED
REFERENCE NUMBER
INS-2119-00
