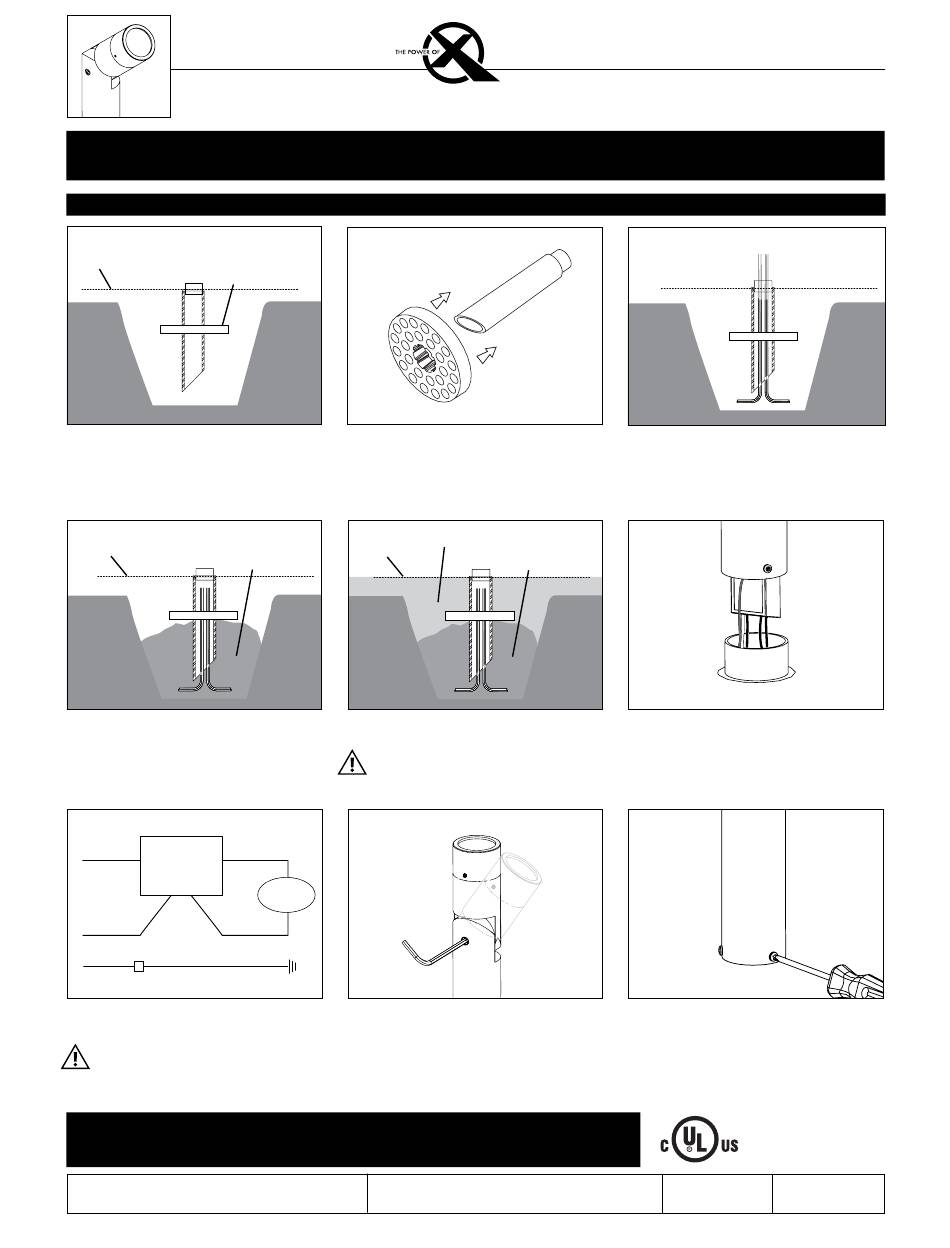

B-K lighting ArtiStar Integral Installation Instructions Manual page 4

DRIVER HOUSING MUST BE INSTALLED ABOVE GRADE. POWER PIPE™ IS LABELED AT GRADE LEVEL.
Power Pipe Mounting Option
Optional
Finished grade
Concrete
Stability Flange
Finished grade
Finished grade
1. Excavate trench according to designed lighting
plan. Dig hole a minimum of 18" deep and 10"
wide to accommodate Power Pipe™ at desired
fixture location(s).
Finished grade
Remote
12V
Transformer
(by others)
4. Back fill with pea gravel or sand prior to pour.
FIXTURE
COM
LINE
POWER
SUPPLY
Stability Flange
COM
GROUND GROUND IN HOUSING
WIRING DIAGRAM
WIRING DIAGRAM
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Above Ground
B-K LIGHTING
Installation
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Installation Instructions
DRIVER HOUSING INSTALLED BELOW GRADE WILL VOID WARRANTY
Pea gravel or sand
Stability Flange
2. Slide optional Stability Flange onto Power
Pipe™. Use optional Stability Flange to aid in
installation of Power Pipe™.
Finished grade
Pea gravel or sand
5. Pour concrete (By Others).
Label on Power Pipe™ indicates installation
depth with finished grade.
(+)
Finished grade
FIXTURE
(-)
Pea gravel Pea gravel
or sand or sand
7. Insert wires, connectors and driver into fixture
base and attach to Power Pipe™. To aim fixture,
use 3/16" Allen wrench to slightly loosen ¼"-28
stainless steel black oxide socket head screw at
the knuckle for vertical aiming purposes. Rotate
fixture to aim to desired horizontal location.
Concrete
Pea gravel Pea gravel
Finished grade
Concrete
Pea gravel or sand
Pea gravel or sand
Above Ground
Installation
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar™ Integral
Solid State LED
Pea gravel or sand
3. Pull branch circuit wires necessary for
installation (By Others) through Power Pipe™.
Allow for additional cable to make connections
to fixture lead and future service. Place Power
Pipe™ in hole. Do not cut PVC.
6. Use waterproof wire connectors (By Others) to
connect driver primary leads to branch circuit
wires. Connect incoming ground to ground
wire provided in fixture body. See wiring
diagram.
Concrete
Pea gravel Pea gravel
or sand or sand
8. Tighten three (3) #8-32 stainless steel round
head Phillips screws at base and 1/4"-28
stainless steel black oxide socket head screw at
the knuckle to secure all aiming positions.
Below Ground
Installation
RELEASED
1-18-17
Concrete
Pea gravel Pea gravel
REFERENCE NUMBER
INS-2120-00
