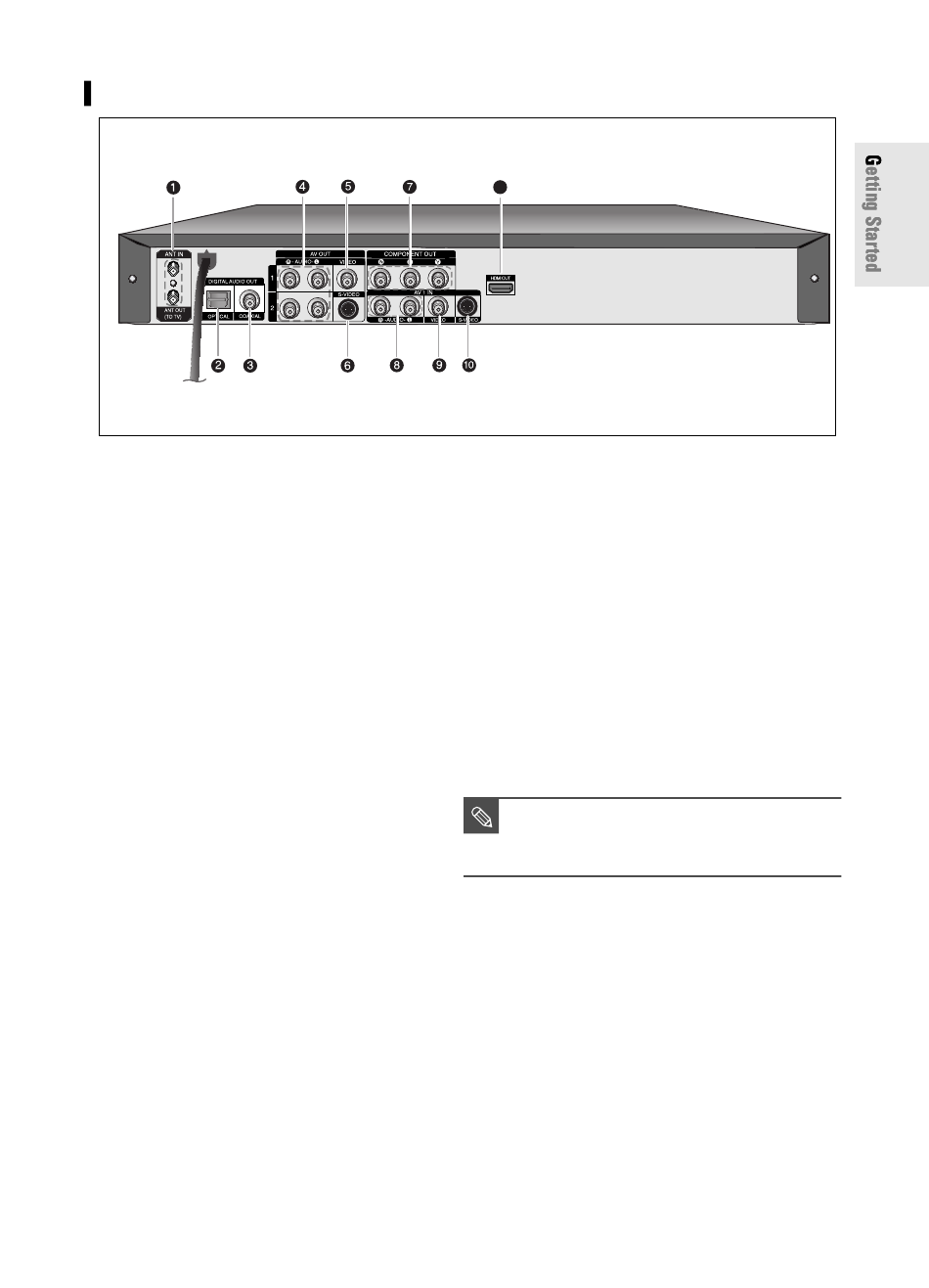

Rear Panel

1. ANT IN/ANT OUT (TO TV)
Connect antenna cables.
2. DIGITAL AUDIO OUT(OPTICAL)
Connects to an amplifier having a digital optical
audio input jack.
3. DIGITAL AUDIO OUT(COAXIAL)
Connects to an amplifier having a digital coaxial
audio input jack.
4. AV AUDIO OUT
Connects to the audio input of external equipment
using audio cables.
5. AV VIDEO OUT(good video quality)
Connects the input of external equipment using a
Video cable.
6. AV S-VIDEO OUT(better video quality)
Connects the input of external equipment using an
S-Video cable.
11
7. COMPONENT VIDEO OUT(excellent video quality)
Connect to equipment having Component video
input jacks.
8. AV 1 AUDIO IN
Connects the output of external equipment using
audio cables
9. AV 1 VIDEO IN
Connects the output of external equipment using a
video cable.
10. AV 1 S-VIDEO IN
Connects the output of external equipment using
an S-Video cable.
11. HDMI OUT(best video quality)
Connects the input of external equipment using a
HDMI cable.
The Antenna connection does not pass
s
audio/video signals. To watch a DVD on your
NOTE
TV, you must connect audio/video cables.
English - 15
