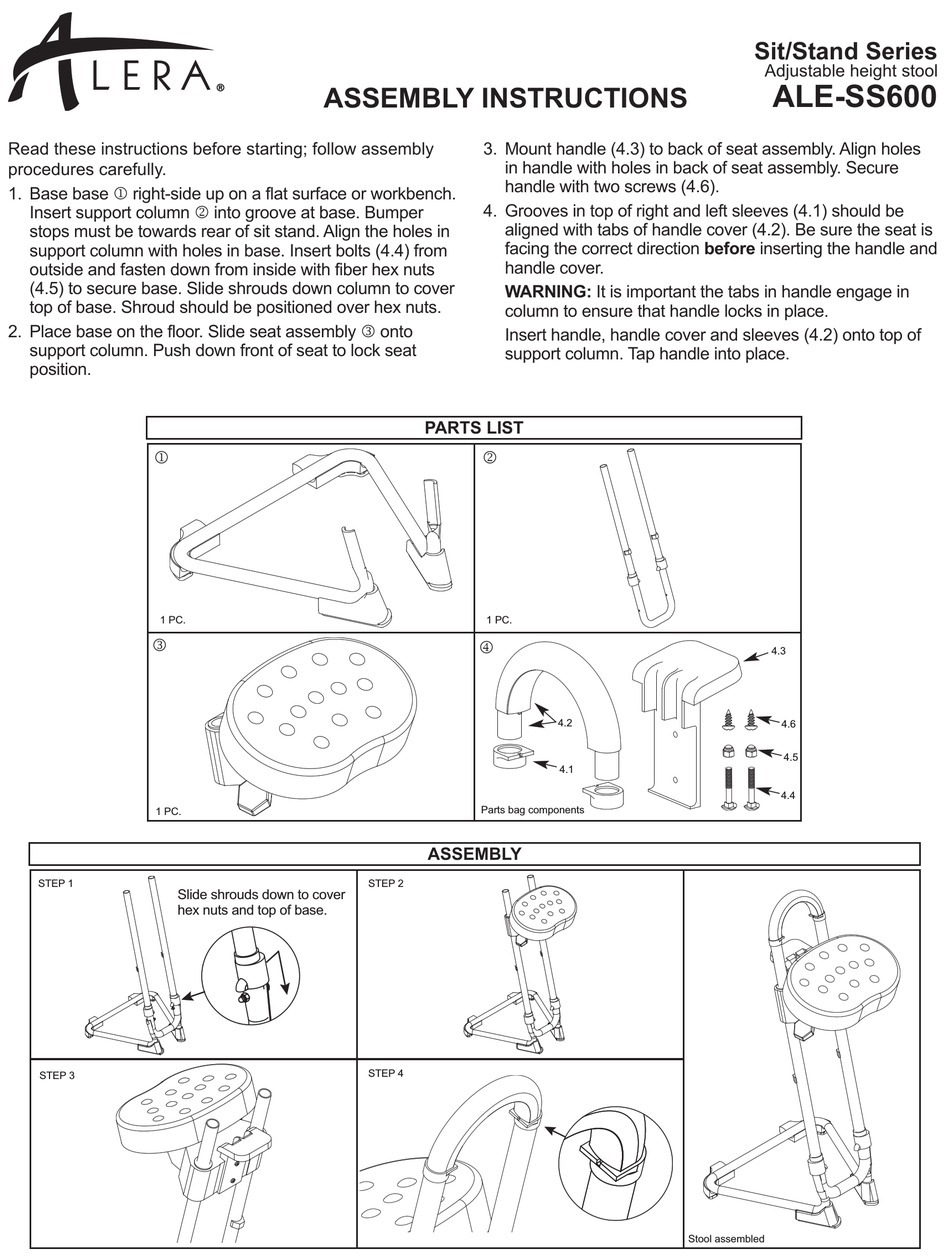

Alera ALE-SS600 Assembly Instructions

Read these instructions before starting; follow assembly
procedures carefully.
1. Base base right-side up on a flat surface or workbench.
Insert support column 2 into groove at base. Bumper
stops must be towards rear of sit stand. Align the holes in
support column with holes in base. Insert bolts (4.4) from
outside and fasten down from inside with fiber hex nuts
(4.5) to secure base. Slide shrouds down column to cover
top of base. Shroud should be positioned over hex nuts.
2. Place base on the floor. Slide seat assembly 3 onto
support column. Push down front of seat to lock seat
position.
1 PC.
3
1 PC.
STEP 1
Slide shrouds down to cover
hex nuts and top of base.
STEP 3
ASSEMBLY INSTRUCTIONS
3. Mount handle (4.3) to back of seat assembly. Align holes
4. Grooves in top of right and left sleeves (4.1) should be
PARTS LIST
2
1 PC.
4
Parts bag components
ASSEMBLY
STEP 2
STEP 4
in handle with holes in back of seat assembly. Secure
handle with two screws (4.6).
aligned with tabs of handle cover (4.2). Be sure the seat is
facing the correct direction before inserting the handle and
handle cover.
WARNING: It is important the tabs in handle engage in
column to ensure that handle locks in place.
Insert handle, handle cover and sleeves (4.2) onto top of
support column. Tap handle into place.
4.2
4.1
Sit/Stand Series
Adjustable height stool ALE-SS600
4.3
4.6
4.5
4.4

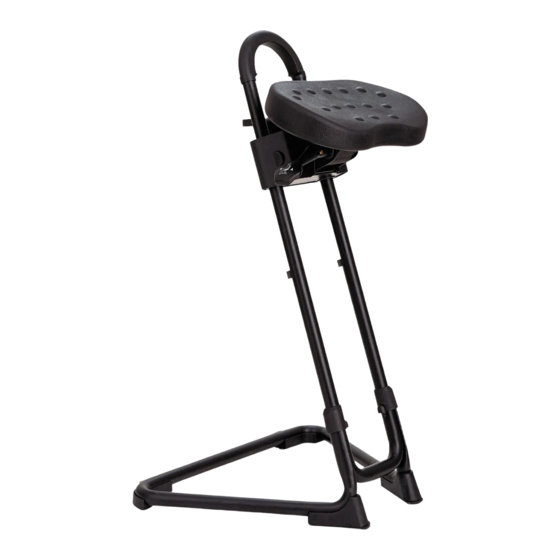

Stool assembled
