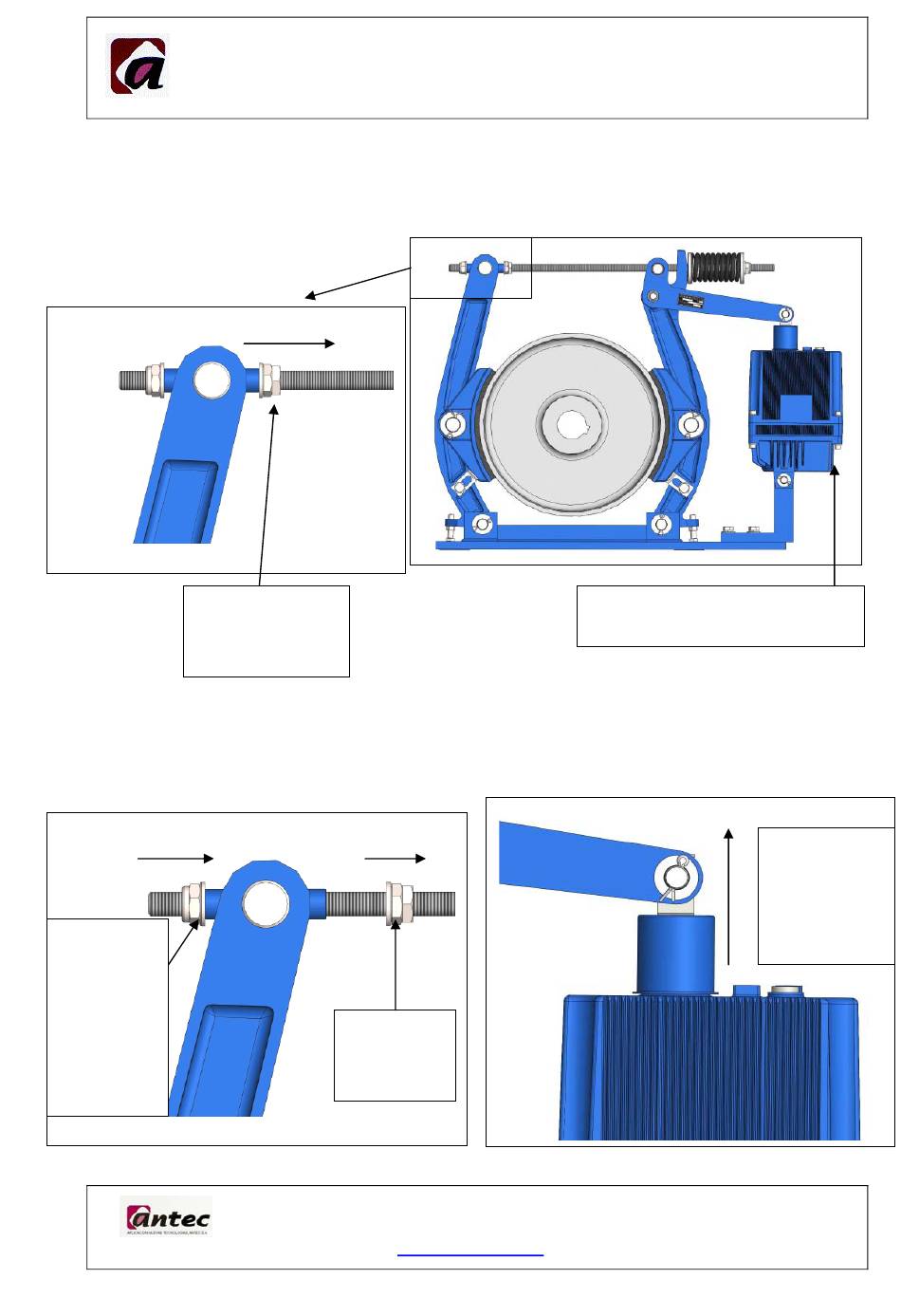

4.3. RESERVE path adjustment.
- With the TURBEL brake lifter without electric power, loosen the locknuts of the steering in
the direction shown.
2-Loosen the
locknuts of the
steering
- After loosening the locknuts, turn the external nut of the steering in the direction shown
(clockwise) in the follow diagram so that the shank of the TURBEL brake lifter rises a distance
"T" that corresponds to the value of the RESERVE PATH for the wear of the linings.
2-Turn the
external
nut of the
steering in
the
direction
shown
(clockwise)
Instructions for assembly, adjustment and maintenance
1-After
loosening
locknuts
T.D.S.: BC.TDS.00015I
Rev.01: January 2012.
www.antecsa.com
1-Remove electric power from
the TURBEL brake lifter.
Page. 24-48
3-Shank of
the TURBEL
brake lifter
rises a
distance "T"
