FUNCTIONAL OVERVIEW
REMKO RVS 100H/150H 60HZ
ABRIDGMENT OF THE MANUAL
Operating the controller µC
The controller has 3 modes:
1. Summer mode (cooling mode)
In cooling mode, the warmer me-
dium temperature is cooled
to the preset cooling temperature.
2. Transition mode (heating mode)
In heating mode, the colder
dium temperature is heated
the preset warmer value.
3. Standby mode (Stand-by)
In the Stand-By mode, safety
equipment is active but no operat-
ing mode is set.
Key " "
Using this key, the current
menu can be resetted.
CAUTION
!
During the initialization of
the controller (after starting
the unit and displaying the
software version, e.g. "H 99")
do not push the key "Prg"
to avoid reprogramming the
controller!
Key " "
This key is used for selecting or
e.g. to open/close the set point
or parameter.
Key " "
Prolonged pressing (5 sec.)
allows to switch between the
operating modes "Cooling"and
"Stand by". Short pressing,
displays the current values of
the temperature probes B1 to
B3 and the pressure trance-
ducer B4. A value can also be
increased.
Key " "
Prolonged pressing (5 sec.)
allows to switch between the
operating modes „Heating"and
„Stand by". Short pressing
displays the current values of
the temperature probes B1 to
B3 and the pressure trance-
ducer B4. A value can also be
reduced.
REMKO GmbH & Co. KG,
Telephone +49 5232 606-0
2
SE

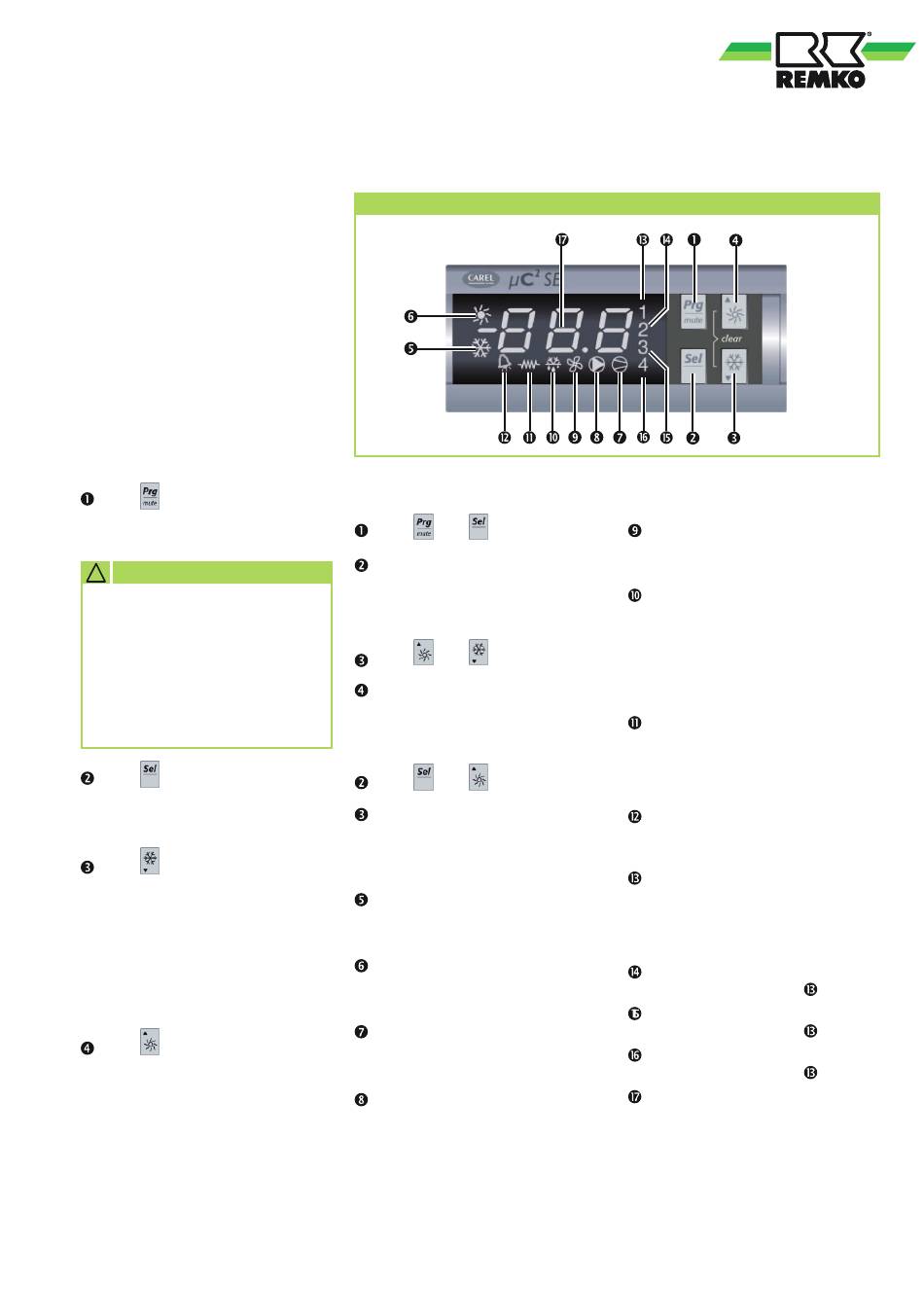

Controller control panel µC
down
me-
up to
Key " and
gether simultaneously
+
Pressing the two keys together
long (5 sec.), the parameter
level is opened after password
is programmed.
Key " and
gether simultaneously
+
Pressing long (5 sec.) and to-
gether allows the acknowledge-
ment of an alarm or operating
hours.
Key " and
+
gether simultaneously in heat-
ing mode
Longer pressing together start a
manual defrost cycle in heating
mode.
Icon cooling mode
The icon displays the selected
cooling mode.
Icon heating mode
The icon displays the selected
heating mode.
Icon "Fan"
The icon lights up, if the con-
denser fan is activated.
Icon "Pump"
The icon lights up, if the circu-
lating pump is activated.
Air conditioning and heating technology
Telefax +49 5232 6 06-2 60
2
SE
" pressed to- Icon Condenser fan
The icon lights up, if the con-
denser fan is activated.
Icon Defrosting status
The icon (lights up) displays
that the defrost cycle in the
finned condenser is active.
" pressed to-
When blinking the control-
ler is calculating the necessary
defrosting time.
Icon Frost protection heating
The LED provides information
about the operating status for
the antifreeze protection heat-
" pressed to-
ing element.
Icon "Alarm"
The LED shows that there is an
alarm.
Icon Compressor 1
The illuminated LED indicates
that compressor 1 is in opera-
tion. The LED blinks if the com-
pressor is in safety mode.
Icon Compressor 2
See description point
Icon Compressor 3
See description point
Icon Compressor 4
See description point
Value display
The value display shows current
values.
